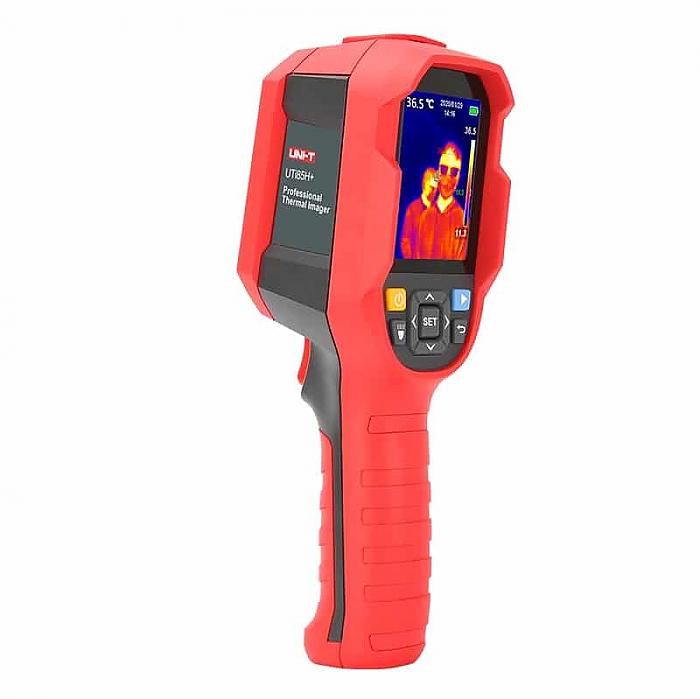

The newly released in May 2020 UTi85H offers superior-high-quality resolution for handheld thermal imaging of body temperatures. Designed for use in public places or workplaces, the UTi85H replaces the previous UTi260H with better specifications and better pricing.
FEATURES:
2.8″ TFT LCD
High/low temperatures measurement
Adjustable emissivity
Storage card
Alarm buzzer
High-temperature alarm
Flashlight
Type-C USB port for charging and data transmission
**USB cable can be connected to the computer
CE Certified
12 Month Warranty
SPECIFICATIONS:
Model : UTi85H+
Sensor : Uncooled focal plane
Temperature range : 30˚C~45˚C
Resolution : 0.1˚C
Accuracy : ±0.5˚C (@25˚C ambient temperature)
Minimum measuring distance : 1m
Temperature measurement response time : ≤500ms (95% of reading)
Pixel of thermal imagery : 4800 (80×60)
Pixel dimensions : 17μm
Swatches : White-hot, red hot, ice blue, rainbow, iron
The bandwidth of infrared spectroscopy : 8~14μm
Field of view (FOV) : 51°(H) × 38°(V)
Instantaneous field of view (IFOV) : 11mrad
Thermal imaging sensitivity : ＜150mk
Frame rate : ＜9Hz
Temperature display : Center temperature measurement and high-temperature tracking (default)
Image format : BMP
Image modes : Thermal image
Display resolution : 320×240
PC analysis software (PC) : √
Data communication : Type-C USB
Auto power off : Selectable (5min, 10min, 30min), 30min auto power off (default)
Battery life : ≧6 hours
Charging time : 4 hours
Image storage : Micro SD card
General Characteristics
Power : A single Li-ion 3.7V/5000mAh 26650 battery
Display : 2.8″ TFT LCD
Product colour : Red & grey
Product size : 236mm x 75.5mm x 86mm
Standard accessories : Manual, Type-C USB cable, 16GB TF card
Standard carton gross weight : 2.2kg
INCLUDES:
1 x UTi85H+,
1 x English Manual
1 x Type-C USB cable
1 x 16GB TF card
1 x 12-month warranty
|
