BAOFENG BFUV89 136-174/400-520MHZ 136-174,400-520MHz
BAOFENG BFUV89 136-174/400-520MHZ
VHF/ UHF DUAL-BAND TWO WAY RADIO
- Frequency Range: 136-174 / 400-520MHz
- Doudle PTT Design
- Dual-Band Display, Dual-Standby
- Up to 128 Channels
- RF Power: 5W/1W
- Call Tone(1750Hz)
- DTMF Encoded
- Emergency Alarm
Specifications:
|
Item number
|
BFUV-89
|
|
General
|
|
Frequency Range
|
136-174 MHz
|
|
400-520 MHz
|
|
Channel No.
|
128
|
|
Channel Spacing
|
|
|
Antenna Impedance
|
50Ω
|
|
Operating Voltage
|
DC 7.4V
|
|
Frequency Stability
|
2.5ppm(-20 º C ~+60 º C )
|
|
Operated Temperature
|
-20 º C ~+60 º C
|
|
Dimension（W x H x D）
|
58 x 110 x 32 mm
|
|
Weight
|
140g（including battery, antenna）
|
|
Transmitter
|
|
Output power
|
5W/1W
|
|
Modulation Mode
|
F3E
|
|
Max Frequency Deviation
|
<5KHz (N)/ <2.5KHz (W)
|
|
Spurious Radiation
|
≤7.5μW
|
|
Adjacent Channel Power
|
≤-65dB(w)/ ≤-60dB(N)
|
|
Radiation
|
<-60dB
|
|
Audio distortion
|
Less than 5%
|
|
SNR (N/W)
|
45dB ≤42dB
|
|
CTSCC/DCS Frequency Deviation (W/N Band)
|
0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow)
|
|
Frequency Error
|
500Hz
|
|
Modulation Sensitivity
|
8-12mV
|
|
Transmitting Current
|
≤- 1500mA
|
|
Receiver:
|
|
Sensitivity
|
< 0.20μ V (12 Db SINAD)
|
|
Audio Power
|
1 W
|
|
Audio distortion
|
5%
|
|
Inter modulation Interference Resistance
|
≥65dB (W), ≥55 dB(N)
|
|
Adjacent Channel Sensitivity
|
≥65dB (W), ≥55 dB(N)
|
|
Spurious Response
|
≥60dB
|
|
Receiving Current
|
≤- 380mA
|

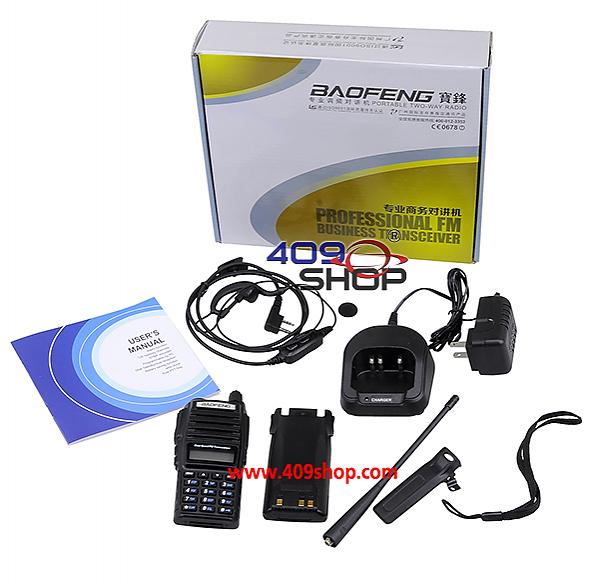

Each Set PACKAGE CONTAIN
1 x BAOFENG BFUV-89 DUAL BAND Radio (136-174/400-520MHZ)
1 x 7.4V 2000mah Li-ion Battery Pack
1 x Dual Band SMA-Female Antenna
1 x Belt Clip
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
