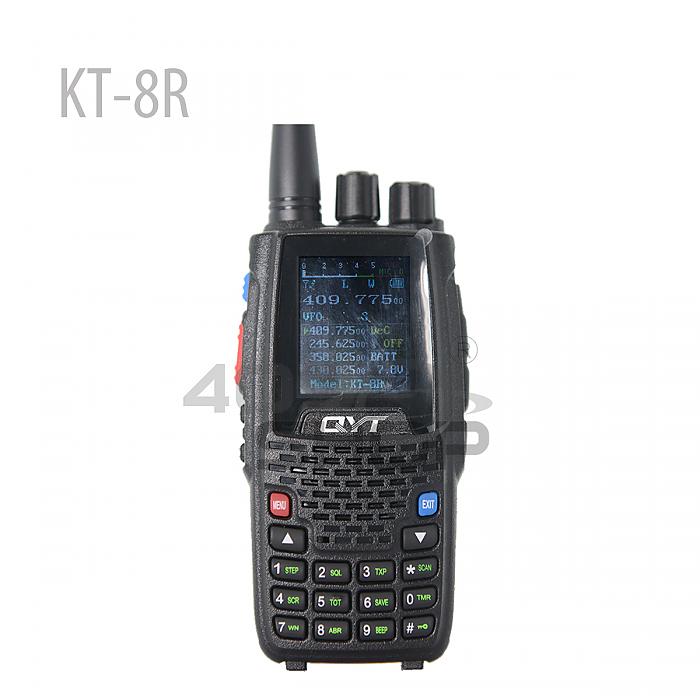

KT-8R

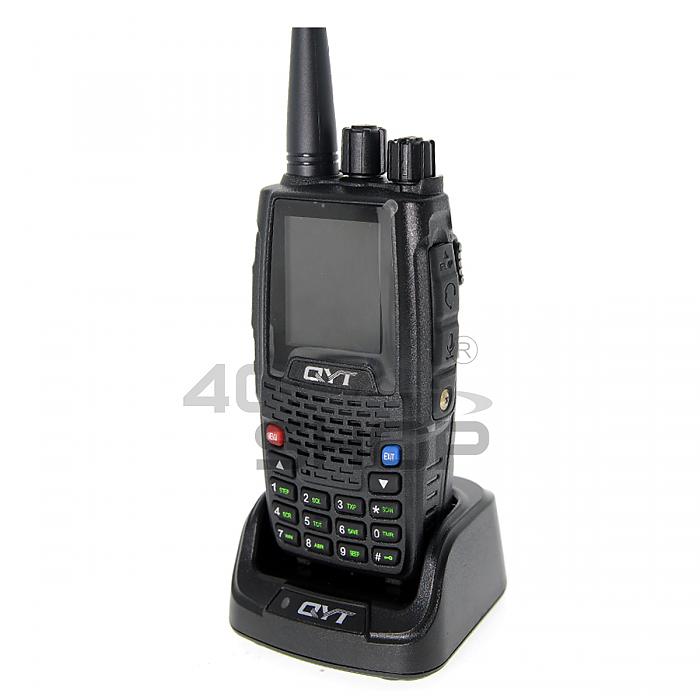

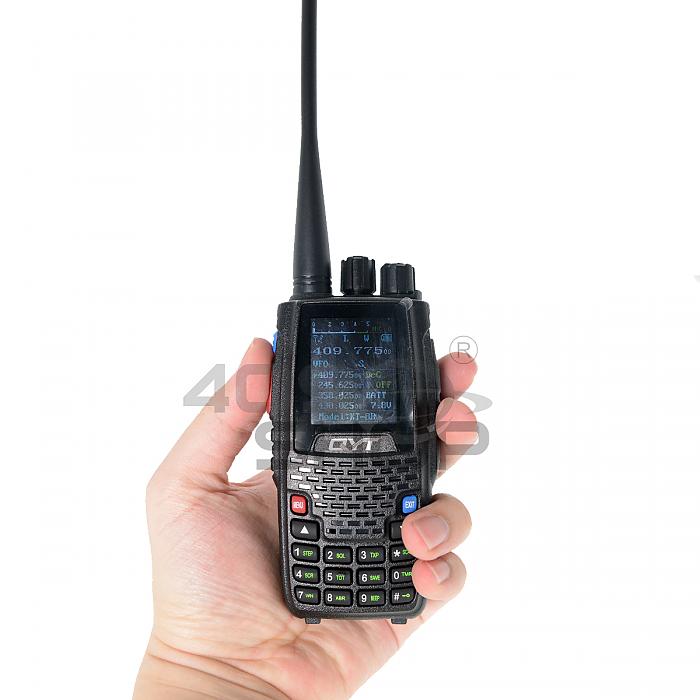

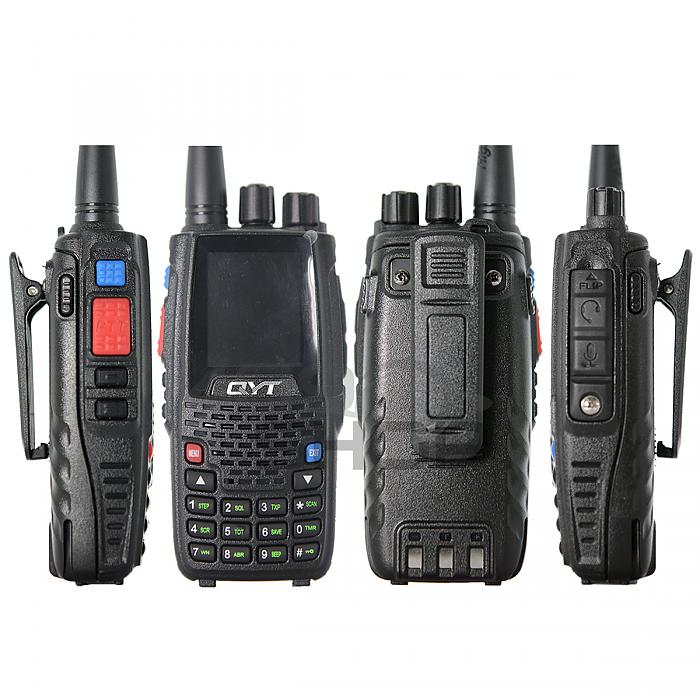

QYT KT-8R Quad Band 5W Handheld Walkie Talkie FM Transceiver
Main features:
Quad frequency
Fashion color screen
High low Output power
Easy operation
English interface
General
Frequency Range
|
VHF: 136-174MHz, 220-260MHz
UHF: 400-480MHz, 350-390MHz
|
Channel Capacity
|
200 Channels
|
Frequency Stability
|
±2.5ppm
|
Channel Step
|
2.5/5/6.2/10/12.5/25KHz
|
Working Voltage
|
7.4V DC±15%
|
Squelch way
|
CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
|
Antenna impedance
|
50ohm
|
Operating Temperature
|
-20~+60℃
|
Dimension(W*H*D)
|
128*62*35mm
|
Weight
|
230g
|
Receiver
|
Wide Band
|
Narrow band
|
Sensitivity
|
≤0.25μν
|
≤0.35μν
|
Channel chioce
|
≥70dB
|
≥60dB
|
Intermodulation
|
≥65dB
|
≥60dB
|
Spurious Rejection
|
≥70dB
|
≥70dB
|
Audio response
|
+1~~3dB(0.3~3KHz)
|
+1~~3dB(0.3~2.55KHz)
|
Signal to noise ratio
|
≥45dB
|
≥40dB
|
Audio distortion
|
≤5%
|
Audio output power
|
≥1W@10%
|
Transmitter
|
Wide Band
|
Narrow band
|
Output power
|
<5W
|
Modulation Mode
|
16KΦF3E
|
11KΦF3E
|
Channel Power
|
≥70dB
|
≥60dB
|
Signal noise ratio
|
≥40dB
|
≥36dB
|
Parasitic harmonic
|
≥60dB
|
≥60dB
|
Audio response
|
+1~~3dB(0.3~3KHz)
|
+1~~3dB(0.3~2.55KHz)
|
Audio distortion
|
≤5%
|
Package Include:
1 x QYT KT-8R Quad Band 5W Handheld Walkie Talkie FM Transceiver

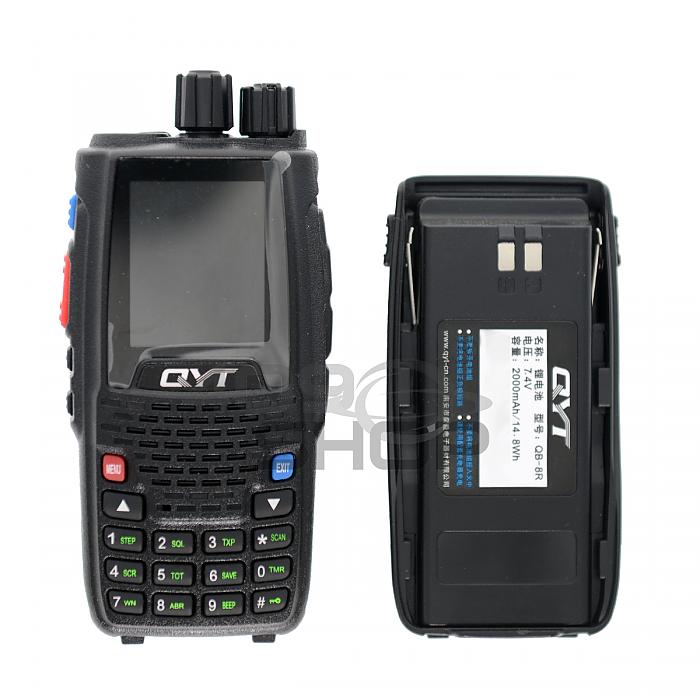

1 x 2000mAh Lithium Battery
1 x Antenna
1 x Belt Clip
1 x Belt
2 x User Manual
1 x Desktop Charger
1 x AC Adapter
