所有商品 » 06.對講機>>分類 » ■ 接收機


編號: IC-R30
名稱: ICOM艾可慕多頻段數字GPS定位手持接收對講機
優惠價: HKD 4,710.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了 0

詳情

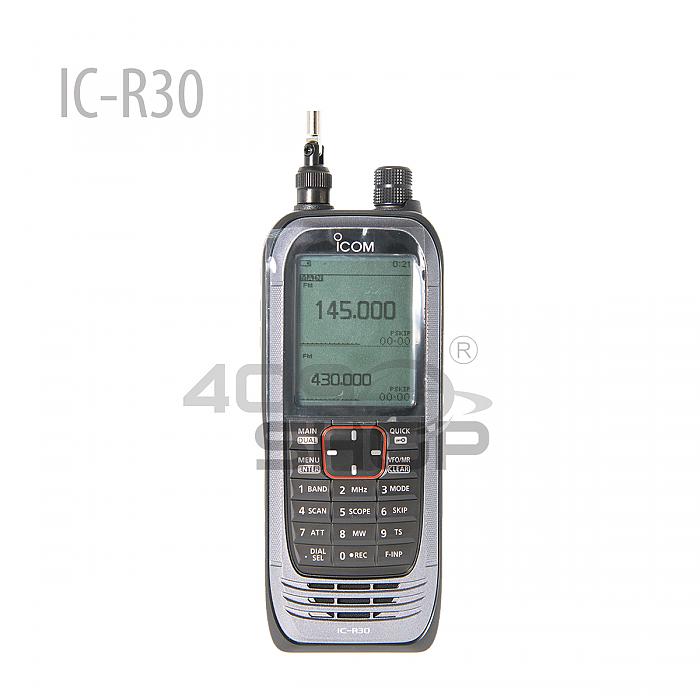

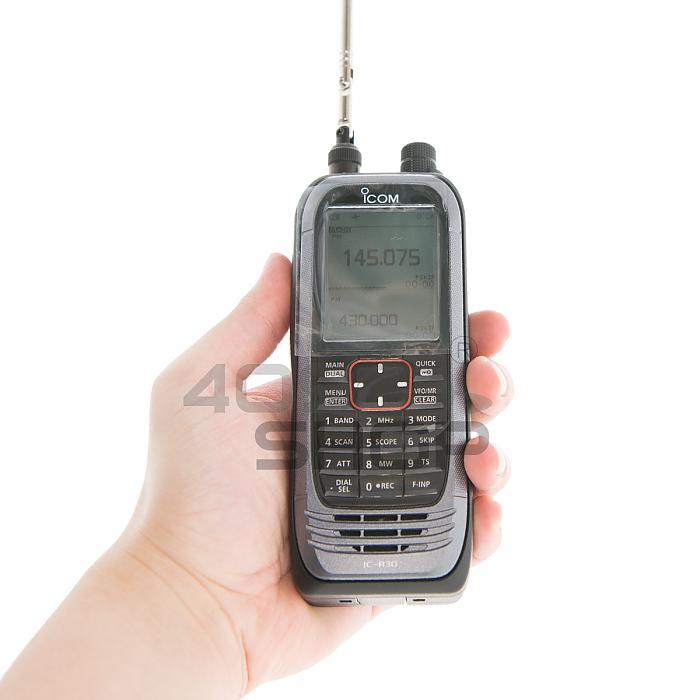

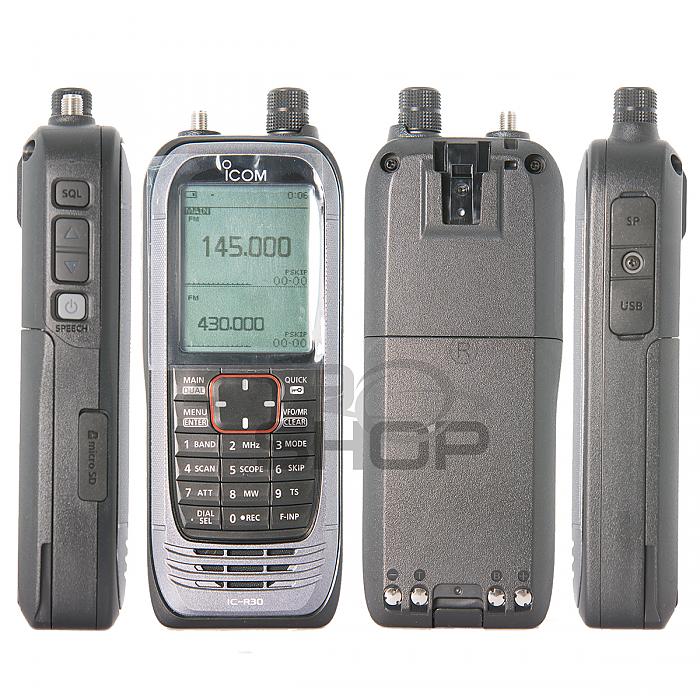

IC-R30

購買前請聯絡客戶服務部查詢存貨 97137424

PayPal付費需要收4%附加費

ICOM艾可慕多頻段數字GPS定位手持接收對講機

描述

Icom IC-R30覆蓋100 kHz至3304.999 MHz（less cellular）。

接收模式包括：FM，WFM，AM，USB，LSB，CW，D-STAR，APCO P25 Phase 1，NXDN，dPMR和DCR（* SSB，CW和數字模式：0.1 MHz-1.3 GHz）。

它包括2000個存儲器，以200通道/秒掃描，NB，RF增益，語音合成器，內置藍牙，頻譜顯示和雙接收，包括模擬/模擬和模擬/數字。它甚至支持雙重記錄。集成的GPS接收器在顯示屏上顯示您當前的位置數據，航線，速度和高度。

GPS數據也可以保存在錄製的音頻文件中。

R30可以在距您當前位置99英里的範圍內列出多達50個電台。（每個電台的位置數據必須在存儲信道中預編程）。多功能USB端口可為R30充電（約5小時），執行數據傳輸，包括內存加載和支持CI-V遠程控制。有microSD卡端口和microUSB端口。它堅固耐用的IP57 [MIL-STD-810G]標準。可選的CS-R30軟件可與Windows 7,8.1和10一起使用。

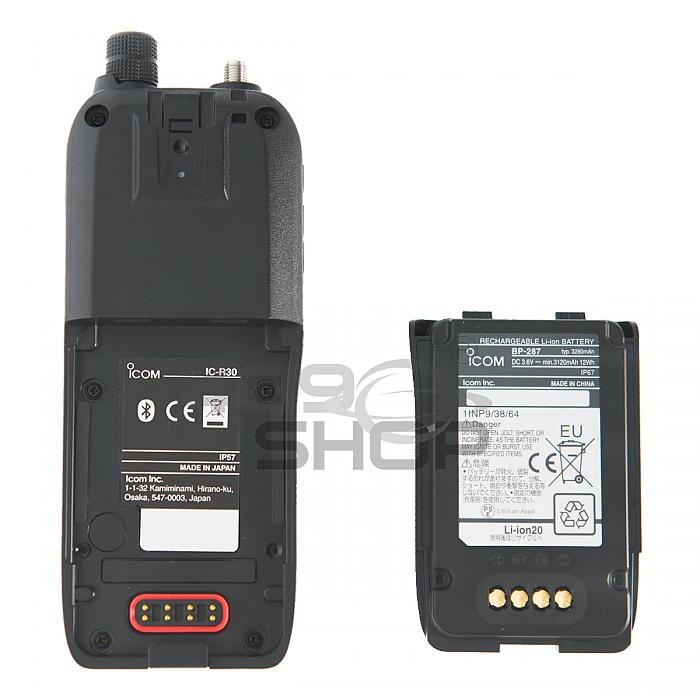

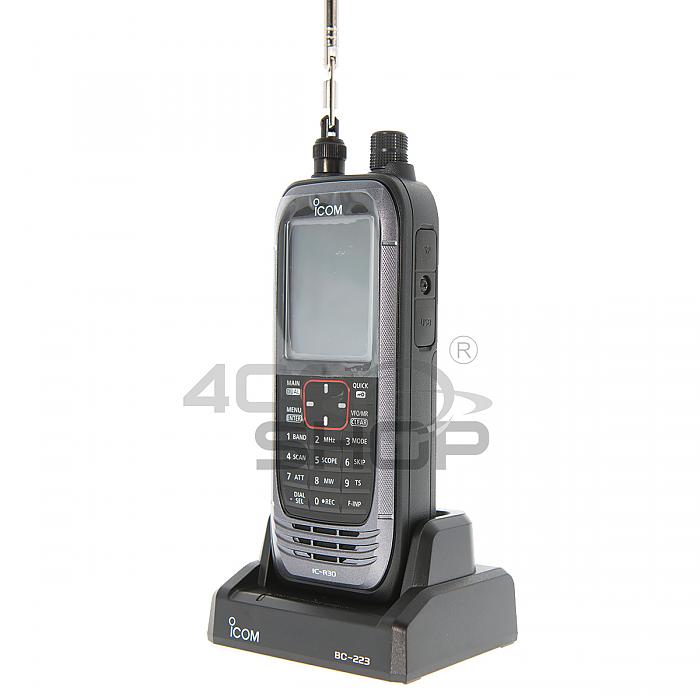

R30配備SMA雙鉸鏈伸縮天線，BP-287鋰離子電池組，皮帶夾，手帶，BC-123SA交流電源適配器，BC-223快速充電嵌入式托盤和基本印刷手冊。可以從Icom的網站下載補充的高級手冊。

R30-20 GOVT型號與IC-R30-00相同，但沒有824-849 / 869-894 MHz蜂窩間隙，可由聯邦政府購買或僅供出口。不適用於在線訂購。請致電並要求政府銷售。

注意：IC-R30不支持中繼系統的接收。因此，它不是監測大多數公共服務（警察/消防）無線電系統的有力選擇。

ICOM IC-R30數字和模擬寬帶通信接收器

特徵：

2000個常規內存通道（名稱為8個字符）

DTCS和CTCSS音調靜噪

VSC（語音靜噪控制）（FM，FM-N，WFM，AM，AM-N）

AFC（自動頻率控制）（FM，FM-N，WFM）

噪聲抑制器（SSB，CW）

ANL（自動噪聲限制器）（AM，AM-N）

射頻增益控制（10個步驟）

ATT功能（3個步驟）

鑰匙鎖功能

監控功能

省電功能（3個步驟）

使用撥號或側面按鈕設置音量或頻率

快捷菜單功能

時鐘

IC-R30
Frequency coverage	USA	0.100000 − 821.999990, 851.000000 − 866.999990, 896.000000 − 3304.999990 MHz* 108.000000 − 520.000000 MHz * Depending on the receiver version. 0.100000–3304.999990 MHz guaranteed.
Frequency coverage	EUR	0.100000 − 3304.999990 MHz 108.000000 − 520.000000 MHz

Mode		≤1300 MHz FM, FM-N, WFM, AM, AM-N, SSB, CW, D-STAR (DV), P25, dPMR, NXDN, DCR ≥1300 MHz FM, FM-N, WFM, AM, AM-N
Mode		FM, AM, D-STAR (DV), P25, dPMR, NXDN, DCR
Antenna impedance		50Ω (SMA)
Number of memory channels		2000 regular (100 groups), 200 auto memory write scan, 100 skip, 300 GPS memories
Frequency stability		Less than ±2.5 ppm (–20 °C to 60 °C; –4 °F to 140 °F )
Tuning steps		0.01, 0.1, 1, 3.125, 5, 6.25, 8.33, 9, 10, 12.5, 15, 20, 25, 30, 50, 100, 125, 200 kHz * May be available, depending on the operating band and mode.
Power supply requirements		3.6 V DC (with BP-287), 5.0 V DC ±5% (USB)
Battery life		8 hours 20 minutes (Approximate) (with BP-287, continuous receive, 100 mW audio, GPS OFF, Bluetooth OFF)
Current drain (at 3.6 V DC)		AF rated power 330 mA typical Receive standby 200 mA typical Power saved 100 mA typical (FM mode single receive, voice recording OFF, GPS OFF, back light OFF)
Dimensions (Projections not included.)		58 (W) × 143 (H) × 30.5 (D) mm 2.3 (W) × 5.6 (H) × 1.2 (D) in
Weight (Approximate)		310 g, 10.9 oz (With antenna and BP-287 battery pack), 200 g, 7.1 oz (main unit)
Operating temperature range		–20 °C to 60 °C, –4 °F to 140 °F
Bluetooth®		Version: Bluetooth® Ver 4.2, Profile: HFP, HSP, SPP
GNSS		GPS, QZSS

Receiver:

		IC-R30
Receiving system		Triple conversion superheterodyne + Down converter (A band except WFM) Double conversion superheterodyne (A band WFM, B band)
Intermediate frequency		1st IF: 266.65/266.7/266.75 MHz 2nd IF: 58.0500 MHz (Except WFM), 10.7000 MHz (WFM) 3rd IF: 0.4500 MHz (Except WFM)
Intermediate frequency		1st IF : 46.3500 MHz 2nd IF : 0.4500 MHz
Sensitivity Available frequencies and modes differ, depending on A band and B band.		SSB/CW (10 dB S/N) 0.495000 - 1.899990 MHz : Less than 0.4 µV 1.900000 - 14.999990 MHz : Less than 0.25 µV 15.000000 - 29.999990 MHz : Less than 0.25 µV 50.000000 - 53.999990 MHz : Less than 0.25 µV 144.000000 - 147.999990 MHz : Less than 0.25 µV 430.000000 - 449.999990 MHz : Less than 0.32 µV AM (10 dB S/N) 0.495000 - 1.899990 MHz : Less than 2.2 µV 1.900000 - 14.999990 MHz : Less than 1.4 µV 15.000000 - 29.999990 MHz : Less than 1.4 µV 118.000000 - 136.999990 MHz : Less than 1.4 µV FM (12 dB SINAD) 28.000000 - 221.999990 MHz : Less than 0.4 µV 222.000000 - 832.999990 MHz : Less than 0.56 µV 833.000000 - 1299.999990 MHz : Less than 0.56 µV 1300.000000 - 1999.999990 MHz : Less than 1.8 µV 2000.000000 - 2699.999990 MHz : Less than 1.8 µV 2700.000000 - 3304.999990 MHz : Less than 18 µV WFM (12 dB SINAD) 76.000000 - 107.999990 MHz : Less than 1.8 µV D-STAR (DV) (1% BER) 28.000000 - 29.999990 MHz : Less than 0.71 µV 50.000000 - 53.999990 MHz : Less than 0.71 µV 144.000000 - 147.999990 MHz : Less than 0.71 µV 430.000000 - 449.999990 MHz : Less than 1 µV 1260.000000 - 1299.999990 MHz : Less than 1 µV NXDN/ dPMR/DCR (1% BER) 136.000000 - 173.999990 MHz : Less than 0.71 µV 350.000000 - 379.999990 MHz : Less than 1 µV 380.000000 - 511.999990 MHz : Less than 1 µV P25 (5% BER) 136.000000 - 173.999990 MHz : Less than 0.4 µV 400.000000 - 469.999990 MHz : Less than 0.56 µV 763.000000 - 832.999990 MHz : Less than 0.71 µV 833.000000 - 869.999990 MHz : Less than 0.71 µV
Selectivity	SSB/CW	More than 1.8 kHz/−6 dB
	AM/FM	More than 12 kHz/−6 dB, Less than 30 kHz/−60 dB (below 1305 MHz), Less than 30 kHz/−40 dB (above 1305 MHz)
	WFM	More than 150 kHz/−6 dB
Audio output power	Internal SP	More than 400 mW (16Ω load, at 10% distortion)
Audio output power	External SP	More than 200 mW (8Ω load, at 10% distortion)

* Cellular bands are blocked in the USA version.

DUALWATCH CAPABILITY:

		B band
		FM/FM-N	AM/AM-N	D-STAR	P25/NXDN/dPMR/DCR
A band	FM (FM/FM-N/WFM)	✔	✔	✔	✔
	AM (AM/AM-N)	✔	✔	✔	✔
	SSB (LSB/USB), CW (CW/CW-R)	✔	✔	−	−
	D-STAR (DV)	✔	✔	†	−
	P25/NXDN/dPMR/DCR	✔	✔	−	−

✔ : Dualwatch, dual recording possible
† : Main band has priority, if two DV signals come in at the same time.
−: Single receive only.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard	MIL-810 G
Standard	Method	Proc.
Low Pressure	500.5	I, II
High Temperature	501.5	I, II
Low Temperature	502.5	I, II
Temperature Shock	503.5	I-C
Solar Radiation	505.5	I
Rain Blowing/Drip	506.5	I, III
Humidity	507.5	II
Salt Fog	509.5	–
Dust Blowing	510.5	I
Immersion	512.5	I
Vibration	514.6	I
Shock	516.6	I, IV

Also meets equivalent MIL-STD-810 -C, -D and -E.

Ingress Protection Standard

Dust and Water

IP57 (Dust-protection and Waterproof* protection)
* One meter depth for 30 minutes.

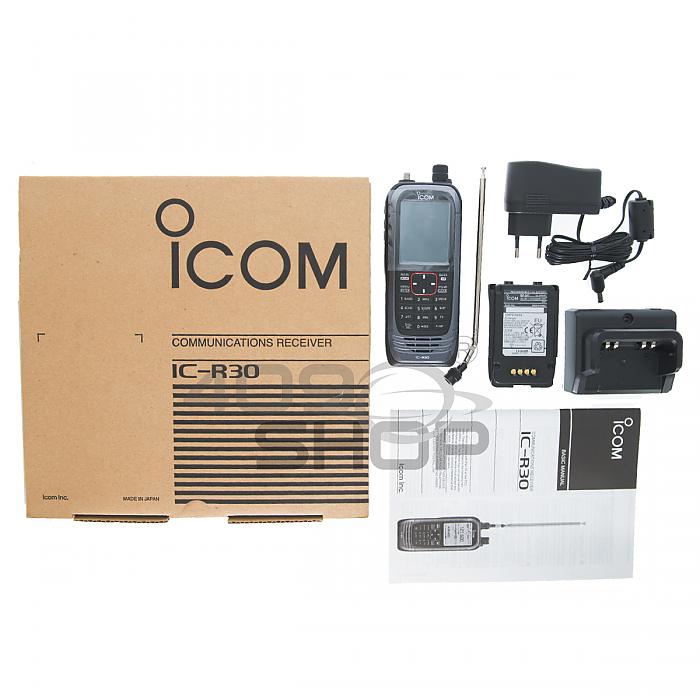

Package Include:

1 x ICOM IC-R30 Digital and Analog Wideband Communications Receiver We Sell: (EURO VERSION)
1 x Antenna
1 x Li-ion battery pack
1 x Desktop Charger
1 x AC Adaptor
1 x Belt clip
1 x Sling
1 x Users manual
