48-50-T1

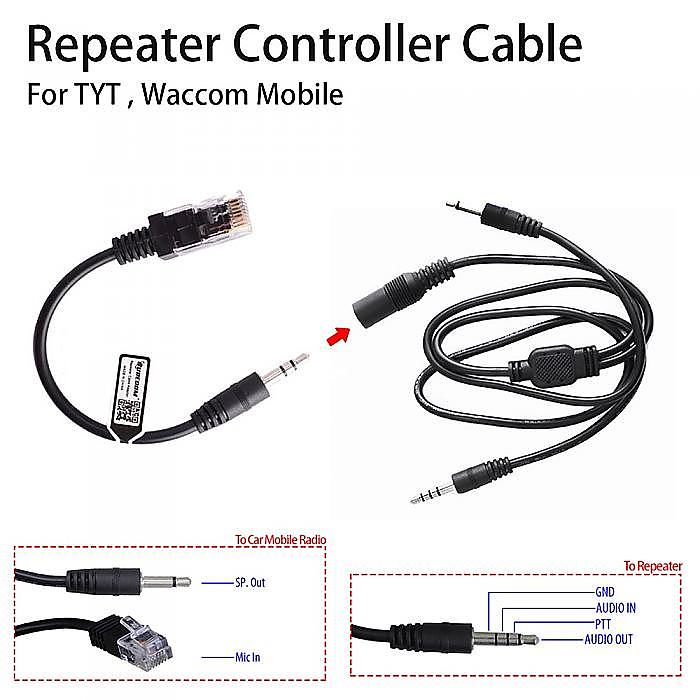

SURECOM 轉發器線 適用於 TYT WACCOM MOBILE
| 3.5mm x17mm 4 pole Plug |
3.5mm x15mm 2 pole Plug |
8Pin Mic Plug to Radio (PIN) |
Connect :
SR-112,SR-628,SR-328,SR-629 |
Connect :
Radio S.P OUT
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
| GND |
GND |
GND |
|
|
N/A |
N/A |
N/A |
N/A |
N/A |
| Audio in (for Radio Speaker out) |
Speaker Out |
|
|
|
N/A |
N/A |
N/A |
N/A |
N/A |
| P.T.T. ON/OFF |
|
|
PTT |
|
N/A |
N/A |
N/A |
N/A |
N/A |
| Audio out ( audio level for Mic ) |
|
|
|
Mic in |
N/A |
N/A |
N/A |
N/A |
N/A |
總長：80CM
中繼器連接器插頭：3.5mm x 17mm
移動無線電揚聲器：3.5mm x 15mm
對講機麥克風插針：8pin
適合型號：
TYT：TH-9000，TH-9000D
WACCOM：WM-9000，WM-9000D
產品內含：
1 x 48- 中繼台接駁寫頻線
1x 50-T1 轉發器線 適用於 TYT WACCOM MOBILE
查詢 請致電客戶服務熱線/Whatsapp: 97137424 / 電郵:cshk@409shop.net

|
