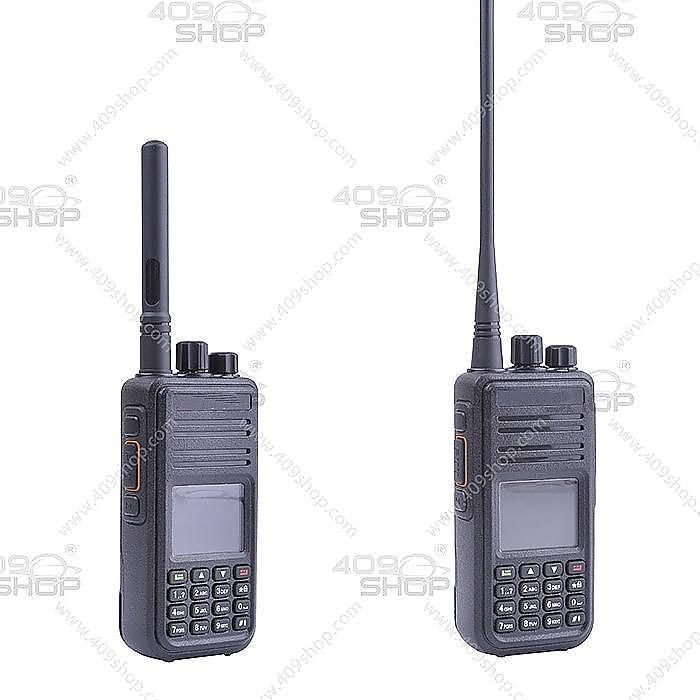

P8668V
Function SAME as TYT MD380 VHF
(100% MADE BY TYT)
Main Function:
Use TDMA digital which doubles the number of users on a single licensed
12.5KHz channel comply with DMR digital protocol
Private call, group call, all call
CTCSS / DCS, Auto scan
English Voice Prompt
Wide narrow selection
High low power
Emergency Alarm
Time out timer
Encryption
| ■Remote kill/stun/activate |
■Priority Scan |
| ■Voice Prompt |
■Complying with digital protocol ETSI TS102 361-1.-2.-3 |
| ■Power-on protection |
■Compatible with Mototrbo Tier I&II |

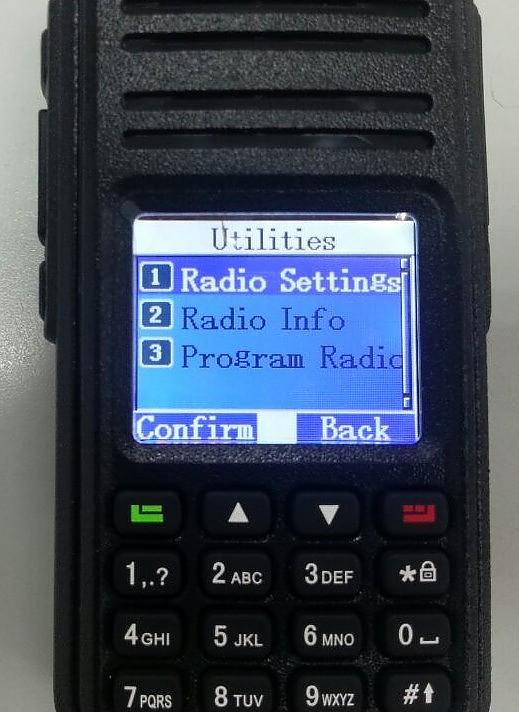

| ■Color LCD display |
■DTMF decoding and encoding |
| ■Text messages in digital mode |

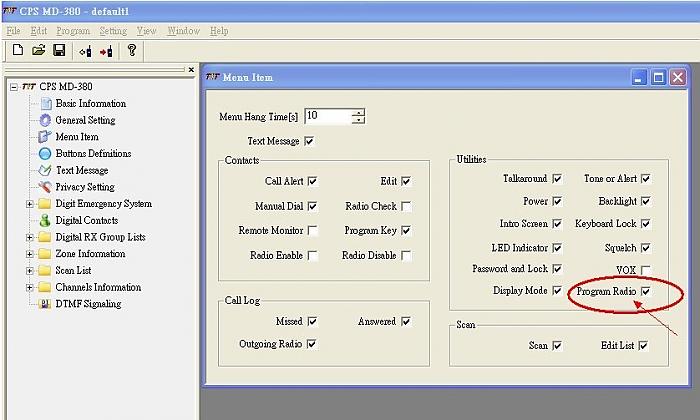

■Updated software available for new features |
| ■Encryption |
■Analog ue and Digital mode Combined |
| ■Updated to 1000 channels |
■Programming multifunction key |
| ■Private call,group call and all call |
■Built-in CTCSS/DCS |
Specifications:
Technical parameters
|
Item number
|
P8668
|
|
General
|
|
Frequency Range
|
136-174MHz
|
|
Channel No.
|
1000
|
|
Antenna impedance
|
50Ω
|
|
Antenna
|
High and gain
|
|
Operating Voltage
|
7.5 vDC
|
|
Operating Temperature
|
-30~+60
|
|

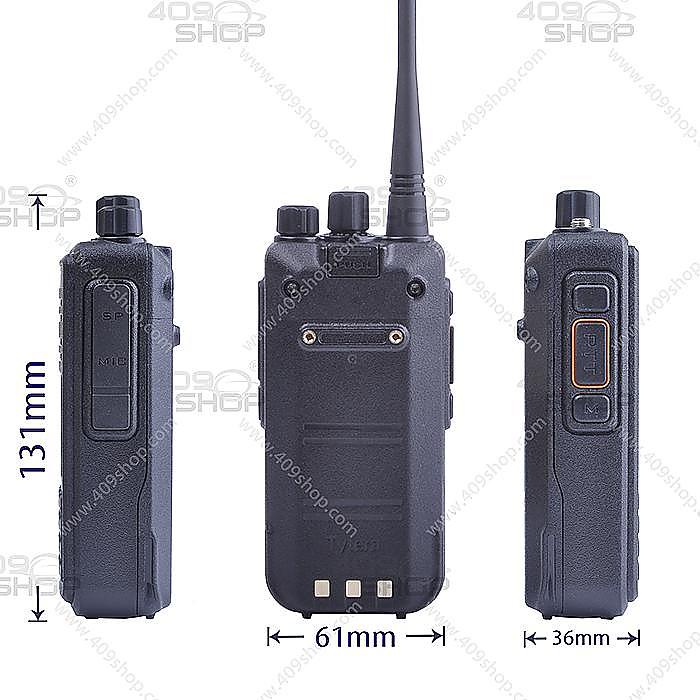

Dimension(W x H x D)
|
131x61x38mm
|
|

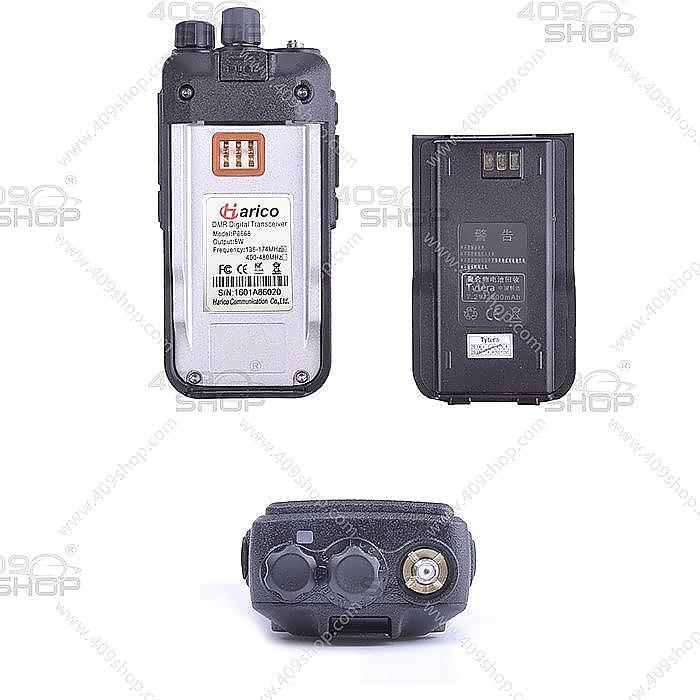

Battery
|
2000mAh Li-ion
|
|
Transmitter
|
|
Output power
|
≥5W(H)
≥1W(L)
|
|
Vocoder type
|
TDMA
|
|
Frequency Stability
|
1.0 PPM
|
|
Adjacent channel power
|
≤-60dB
|
|
Spurious Radiation
|
Antenna:9KHz-1GHz ,≤ -36dBm
1GHz-12.75GHz ,≤-30dBm
|
|
Hum and noise
|
-40dB 12.5KHz
|
|
4 FSK Digital Mode
|
12.5KHz(data only):7k60FXD
12.5KHz(data+voice)7k60FXE
|
|
Receiver
|
|
Digital sensitivity
|
0.3uV/-117.4dBm(BER 5%)
0.22uV/-100dBm(BER 1%)
|
|
Audio distortion
|
3%(TYPE)
|
|
Audio power
|
1W
|
|
Autio response
|
=1dB-3dB
|
|
Adjacent Channel Selectivity
|
Tia603C:65dB,ETSI:60dB
|
|
Spurious
|
Tia603C:75dB,ETSI:70dB
|
|
Co Channel rejection
|
≥-12 dB
|
|
PACKAGE CONTAIN
1 x HARICO P8668 VHF 136-174MHZ Digital Mobile Radio(DMR)
1 x Antenna
1 x Li-ion Battery
1 x Belt Clip
1 x User"s Manual
1 x Desktop Charger
1 x AC Adapter (Depends on your country)
1 x Free Earpiece
(***對講機只供出口用/Radio for Export Only***)
查詢 請致電客戶服務熱線/Whatsapp: 97137424 / 電郵:cshk@409shop.net

1 x Desktop Charger
1 x AC Adapter (Depends on your country)
1 x Free Earpiece
