S760U+5-801-035
KIRISUN S760U 400-470MHZ DIGITAL dPMR Radio + Antenna
KIRISUN S760U The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
UHF TWO WAY RADIO
Product Features:
Excellent noise suppression, digital voice clarity
Digital / analog compatible analog devices to ensure a smooth transition
Ten million sets of figures key voice encryption, safe and secure
Digital intelligent signaling, richer management scheduling function
Function Description:
1, FDMA frequency division multiple access technology, spectrum efficiency improved several times;
2, support digital mode, analog mode
3, the digital voice encryption
4, a variety of call mode, all call, group call, a call, emergency call
5, PTT default contact (group) call
6, the emergency alarm (single, joint) 3 × 4 modes
7, Stun, activate
8, the working status query
9, the digital power saving mode

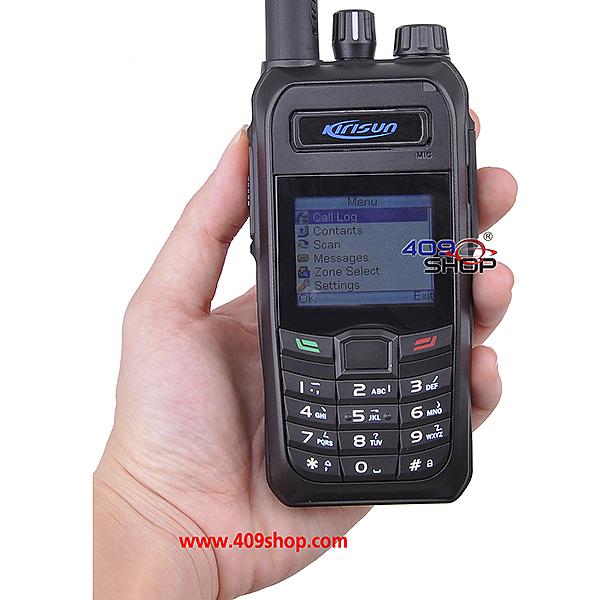

10, 1.8-inch large LCD display, support icon display for easy SMS messages, call records read;
11, low power, signal strength, battery capacity display, real-time understanding work status
12, call history, call records can be displayed 20;
13, address book function, support 50 contacts;
14, you can edit SMS function, the default shortcut short message
15, manual dialing
16, calls and SMS ringing Tips
17, firmware programming mode (software upgrades);
General features:
1, in English operation interface
2, the emission of high and low power selectable
3, three-color LED indicates sending, receiving, scanning and other state
4, channel lock, keypad lock function
5, whisper function
6, sub audio / digital tone
7, the end eliminate
8, the monitoring function
9, mixed scanning
10, TOT emission limit protection
11, the calculator
|
Technical parameters |
S760 |
|
General Specifications |
|
Frequency |
400—470MHz |
|
Number of channels |
256 |
|
Channel spacing |
6.25kHz/12.5kHz |
|
Operating Temperature |
-25℃~+55℃ |
|
Antenna Impedance |
50Ω |
|
Microphone impedance |
2.2kΩ |
|
Frequency Stability |
±2.5ppm |
|
Battery (standard configuration) |
Model: KB-760, lithium battery
DC 7.5V ± 20% 1500mAh |
|
Volume (length × width × thickness) |
116 mm x54 mm x30 mm |
|
Weight |
136 g (main unit only) / 243 g (with battery and antenna host) |
|
Receiving part |
|
Sensitivity |
≤-121dBm |
|
Adjacent Channel Selectivity |
≥60 |
|
Intermodulation Immunity |
≥60dB |
|
Spurious response |
≥60dB |
|
Audio output power |
≥ 1000mW (distortion is less than 5%, 16Ω load) |
|
Audio response |
Analog: +2 / -6 dB |
|
Transmitting section |
|
RF Power |
4W (High) / 1W (low) |
|
Modulation |
Digital: 4FSK Analog: 16KΦF3E/11KΦF3E |
|
Clutter and harmonic |
≤-36dBm |
|
SNR |
Analog:> 35 dB |
|
Audio Distortion (300-3000Hz) |
≤3% |
|
Modulation limiting |
Digital: ± 2.5kHz |
|
Modulation characteristics |
Analog: +2 / -6 dB |
Photo will have chromatic aberration compared with the product
FREE FOR Antenna

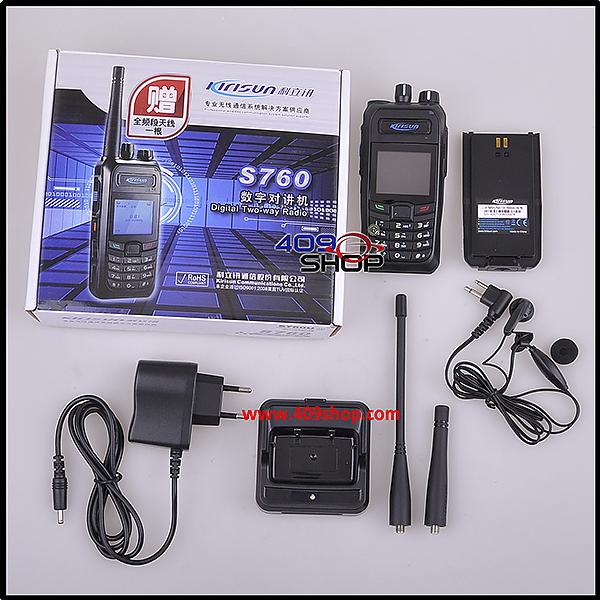

- 1 x KIRISUN S760U VERSION (400—470MHz) DIGITAL TWO WAY RADIO
- 1 x 7.4V 1500mAh Li-ion Battery Pack
- 2 x UHF SMA-Female Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger +(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free

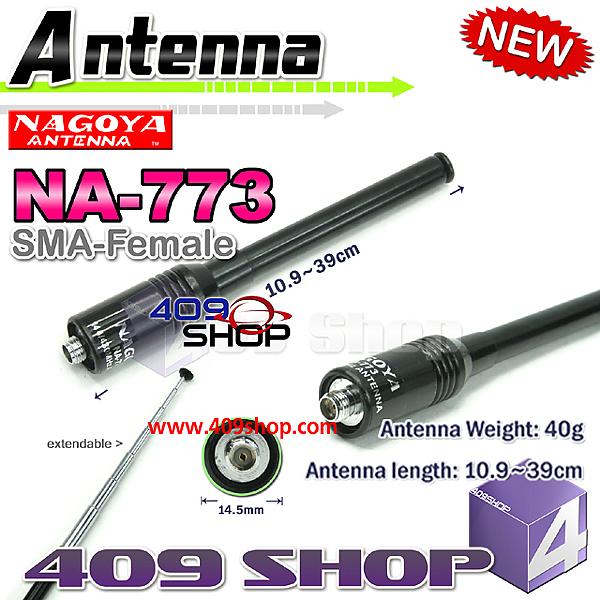

- 1 x 5-801-035 NAGOYA NA-773 SMA-FEMALE 144/430MHZ TELESCOPIC ANTENNA
