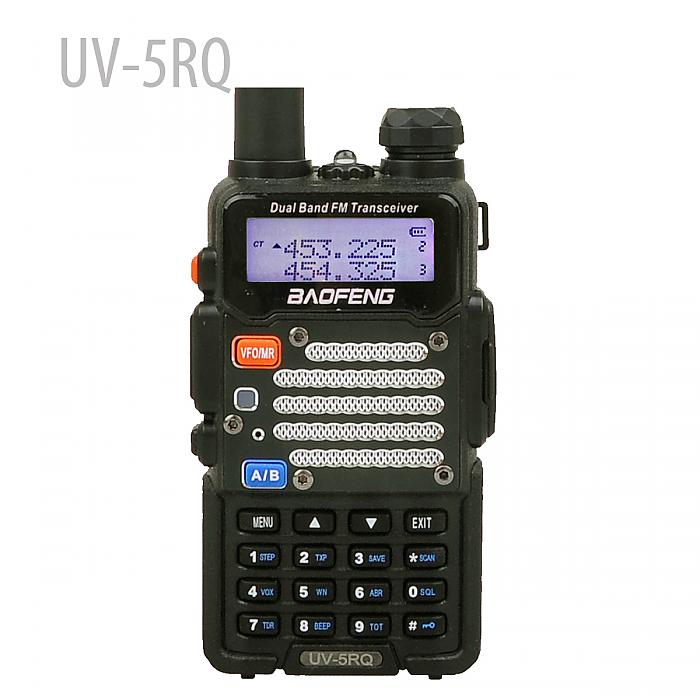

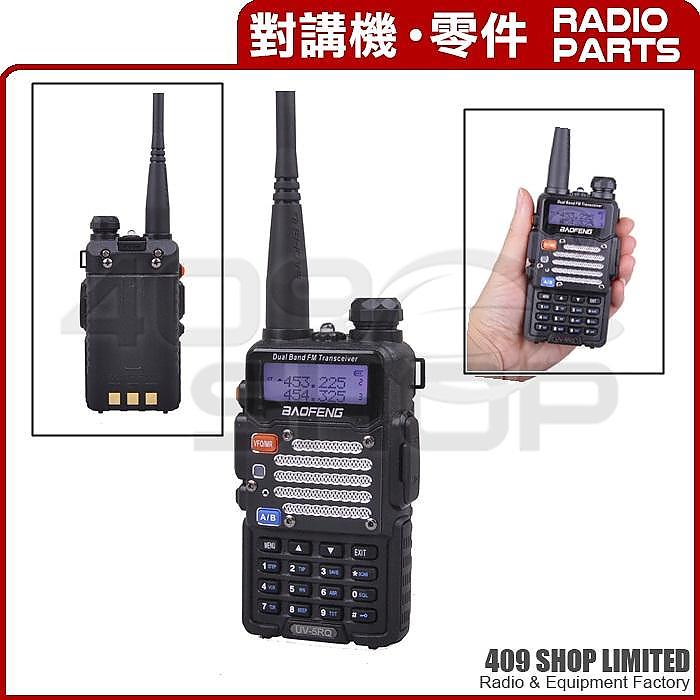

UV-5RQ
寶鋒黑色 UV5RQ 對講機 Dual Band Radio VHF136-174 400-480MHZ 對講機
BAOFENG UV-5R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF DUAL-BAND TWO WAY RADIO
-
Frequency Range: 136-174 / 400-480MHZ
-
Dual-Band Display, Dual Freq. Display, Dual-Standby
-
Output Power: 4 /1Watts
-
128 Channels
50 CTCSS and 104 CDCSS
-
Built-in VOX Function
-
1750Hz Brust Tone
-
FM Radio (65.0MHz-108.0MHz)
-
LED Flashlight
-
Large LCD Display
-
High/Low RF Power Switchable
-
25KHz/12.5KHz Switchable
-
Emergency Alert
-
Low Battery Alert
-
Battery Saver
-
Time-out Timer
-
Keypad Lock
-
Monitor Channel
-
Channel Step: 2.5/5/6.25/10/12.5/25KHz
-
ROGER SET
BAOFENG UV-5R Compare Products
| ■ Dual band, dual display, dual standby |
■ A/B band independent operation |
| ■ 128 groups channels storage |
■ Shortcut menu operation mode |
| ■ VFO & Memory channels scan |
■ Emergency Alarm |
| ■ Tri-color background light selectable |
■ 0~9 grades VOX selectable |
| ■ PTT & ANI ID |
■ FM radio |
| ■ Voice companding |
■ 50 CTCSS/104 DCS |
| ■ |
■ PC programmable |
| ■ Wide/Narrow Band(25kHz/12.5kHz) |
■ Transmitter time-out timer(TOT) |
| ■ High/Low TX power selectable |
■ Busy channel lock-out(BCLO) |
| ■ |
■ |
| ■ |
■ |
Specifications:
| Item number |
UV-5RQ |
| General |
| Frequency Range |
65-108MHz(FM Receive only) |
| 136-174MHZ and 400-480MHZ (TX/RX) |
| Channel No. |
128 |
| Frequency Stability |
±2.5ppm |
| Antenna |
High gain DualBand antenna |
| Antenna Impedance |
50Ω |
| Operating Voltage |
DC 7.4V |
| Mode of operation |
Simple or semi-duplex |
| Dimension（W x H x D） |
100 x 52 x 32 mm |
| Weight |
250g（including battery, antenna） |
| Transmitter |
| Output power |
4W / 1W (Max 5W) |
| Modulation Mode |
16kΦF3E / 11kΦF3E |
| Maximum deviation |
＜5kHz(Wide) / ＜2.5kHz(Narrow) |
| Spurious Radiation |
＜7μW |
| Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
| Pre-emphasis characteristics |
6dB |
| Current |
≤1.6A(5W) |
| CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
| Intermediation sensitivity |
8-12mv |
| Intermediation distortion |
＜10% |
Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female
相片可能出現色差
- 1 x 寶豐UV5RQ 黑色136-174/400-480MHZ 對講機
- 1 x 7.4V 1800mah 鋰電池
- 1 x SMA-FEMALE 天線
- 1 x 背夾
- 1 x 英語手冊
- 1 x 充電器（100V～240V）+（2PIN美國或英國3PIN或2PIN歐元或2PIN澳洲）
- 1 x PTT聽筒免費
|
