BFF8-PLUS-UU
BAOFENG BFF8PLUS-UU 136-174/400-520Mhz RADIO
BAOFENG BFF8-PLUS-UU The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF DUAL-BAND TWO WAY RADIO
- Frequency Range: 136-174 / 400-520MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 4 /1Watts
- 128 Channels
50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (65.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- High/Low RF Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- ROGER SET
|
BAOFENG BFF8-PLUS Compare Products
|
|
|
■ Dual band, dual display, dual standby
|
■ A/B band independent operation
|
|
■ 128 groups channels storage
|
■ Shortcut menu operation mode
|
|
■ VFO & Memory channels scan
|
■ Emergency Alarm
|
|
■ Tri-color background light selectable
|
■ 0~9 grades VOX selectable
|
|
■ PTT & ANI ID
|
■ FM radio
|
|
■ Voice companding
|
■ 50 CTCSS/104 DCS
|
|
■
|
■ PC programmable
|
|
■ Wide/Narrow Band(25kHz/12.5kHz)
|
■ Transmitter time-out timer(TOT)
|
|
■ High/Low TX power selectable
|
■ Busy channel lock-out(BCLO)
|
|
■
|
■
|
|
■
|
■
|
Specifications:
|
Item number
|
BFF8-PLUS-UU
|
|
General
|
|
Frequency Range
|
65-108MHz(FM Receive only)
|
|
136-174MHZ and 400-520MHZ (TX/RX)
|
|
Channel No.
|
128
|
|
Frequency Stability
|
±2.5ppm
|
|
Antenna
|
High gain DualBand antenna
|
|
Antenna Impedance
|
50Ω
|
|
Operating Voltage
|
DC 7.4V
|
|
Mode of operation
|
Simple or semi-duplex
|
|
Dimension（W x H x D）
|
100 x 52 x 32 mm
|
|
Weight
|
250g（including battery, antenna）
|
|
Transmitter
|
|
Output power
|
4W / 1W (Max 5W)
|
|
Modulation Mode
|
16kΦF3E / 11kΦF3E
|
|
Maximum deviation
|
＜5kHz(Wide) / ＜2.5kHz(Narrow)
|
|
Spurious Radiation
|
＜7μW
|
|
Adjacent Ch. power
|
≤-65dB(Wide) / ≤-60dB(Narrow)
|
|
Pre-emphasis characteristics
|
6dB
|
|
Current
|
≤1.6A(5W)
|
|
CTCSS/DCS deviation
|
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
|
|
Intermediation sensitivity
|
8-12mv
|
|
Intermediation distortion
|
＜10%
|
Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
Photo will have chromatic aberration compared with the product

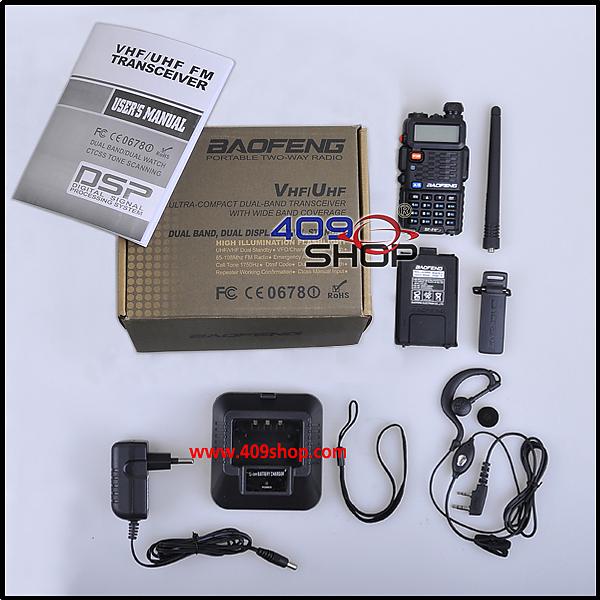

- 1 x BAOFENG BFF8-PLUS-UU RADIO (VHF136-174Mhz UHF 400-520Mhz)
- 1 x 7.4V 1800mah Li-ion Battery Pack
- 1 x DUAL BAND SMA-FEMALE Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free
