編號: 1x WUV5R-Y w/3800+6-034
名稱: 1x WUV5R-Y Yellow Radio Upgrade 3800mah Battery+USB Cable

優惠價: HKD 450.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


WUV5R-Y w/3800+6-034

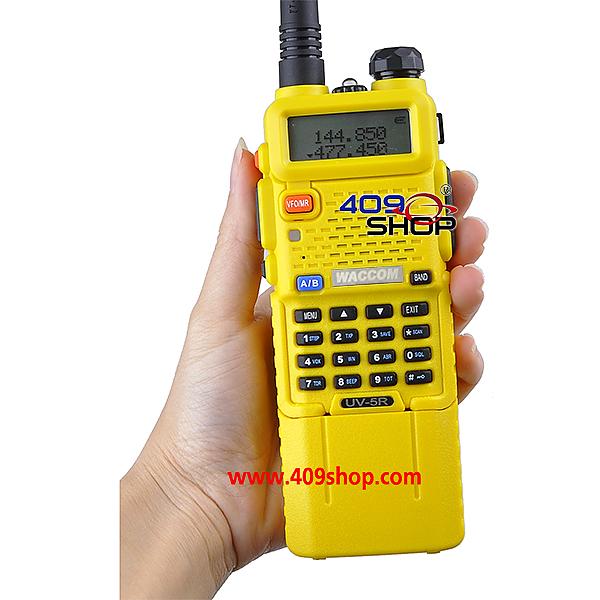

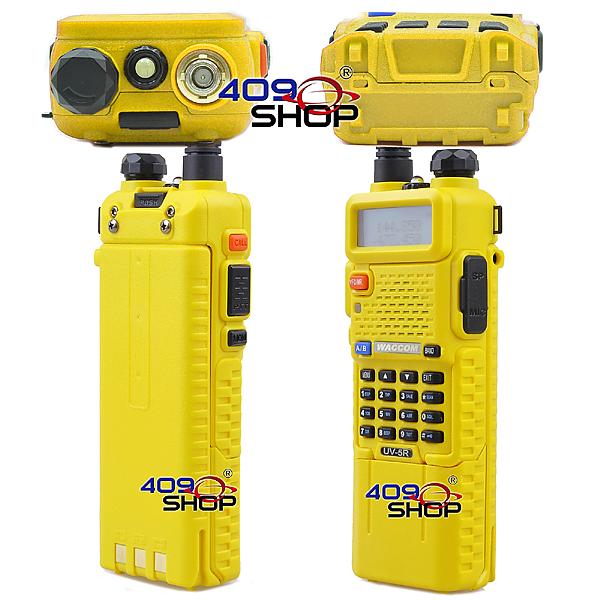

NEW WACCOM WUV-5R (YELLOW) VHF 136-174Mhz UHF 400-480Mhz Radio

(with Upgrade Version 3800Mah Battery)

+USB Cable

Features:


WACCOM WUV-5R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability

VHF/UHF DUAL-BAND TWO WAY RADIO:

  • Frequency Range: 136-174 / 400-480MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 5Watts
  • 128 Channels
  • 50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Burst Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • High /Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET






■ Dual band, dual display, dual standby ■ A/B band independent operation
■ 128 groups channels storage ■ Shortcut menu operation mode
■ VFO & Memory channels scan ■ Emergency Alarm
■ Tri-color background light selectable ■ 0~9 grades VOX selectable
■ PTT & ANI ID ■ FM radio
■ Voice commanding ■ CTCSS/DCS
■ PC programmable
■ Wide/Narrow Band(25kHz/12.5kHz) ■ Transmitter time-out timer(TOT)
■ High/Low TX power selectable ■ Busy channel lock-out(BCLO)


Specifications:



Item number WUV-5R-YELLOW
General
Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-480MHZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain Dual Band antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
DimensionW x H x D 100 x 52 x 32 mm
Weight 250gincluding battery, antenna
Transmitter
Output power VHF 5W,UHF4W
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation 7μW
Adjacent Ch. power -65dB(Wide) / -60dB(Narrow)
Pre-emphasis characteristics 6dB
Current 1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion 10%


Photo will have chromatic aberration compared with the product

Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female

FREE FOR USB Cable

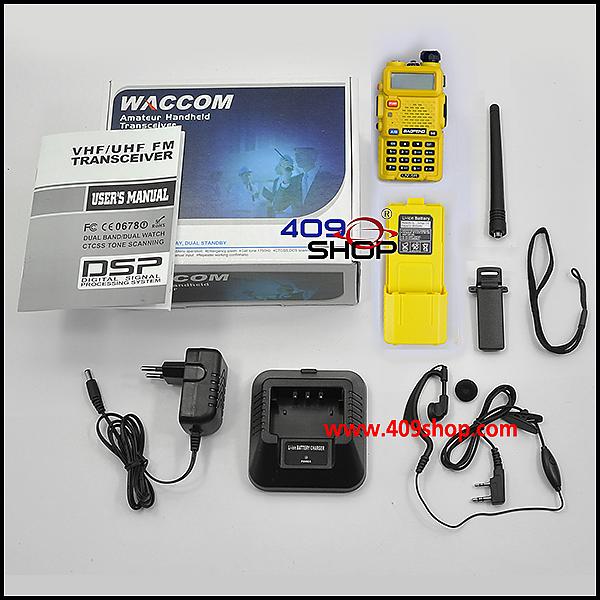

Each Set PACKAGE CONTAIN
  • 1 x WACCOM WUV-5R (Yellow)(VHF136-174Mhz UHF 400-480Mhz)

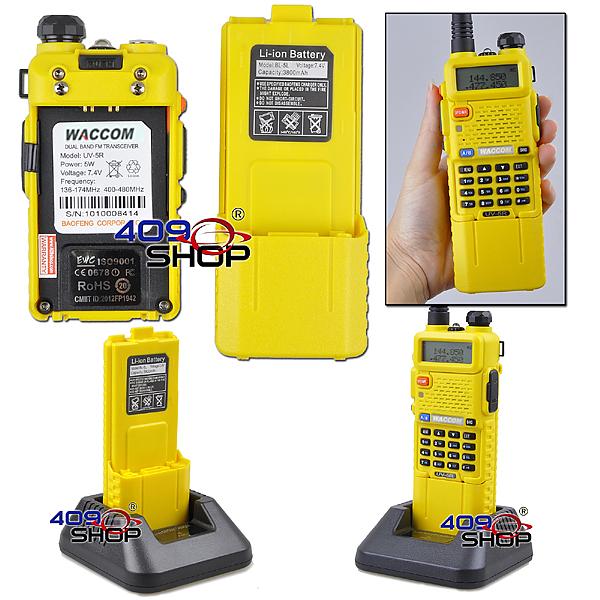

  • 1 x 7.4V 3800mah Li-ion Battery Pack
  • 1 x Antenna 136-174/400-470Mhz
  • 1 x Belt Clip
  • 1 x ENG Manual
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x PTT Earpiece

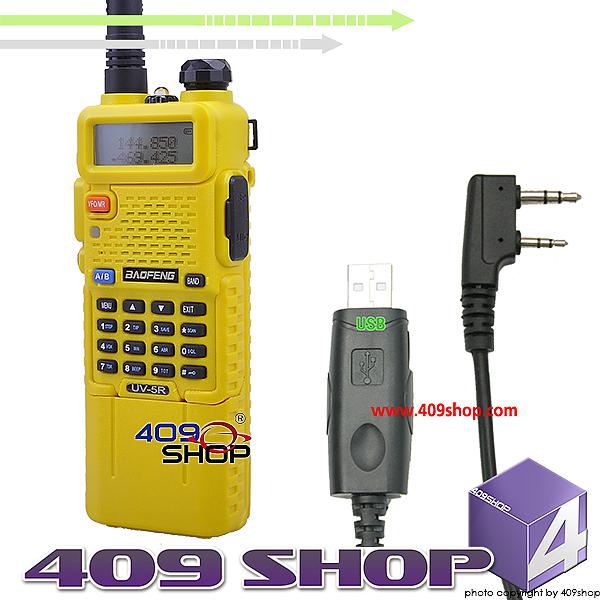

  • 1 x USB Cable
  • 1 x Software CD


KI







WACCOM WUV-5R VHF/UHF
