THUVF8D-R-UU
TYT THUVF8D-RED-UU 136-174/400-520MHZ Dual Band Radio
Features:
VHF/UHF Dual Band, Dual Display, Dual Standby
Dual Band, Dual display, dual standby
2 x 128 channels to store
FM Radio receiver and 20 channels
Channel spacing selectable (25/12.5 kHz)
Handsfree VOX function
50 CTCSS tones and 210 DCS codes
Scan of frequencies with CTCSS/DCS
Low battery vocal indication
SOS emergency function
Shift repeater function
ANI Function
DTMF & Remote kill/stun function
Talkaround function
Reverse frequency function
Compander & 8 groups Scrambler
|
Item number
|
THUVF8D-RED-UU
|
|
General
|
|
Frequency Range
|
136-174MHz
|
|
400-520MHz
|
|
Channel No.
|
2 x 128
|
|
Frequency Stability
|
±2.5ppm
|
|
Antenna
|
High gain antenna
|
|
Antenna Impedance
|
50Ω
|
|
Operating Voltage
|
DC 7.2V (Rechargeable LI-ion Battery)
|
|
Mode of operation
|
Simple or semi-duplex
|
|
Dimension（W x H x D）
|
110 x 58 x 32 mm
|
|
Weight
|
633g（including battery, antenna）
|
|
Transmitter
|
|
Output power
|
VHF:5W/1W UHF:4W:0.5W
|
|
Modulation Mode
|
16kΦF3E / 11kΦF3E
|
|
Maximum deviation
|
＜5kHz / ＜2.5kHz
|
|
Spurious Radiation
|
＜7.5μW
|
|
Adjacent Ch. power
|
≤-65dB/ ≤-60dB
|
|
Pre-emphasis characteristics
|
6dB
|
|
Current
|
≤1.6A(5W)
|
|
CTCSS/DCS deviation
|
0.5±0.1kHz / 0.4±0.1kHz
|
|
Intermediation sensitivity
|
8-12mv
|
|
Intermediation distortion
|
＜5%
|
|
Receiver
|
|
RF Sensitivity
|
-122dBm(12 dB SINAD)
|
|
Audio power
|
1W
|
|
Audio Distortion
|
<10%
|
|
Intermediation
|
>/60 dB >/55 dB
|
|
Selectivity
|
>/65 dB >/60 dB
|
|
Spurious Rejection
|
>/65 dB
|
|
Blocking
|
>/85 dB
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
Photo will have chromatic aberration compared with the product

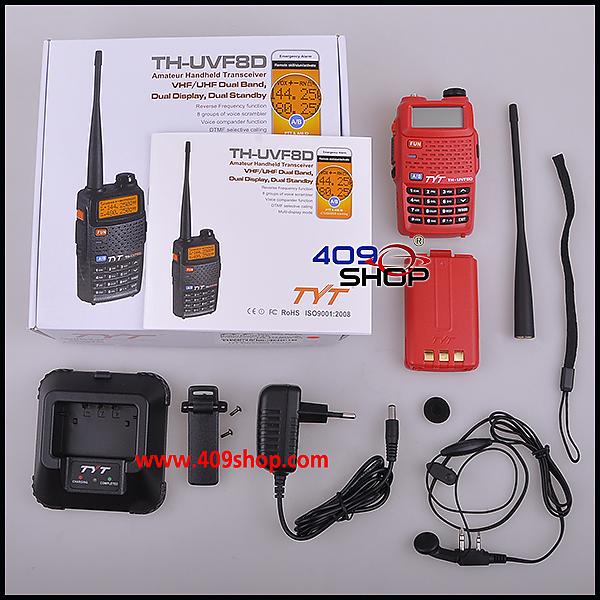

- 1 x NEW TYT THUVF8D-RED-UU Dual Band Radio (136-174/400-520MHZ)
- 1 x 7.4V 1600mAh Battery Li-ion Battery Pack (RED)
- 1 x Dual Band SMA-Male Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free
