編號: 1 x MYTQ2V-Y
名稱: 1 x MYT MYTQ2V (Yellow) VHF 136~174MHZ HANDHELD RADIO對講機

優惠價: HKD 365.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


MYTQ2V-Y

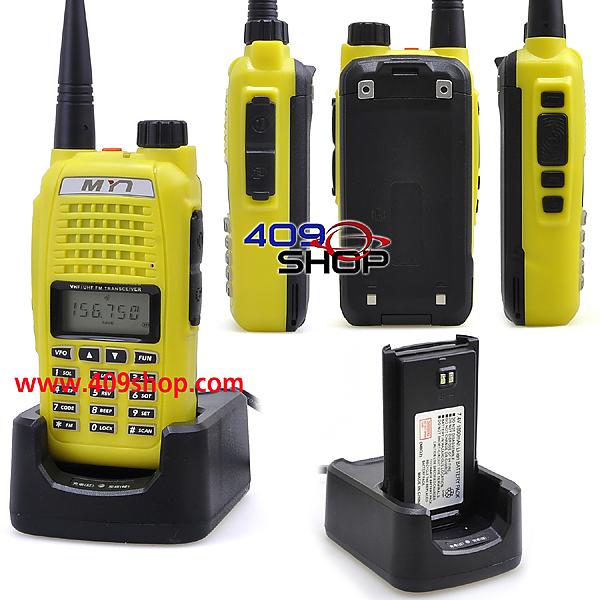

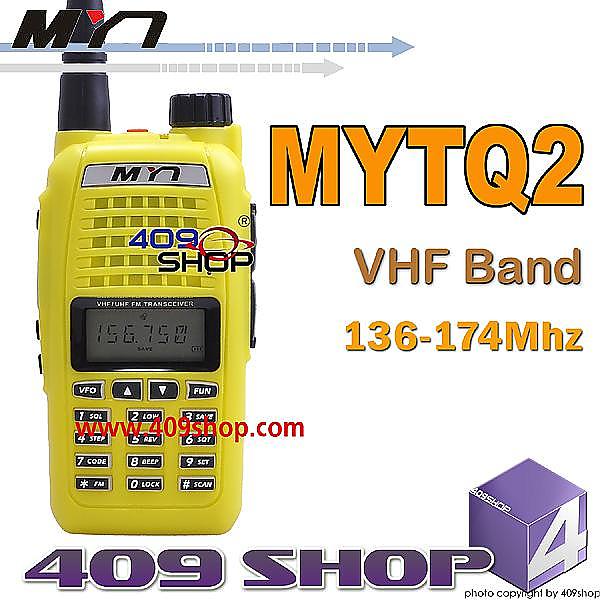

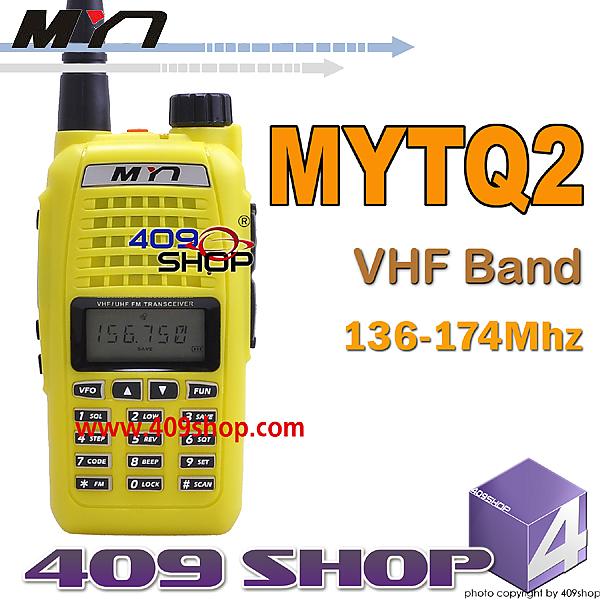

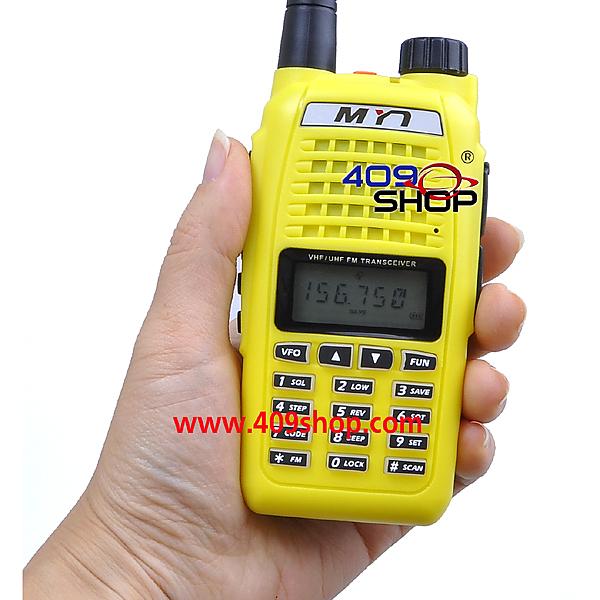

MYT MYTQ2V (Yellow) VHF 136~174MHZ HANDHELD RADIO

Features

CTCSS/DCS
Scan
Backlight
FM radio
Keypad lockout
High/low power selective
BCL function
Chinese and English voice prompt
VOX function
TOT function

Specifications

model

MYT-Q2

General Specifications

Power Supply

7.5V DC ±20%

Operating Temperature

-25℃~ + 55℃

Number of Channels

128

Dimensions

120*57*30mm

Weight

215g

Transmitter Specifications

Frequencies - Full Band Split

VHF: 136MHz~174MHz

Frequency Stability(-25 to 55, 25 Ref)

2.5ppm

Power Output

5W

Modulation Limiting

±≤5KHz@25KHz

FM Hum & Noise

45dB@25KHz,

Conducted/Radiated Emission

-36dBm < 1GHz, -30dBm > 1GHz

Adjacent Channel Power

 -65dB @ 25KHz,

Audio Response (300-3000Hz)

+3 ~ -3 dB

Audio Distortion

< 5%

Receiver Specifications

Frequencies - Full Bandsplit

VHF: 136MHz~174MHz

Sensitivity(12 dB SINAD)EIA

0.25μV@12.5KHz/25KHz typical

Intermodulation EIA

60 dB

Adjacent Channel Selectivity

65 dB@20/25KHz

Spurious Rejection

70 dB

Rated Audio

1W

Audio Distortion @ Rated Audio

5%

Audio Response (300-3000Hz)

+3 ~ -3 dB

Conducted Spurious Emission

-58 dBm<1 GHz, -47 dBm>1GHz


**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.

Earpiece / mic type : MT Plug type
Antenna : SMA -Female

Photo will have chromatic aberration compared with the product

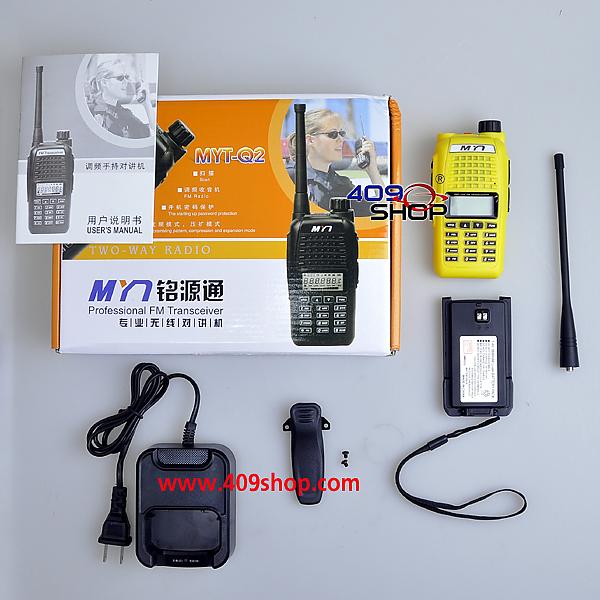

Each Set PACKAGE CONTAIN
  • 1 x MYT MYTQ2V (Yellow) VHF 136-174Mhz Radio
  • 1 x 7.4V 1800mah Li-ion Battery Pack.
  • 1 x Sma-Female 136-174Mhz Antenna
  • 1 x Wrist Strap
  • 1 x Belt Clip
  • 1 x English Manual
  • 1 x Earpiece
  • 1 x Desktop Charger *
    *100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)
