BAOFENG UV-3R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF DUAL-BAND TWO WAY RADIO
-
Frequency Range: 136-174 / 400-470MHz
-
Dual-Band Display, Dual Freq. Display, Dual-Standby
-
Output Power: 2 Watts
-
99 Channels + 1 Emergency Channel
-
50 CTCSS and 104 CDCSS
-
Built-in VOX Function
-
1750Hz Brust Tone
-
FM Radio (87.0MHz-108.0MHz)
-
LED Flashlight
-
Large LCD Display
-
Hight /Low Power Switchable
-
25KHz/12.5KHz Switchable
-
Emergency Alert
-
Low Battery Alert
-
Battery Saver
-
Time-out Timer
-
Keypad Lock
-
Monitor Channel
-
Channel Step: 5/6.25/12.5/25KHz
|
Specifications:
| Frequency Range |
VHF136-174 UHF 400-470MHz (Dual Band) |
| Operating Voltage |
3.7V |
| Operating Temperature |
-30c~+60c |
| Battery |
(Li-ion) |
| Antenna Impedance |
50 ohm |
| Dimension(without antenna&battery(L×W×H) |
52*87*29(mm) |
| Weight ( with antenna & + battery) |
about 150g |
|
Transmitter
|
| RF Power Output |
UHF:2W |
| FM Noise |
65dB |
| Adjacent Channel Power |
45dB/42dB |
|
Receiver
|
| Spurious response rejection |
60dB |
| Receiver current |
400mA |
| Standby Current |
75mA |
Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female
Free For Comport Prog Cable

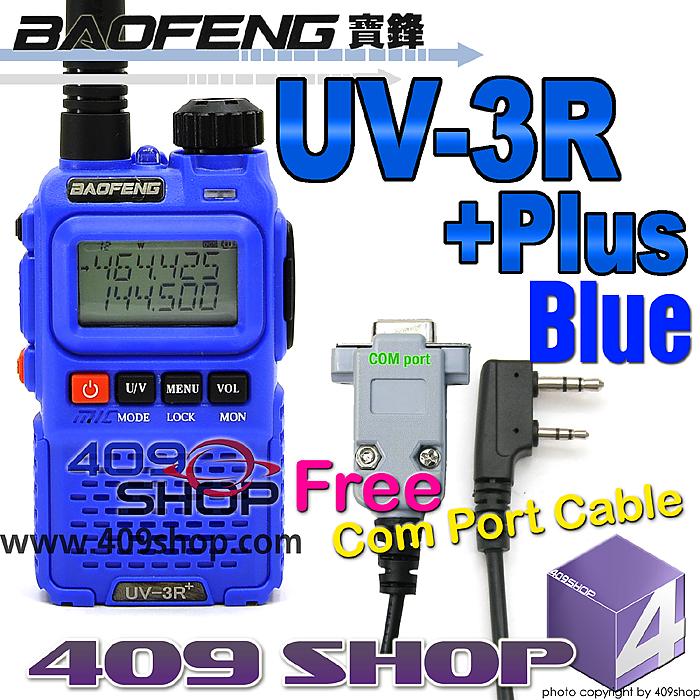

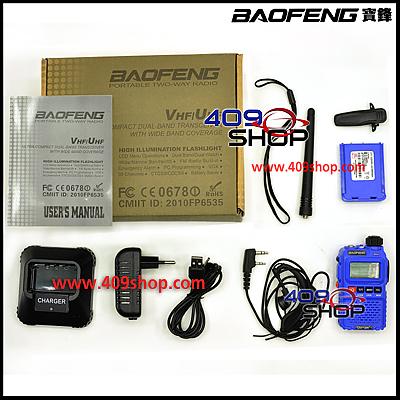

- 1 x BAOFENG UV-3R+Plus Blue (VHF136-174 / UHF 400-470Mhz Dual Band)
- 1 x 3.7v 1500mah Li-ion Battery
- 1 x SMA-Female Antenna.
- 1 x Belt Clip.
- 1 x ENG Manual
- 1 x Desktop Charger with Cable /PSU (Provide PSU plug for your Country)
- 1 x PTT Earpiece for free
- 1 x WRIST STRAP

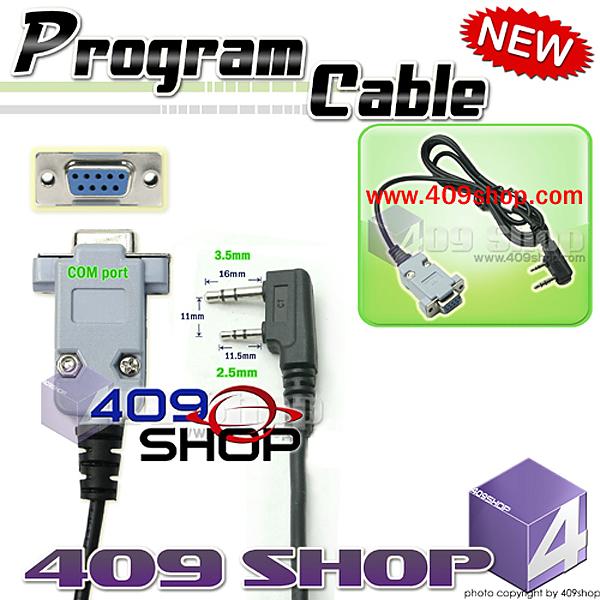

- 1 x 6-004A Comport Prog Cable
K
|
UV-3R PLUS + ENGLISH MANUAL DOWNLOAD |
|
|
|
