UV-3R Plus x10+1x 1020-0002
10x BAOFENG UV-3R+Plus UHF/VHF radio
+ 1x LIGHT JACKET
(please choose the LIGHT JACKET size)

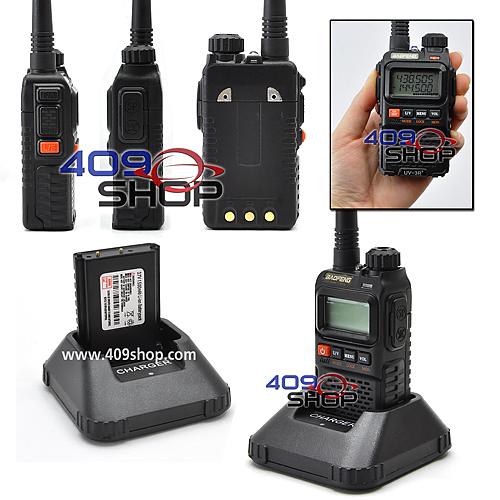

BAOFENG UV-3R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF DUAL-BAND TWO WAY RADIO
- Frequency Range: 136-174 / 400-470MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 2 Watts
- 99 Channels + 1 Emergency Channel
- 50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (87.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- Hight /Low Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 5/6.25/12.5/25KHz
Specifications:
Frequency Range |
VHF136-174 UHF 400-470MHz (Dual Band) |
Operating Voltage |
3.7V |
Operating Temperature |
-30c~+60c |
Battery |
(Li-ion) |
Antenna Impedance |
50 ohm |
Dimension(without antenna&battery(L×W×H) |
52*87*29(mm) |
Weight ( with antenna & + battery) |
about 150g |
Transmitter
|
RF Power Output |
UHF:2W |
FM Noise |
65dB |
Adjacent Channel Power |
45dB/42dB |
Receiver
|
Spurious response rejection |
60dB |
Receiver current |
400mA |
Standby Current |
75mA |
Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female
Free For
LIGHT JACKET
(please choose the LIGHT JACKET size)
|
S
|
M
|
L
|
XL
|
XXL
|
胸圍
|
44吋(inch)
|
46吋(inch)
|
48吋(inch)
|
50吋(inch)
|
52吋(inch)
|
腳圍
|
42吋(inch)
|
44吋(inch)
|
46吋(inch)
|
48吋(inch)
|
50吋(inch)
|
衫長
|
27吋(inch)
|
28吋(inch)
|
29吋(inch)
|
30吋(inch)
|
31吋(inch)
|
袖長(領邊量)
|
29吋(inch)
|
30吋(inch)
|
31吋(inch)
|
32吋(inch)
|
33吋(inch)
|

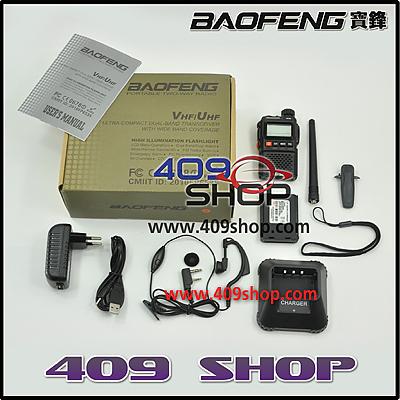

- 10 x BAOFENG UV-3R+Plus (VHF136-174 / UHF 400-470Mhz Dual Band)
- 10 x 3.7v 1500mah Li-ion Battery
- 10 x SMA-Female Antenna.
- 10 x Belt Clip.
- 10 x ENG Manual
- 10 x Desktop Charger with Cable /PSU (Provide PSU plug for your Country)
- 10 x PTT Earpiece for free
- 10 x WRIST STRAP
- 1 x LIGHT JACKET 1020-0002 (please choose the LIGHT JACKET size)
|
UV-3R PLUS + ENGLISH MANUAL DOWNLOAD |
|
|
|
