編號: KG-699E V + S002B
名稱: Wouxun KG-699E VHF 136-174Mhz Radio + Adaptor 對講機

優惠價: HKD 755.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


KG-699E V + S002B

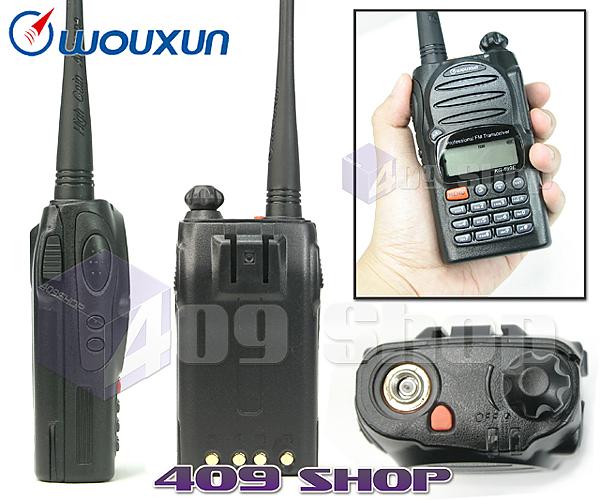

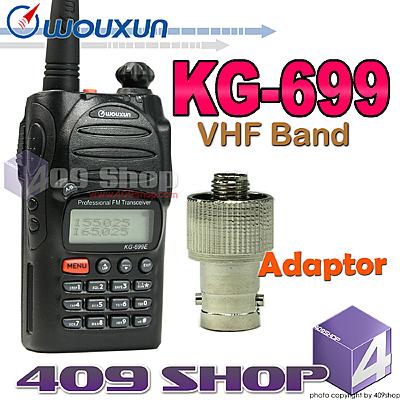

Wouxun KG-699E

VHF 136-174Mhz Radio

+ Adaptor




Main Features
. VHF Dual frequencies
. Dual display and standby modes
. 128 memory channels
. 1 group scrambler
. Channel name edit available
. Output power VHF 5W/1W
. High/Low power can changeable by top key
. VOX (Level adjustable)
. DTMF encoding and DTMF decoding
. 105 groups D.C.S/50 groups CTCSS
. DCS/CTCSS of RX and TX can be set respectively
. Reverse frequency function
. Busy channel lockout
. Distant alarm
. ANI (Caller ID)
. Multi scan mode (TO/CO/SE)
. Inspection, monitor, stun, kill and emergency alarm
. All calls, group calls and selective calls
. Calling ring and ring overtime auto answer
. Multi silent mode (QT/QTADT/QTXDT)
. Channel steps (5K/6.25K/10K/12.5K/25K)
. Wide/Narrow bandwidth selection (25KHz/12.5KHz)

Features
. 5/2 tone and 1750Hz burst tone
. Priority scan
Remark: If the radio with above optional features, it will available 200
memory channels and 1 group scrambler.

Super Features
. Digital FM radio with frequency display
. Three color LCD backlight display
. Frequency/Channel/Frequency+Channel display mode
. Voice guide (Chinese / English)
. Side key programmable
. Menu/Channel reset
. Keyboard lock (Auto/Manual)
. Wireclone function
. Programmable by computer
. Input frequency by using keypad
. PC software disable frequency input
. Come with 1300mAh Li-ion battery and intelligent charger

Technical indicators:
KG699 E Technical Specification

Frequency Range VHF: 136-174mHZ
Channel Capacity 128(200)
Channel Spacing 25/12.5KHz
Maximum Deviation ±5KHz to 25KHz ±2.5KHz to 12.5KHz
Frequency Stability ±2.0ppm
Operating Voltage 7.4V
Operating Temperature -30℃~+60℃
Battery 1300mAh(Li-ion)
Standby Current 50mA
Antenna Impedance 50Ω
Dimension(without antenna&battery(L×W×H) 105×62×39(mm)
Weight(with antenna&battery) 260g
Transmitter
RF Power Output VHF:5W/1W
Modulation 16KфF3E/11KфF3E
Spurious and Harmonious -36dBm<1GHz -30dBm>1GHz
FM Noise 40dB
Adjacent Channel Power 70dB/60dB
Audio Distortion ≤5﹪
Receiver
Sensitivity(12dB SINAD) 0.25μV
Selectivity 60dB
Intermodulation 60dB
Spurious Response Rejection 65dB/70dB
Audio Power Output 500mW
Audio Distortion ≤3﹪(0.5W)

Free For



Adaptor



Free For

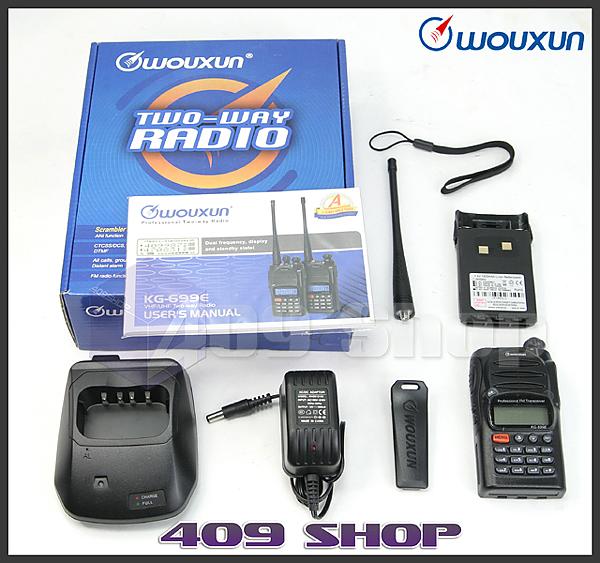

Each Set PACKAGE CONTAIN
  • 1 x KG699E VHF (136-174MHZ)
  • 1 x 7.4 1400mah Battery Pack.
  • 1 x 136-174Mhz Antenna.
  • 1 x Belt Clip.
  • 1 x ENG Manual
  • 1 x Desktop Charger (100~240V)

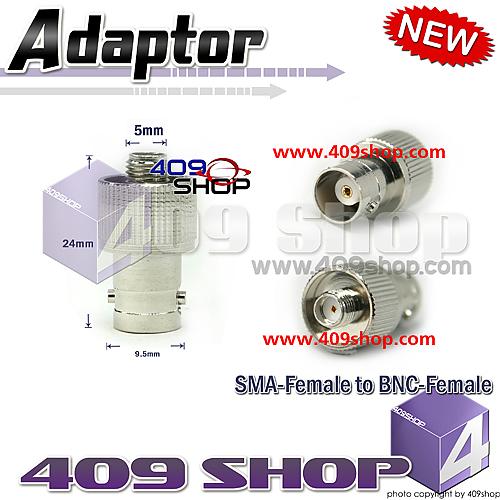

  • 1 x Adaptor S002B

C

Power transformer (2pin USA or 3pinUK or 2pin EURO








Accessories



Spare Part

KG-669 Series

KG-679 Series

KG-699E Series ( Dual Display)

KG-689 Series  ( Dual Display)

KG-659 Series (128 CH) Programming by PC
