JT-988U + S002B

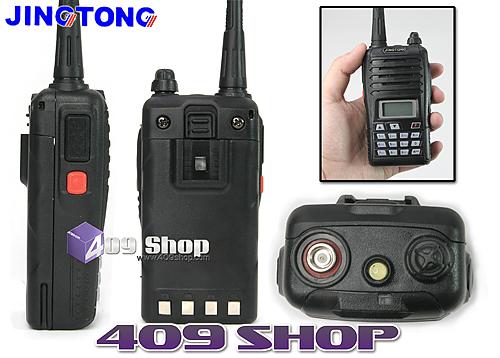

JINGTONG JT988
UHF 400-470Mhz two way radio
+ Adaptor
| |
|
| Model NO. |
JT-988 |
| General |
| Frequency Band TX / RX |
UHF 400-470Mhz |
| FM Radio Range RX |
70-107.9Mhz
|
| Channel Capacity |
199 |
| Operating Voltage |
7.4V DC ±10% |
| Antenna Impedance |
50Ω |
| Channel Spacing |
25kHz |
| Working Temperature |
-30 ℃ - +60 ℃ |
| Frequency Stability |
±2.5 ppm |
| Size (Without Antenna) |
50mm(W)x110mm(L)x30mm(D) |
| Weight(With Battery) |
183g |
| Battery (come with) |
1300mAh(Li-ion) |
| |
| Transmitter |
| RF Power Output |
5W |
| Modulation Type |
F3E |
| Modulation Distortion |
< 5%(300-3000Hz) |
| Max Freq Deviation |
< 5kHz(1000kHz When 100%) |
| FM Noise |
<=-45dB |
| Receiver |
| Sensitivity(12Db SINAD) |
0.16μV |
| Selectivity |
55dB |
| Adjacent Channel Selecivity |
>=70dB |
| Noise Respond |
>=60dB |
| Communication Range |
3-5km(Downtown),6-2km(In the Open Area) |
| FM Noise |
45dB/40dB |
| Modulation Type |
8K/16KOF3E |
| Audio Power Output |
500mW When Distortion Less Than 5% |
| Audio Distortion |
< 5% |
| Operating Bandwidth |
Free for
Adaptor
|
Free for
-

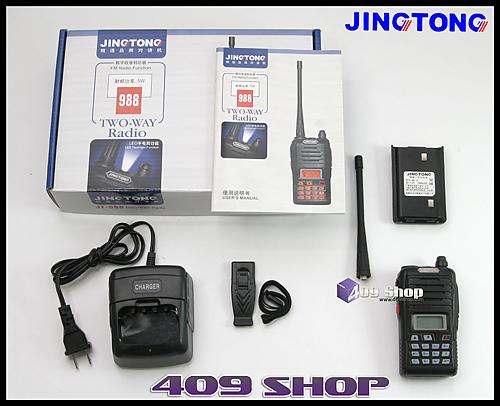

1 x Jingtong JT-988 (UHF 400-470Mhz)
-
1 x 7.2v 1300mah Li-ion Battery Pack
-
1 x UHFAntenna
-
1 x Belt Clip.
-
1 x ENG Manual
-
1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
-
1 x Earpiece

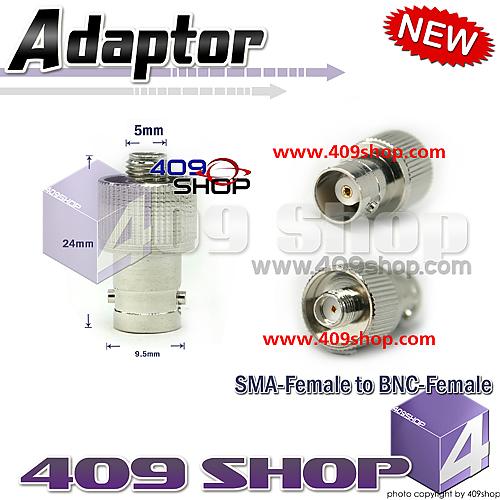

- 1 x Adaptor S002B
