| 編號: FD-289U + S002B |

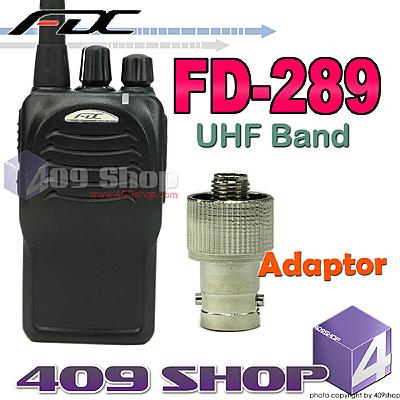

| 名稱: Feidaxin FD-289 UHF400-470Mhz radio + Adaptor |
優惠價: HKD 500.00 |
| 貨幣單位:: HKD |
| 可以寄往: 香港 |
|
|
| |
詳情 |
| |
| FD-289U + S002B

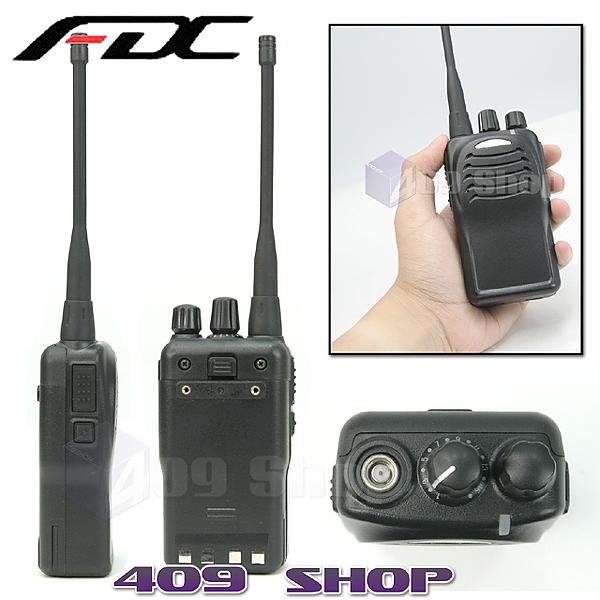

FeiDaxin FD289
UHF 400-470mhz ham radio
+ Adaptor
Special features
| Built-in 50 groups of CTCSS and 104+1 groups of DCS |
Standby time: 120 hours |
Super-mini size |
| Rapid charger and high capacity Li-ion battery |
Low battery alert |
High-quality audio output |
| High power output (5/4W) |
TOT and monitor functions |
Scan function |
| Programming method:computer |
Battery save function |
Rain-resistant |
Technical specifications
| Model NO. |
FD-289 |
| General |
| Frequency Band |
UHF |
| Frequency Range |
400-470MHz |
| Channel Capacity |
16 |
| Operating Voltage |
7.2V DC ±15% |
| Antenna Impedance |
50Ω |
| Channel Spacing |
12.5kHz/25kHz |
| Working Temperature |
-30 ℃ - +60 ℃ |
| Frequency Stability |
±2.5 ppm |
| Size (Without Antenna) |
50mm(W)x98mm(L)x30mm(D) |
| Weight(With Battery) |
198g |
| Battery |
1200 mAh(Li-ion) |
| Compatible With American Military Standard(MIL-STD-810C/D/E) |
| Transmitter（EIA-RS 316B STANDARD） |
| RF Power Output |
4W/5W |
| Modulation Type |
F3E |
| Modulation Distortion |
< 5%(300-3000Hz) |
| Max Freq Deviation |
< 5kHz(1000kHz When 100%) |
| FM Noise |
<=-45dB |
| Receiver |
| Sensitivity(12Db SINAD) |
0.16μV |
| Selectivity |
55dB |
| Adjacent Channel Selecivity |
>=70dB |
| Noise Respond |
>=60dB |
| FM Noise |
45dB/40dB |
| Modulation Type |
8K/16KOF3E |
| Audio Power Output |
500mW When Distortion Less Than 10% |
| Audio Distortion |
< 5% |
| Operating Bandwidth |
±7.5kHz/3.75kHz |
| Standby current |
<15mA |
Free For
Adaptor
|
(***對講機只供出口用/Radio for Export Only***)

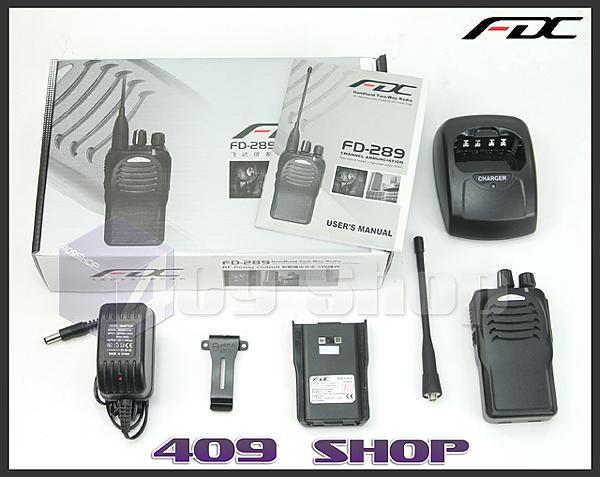

Free For
- 1 x FD-289 Ham radio (UHF 400-470Mhz)
- 1 x Li-ion Battery Pack.
- 1 x Antenna UHF 400-470mhz
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x Belt Cilp
- 1 x user/////////'//i//i//i//i/s manual

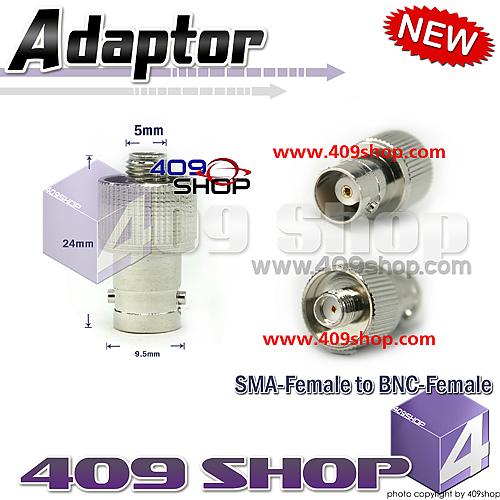

- 1 x Adaptor S002B
