編號: FD390U + 6-004A
名稱: FDC FD-390 UHF 400-470mhz radio + earpiece + Prog Cable

優惠價: HKD 575.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


FD390U + 6-004A

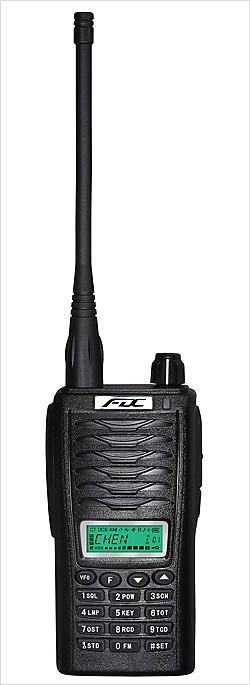

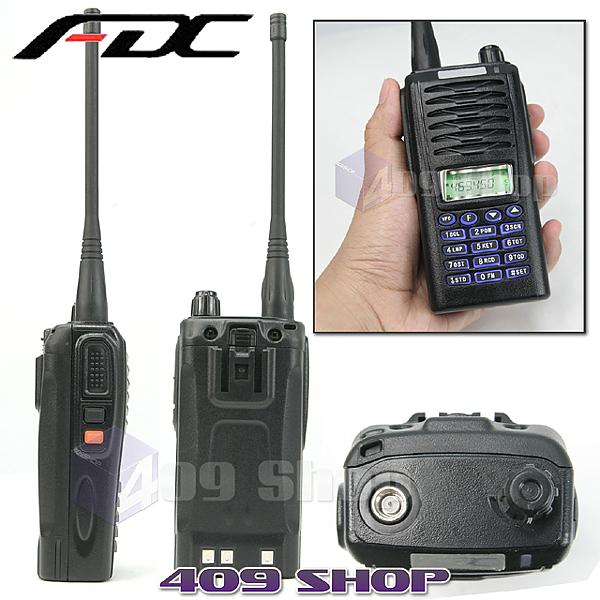

FeiDaxin FD-390

UHF 400-470mhz Ham radio

+ Com Port Program Cable







FD-390U Technical specifications

Special features
Built-in 50groups of CTCSS and 104groups of DCS FM Radio,Channel Name Edit Available

25kHZ/12.5kHz Compatibility

RF Power OUtput 6W/5W

Model NO. FD-390U
General
Frequency Band UHF
Frequency Range 400-470MHz
Channel Capacity 99
Operating Voltage 7.2V DC ±10%
Antenna Impedance 50Ω
Channel Spacing 12.5kHz/25kHz
Working Temperature -30 ℃ - +60 ℃
Frequency Stability ±2.5 ppm
Size (Without Antenna) 54(W)mmx125(L)mmx34mm(D)
Weight(With Battery) About 320g
Battery 1200 mAh(Ni-Mh)/1200 mAh(Li-ion)
Compatible With American Military Standard(MIL-STD-810C/D/E)
Transmitter(EIA-RS 316B STANDARD)
RF Power Output 6W/5W
Modulation Type F3E
Modulation Distortion < 5%(300-3000Hz)
Max Freq Deviation < 5kHz(1000kHz When 100%)
FM Noise <=-45dB
Receiver
Sensitivity(12Db SINAD) 0.16μV
Selectivity 55dB
Adjacent Channel Selecivity >=70dB
Noise Respond >=60dB
Communication Range 3-5km(Downtown),6-20km(In the Open Area)
FM Noise 45dB/40dB
Modulation Type 16KOF3E/8KOF3E
Audio Power Output 500mW When Distortion Less Than 10%
Audio Distortion < 5%
Operating Bandwidth ±7kHz/±3.5kHz


Free for

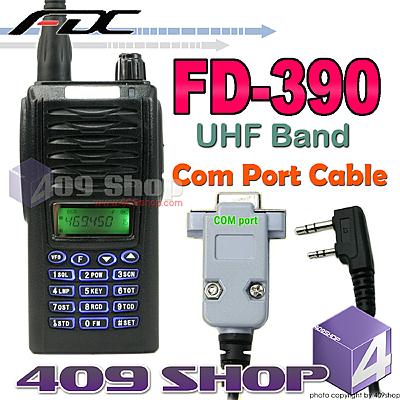

Com Port Program Cable

Free for

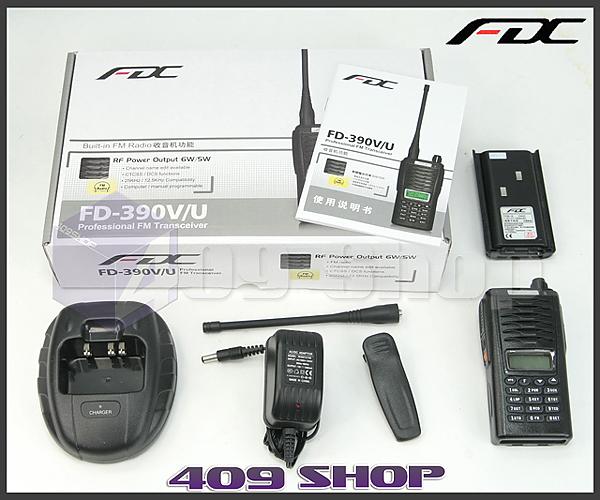

Each Set PACKAGE CONTAIN
  • 1 x FD-390 Ham radio (UHF 400-470Mhz)
  • 1 x Li-ion Battery Pack.
  • 1 x Antenna VUHF 400-470mhz
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x Belt Cilp
  • 1 x user/////////'//i//i//i//i/s manual
  • 1 x Com Port Program Cable 6-004A



FDC FD-390
