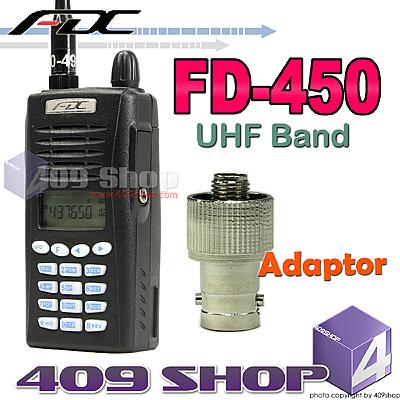

FDC FD-450A UHF 410-480MHz + Earpiece x 1set
+Adaptor
Professional Ham Radio
Built-in 50groups of CTCSS and 104 groups of DCS
-
LCD&keypad backlit display ,blue digital keyboard
-
Standby time:120hours
-
Scan function,keypad lock
-
Rainproof
-
Hi/Lo power select(1W-5W)
-
Programming method:computer/manual
-
Charger LED indicator(red-charging;green-fully chaged)
-
Signal strength indicator
-
Key sound
-
Battery indicator
-
Semi-duplex operation
-
Reverse Frequency
-
Adjustable squelch
FD-450A Technical Specifications: |
|
Model NO. |
FD-450A |
General |
Frequency Band |
UHF |
Frequency Range |
410-480MHz |
Channel Capacity |
99 |
Operating Voltage |
6V DC ±15% |
Antenna Impedance |
50Ω |
Channel Spacing |
25kHz |
Working Temperature |
-90 |
Frequency Stability |
±2.5 ppm |
Size (Without Antenna) |
56(W)mmx106(L)mmx32mm(D) |
Weight(With Battery) |
About 250g |
Battery |
1200 mAh(Ni-Mh) |
Compatible With American Military Standard(MIL-STD-810C/D/E) |
TransmitterEIA-RS 316B STANDARD |
RF Power Output |
5W/4W |
Modulation Type |
F3E |
Modulation Distortion |
< 5%(300-3000Hz) |
Max Freq Deviation |
< 5kHz(1000kHz When 100%) |
FM Noise |
<=-45dB |
Receiver |
Sensitivity(12Db SINAD) |
0.16μV |
Selectivity |
55dB |
Adjacent Channel Selecivity |
>=70dB |
Noise Respond |
>=60dB |
Communication Range |
3-5km(Downtown),6-20km(In the Open Area) |
FM Noise |
45dB/40dB |
Modulation Type |
16KOF3E |
Audio Power Output |
500mW When Distortion Less Than 10% |
Audio Distortion |
< 5% |
Operating Bandwidth |
±7kHz |
Standby current |
<10mA |

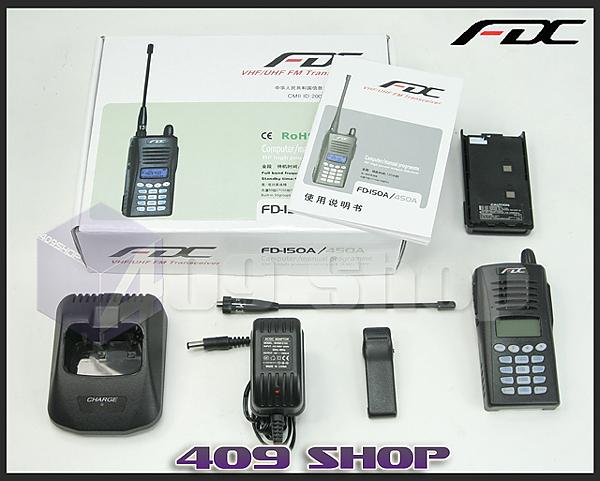

FREE FOR Adaptor
FREE FOR
-
1x FDC FD-450A (UH 410-480Mhz)
-
1x 6V 1200mah Battery Pack
-
1x UHF Antenna.
-
1x Belt Clip.
-
1x ENG Manual
-
1x Desktop Charger ( 100V ~ 240V ) + PSU (2pin USA or 3pinUK or 2pin EURO)
-
1x Earpiece
-

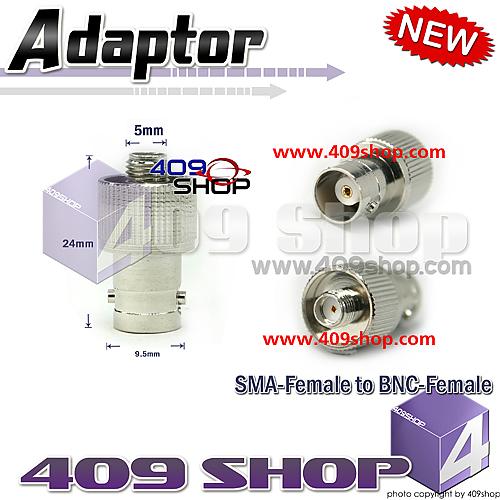

1 x S002B Adaptor
|
|
|
|
|
