編號: FD150AV RED + S002B
名稱: FDC FD-150A RED VHF 136-174Mhz+ adaptor

優惠價: HKD 470.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情

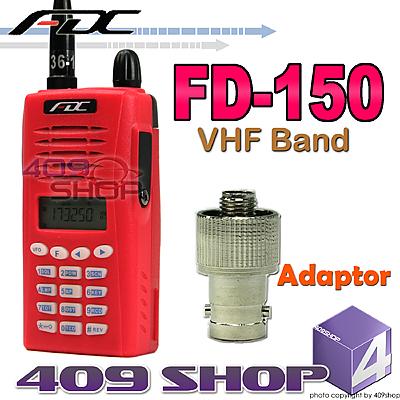

FD150AV RED + S002B

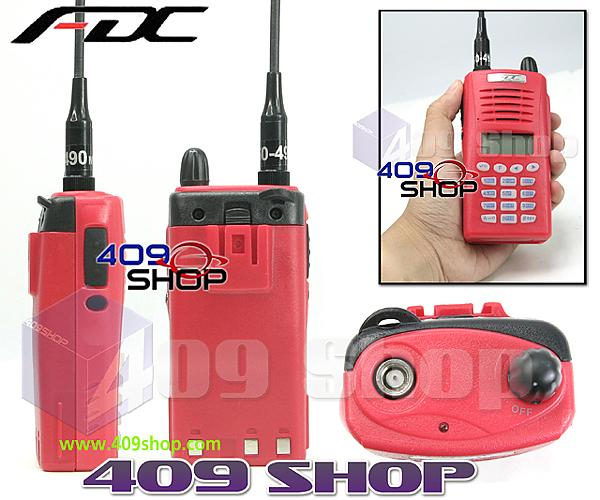

FDC FD-150A Red

VHF 136-174MHz + Earpiece

+ Adaptor



Professional Ham Radio

Built-in 50groups of CTCSS and 104 groups of DCS


  • LCD&keypad backlit display ,blue digital keyboard
  • Standby time:120hours
  • Scan function,keypad lock
  • Rainproof
  • Hi/Lo power select(1W-5W)
  • Programming method:computer/manual
  • Charger LED indicator(red-charging;green-fully chaged)
  • Signal strength indicator
  • Key sound
  • Battery indicator
  • Semi-duplex operation
  • Reverse Frequency
  • Adjustable squelch







Model NO. FD-150A (Red)
General
Frequency Band VHF
Frequency Range 136-174MHz
Channel Capacity 99
Operating Voltage 6V DC ±10%
Antenna Impedance 50Ω
Channel Spacing 25kHz
Working Temperature -30 ℃ - +60 ℃
Frequency Stability ±2.5 ppm
Size (Without Antenna) 56mm(W)x106mm(L)x32mm(D)
Weight(With Battery) 250g
Battery 1300mAh(Ni-MH)
Compatible With American Military Standard(MIL-STD-810C/D/E)
Transmitter(EIA-RS 316B STANDARD)
RF Power Output 1W/4W
Modulation Type F3E
Modulation Distortion < 5%(300-3000Hz)
Max Freq Deviation < 5kHz(1000kHz When 100%)
FM Noise <=-45dB
Receiver
Sensitivity(12Db SINAD) 0.16μV
Selectivity 55dB
Adjacent Channel Selecivity >=70dB
Noise Respond >=60dB
Communication Range 3-5km(Downtown),6-2km(In the Open Area)
FM Noise 45dB/40dB
Modulation Type 8K/16KOF3E
Audio Power Output 500mW When Distortion Less Than 5%
Audio Distortion < 5%
Operating Bandwidth ±7kHz

Photo will have chromatic aberration compared with the product

Free For
Adaptor






Free For

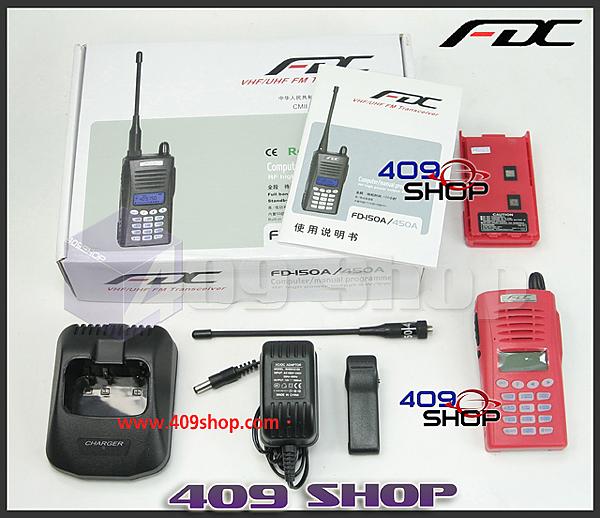

Each set Package Contain
  • 1 x FDC FD-150A Red (VHF 136-174Mhz)
  • 1 x 6V 1200mah NI-MH Battery Pack.
  • 1 x VHF Antenna.
  • 1 x Belt Clip.
  • 1 x ENG Manual
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pinUK or 2pin EURO)
  • 1 x Earpiece

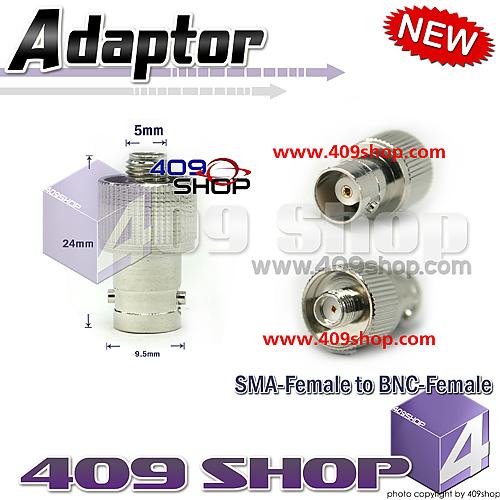

  • 1 x Adaptor S002B








Shipping Address Notice


Turkey & Belgium
Customs Notice



Accessories




Spare Parts


FD-150A / 450A Single Band Series





FD-160 / FD-460 single Band series
