編號: 1 x TH-446V+41-12K
名稱: 1 x TYT TH-446 VHF 136-174Mhz FM radio w + earp + speaker mic

優惠價: HKD 600.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情

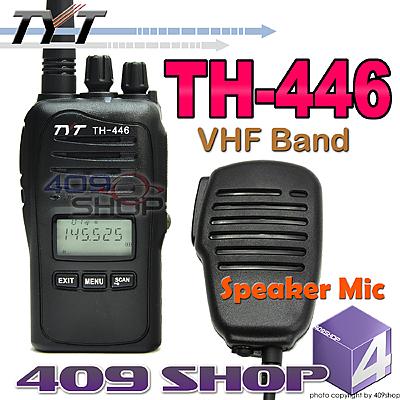

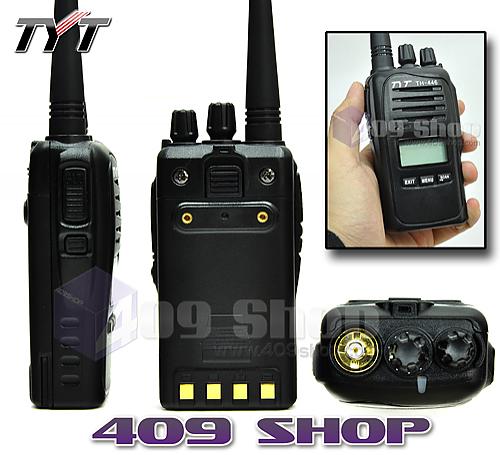

TYT TH446 VHF 136-174Mhz FM Transceiver radio x1set

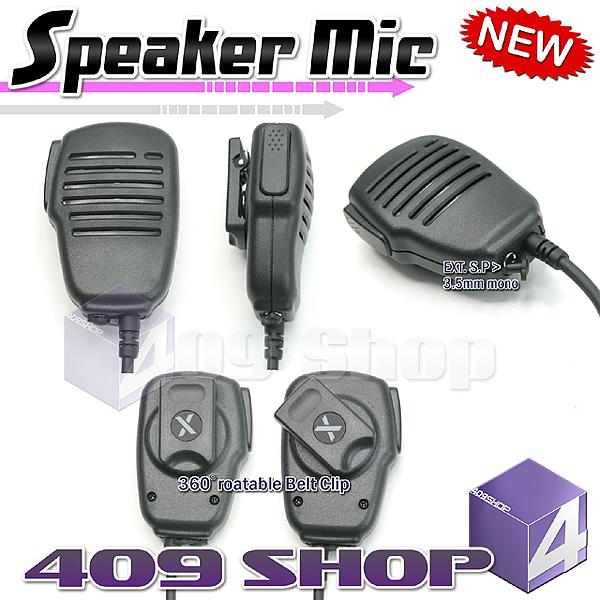

+ speaker mic

Main functions
  • Frequency range: VHF (136-174MHz)
  • 128 memory channels
  • Tri-keypads menu operation
  • CH/CH-FR display
  • Wire clone
  • PC programmable
  • CTCSS/DCS encoding and decoding
  • High/low power adjustable
  • VOX (level adjustable)
  • CTCSS/DCS scanning/Channel scanning/Priority scanning
  • Wide/narrow bandwidth selective (PC program)
  • Reverse frequency
  • TOT (Time out timer)
  • Keypad lock
  • Beep tone

Technical parameters


Item number
TH-446
General
Frequency Range
136-174MHz
Channel No.
128
Frequency Stability
±2.5ppm
Antenna
High gain antenna
Antenna Impedance
50Ω
Operating Voltage
DC 7.2V
Mode of operation
Simple or semi-duplex
Dimensions(W×H×D)
116x57x35mm
Transmitter
Output power
≥5W(H) ≥0.5W(L)
Modulation Mode
16kΦF3E/ 11kΦF3E
Maximum deviation
<5kHz/<2.5KHZ
Spurious Radiation
<7μW
Adjacent Ch. power
≥65dB/≥60db
Pre-emphasis characteristics
6db
Current
≤1.6A(5W)
CTCSS/DCS deviation
0.5kHZ+/-.01kHZ 03kHZ+/-0.1kHZ
Intermediation sensitivity
8-12mv
Intermediation distortion
<10%
Receiver
RF Sensitivity
-122dbm(12db SINAD)
Audio power
>0.5W
Audio Distortion
≤10%
Intermediation
≥60dB ≥55db
Selectivity
≥65dB ≥60db
Spurious Rejection
≥65db
Blocking
≥85

FREE FOR + speaker mic





FREE FOR

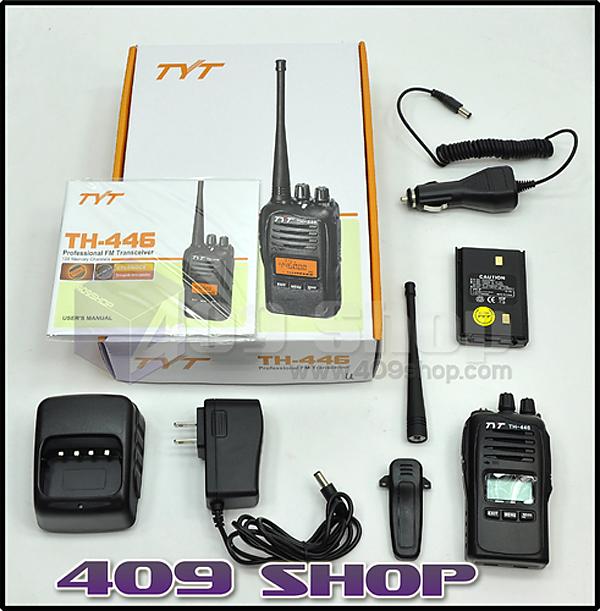

Each Set PACKAGE CONTAIN

  • 1 x TYT TH-446 (VHF 136-174Mhz)
  • 1 x 7.4V 1300mah Li-ion Battery Pack
  • 1 x VHF Antenna
  • 1 x Belt Clip.
  • 1 x ENG Manual
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x Earpiece
  • 1 x 41-27k speaker mic





TYT TH-446
