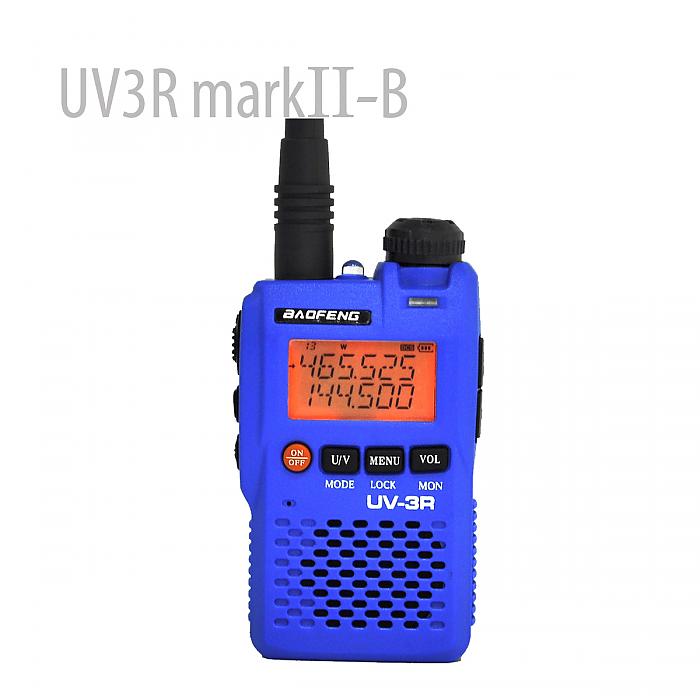

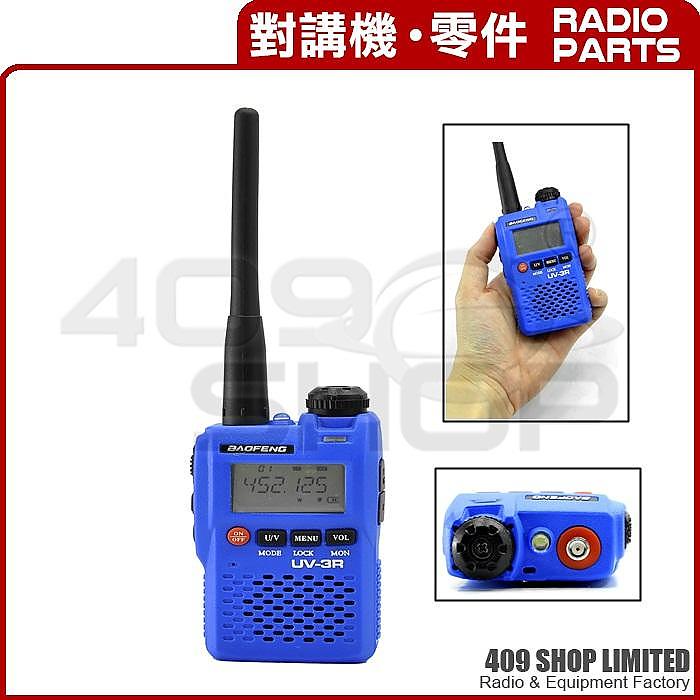

UV-3R (Mark II) Blue
寶鋒藍色UV-3R Mark II 雙段對講機
手機版購買: https://409mall.com/product/ucKiGkASWtJ8oFE3
BAOFENG UV-3R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF DUAL-BAND TWO WAY RADIO
- Frequency Range: 136-174 / 400-470MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 2 Watts
- 99 Channels + 1 Emergency Channel
- 50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (87.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- High /Low Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 5/6.25/12.5/25KHz
Specifications:
| Frequency Range |
VHF136-174 UHF 400-470MHz (Dual Band) |
| Operating Voltage |
3.7V |
| Operating Temperature |
-30c~+60c |
| Battery |
(Li-ion) |
| Antenna Impedance |
50 ohm |
| Dimension(without antenna&battery(L×W×H) |
47*81*23(mm) |
| Weight(with antenna&battery) |
about 130g |
| Transmitter |
| RF Power Output |
UHF:2W/ |
| FM Noise |
65dB |
| Adjacent Channel Power |
45dB/42dB |
| Receiver |
| Spurious response rejection |
60dB |
| Receiver current |
400mA |
| Standby Current |
75mA |
- 1 x 寶鋒UV-3R（Mark II）藍雙頻+聽筒 對講機
- 1 x 3.7v 1 x 鋰電池
- 1 x 天線
- 1 x 背夾
- 1 x 英語手冊
- 1 x 充電器，有線/電源（PSU提供插件為你的國家）
- 1 x PTT聽筒免費
- 1 x 腕帶
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
|
