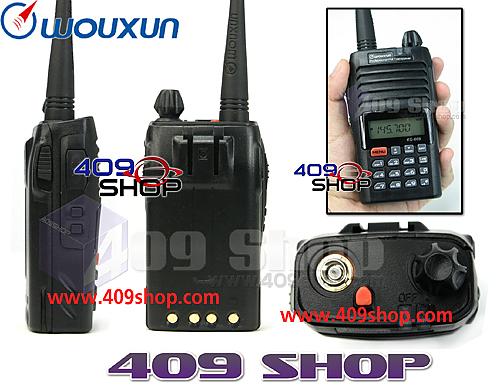

KG-669V+S002B

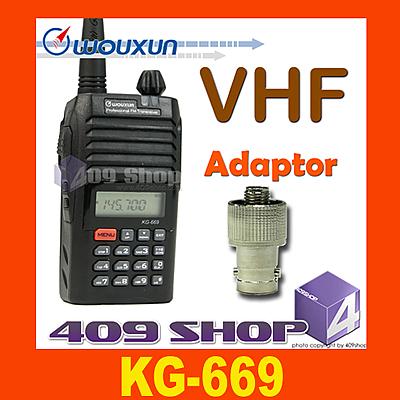

WOUXUN KG669 VHF136-174MHZ + Earpiece + Adaptor
Amateur Handheld Transceivers
- 99 DTMF encoding and decoding, CCIR standards
- Full frequency range
- Output power VHF 5W
- VOX transmission(VOX level adjustable)
- 105 groups D.C.S/50 groups CTCSS
- All call, group call and select call.
- ANI ID code(Caller ID)
- 128 memory channels and 1 group emergency channel
- Voice prompt (Chinese /English)
- Width/Narrow brand select (12.5KHz/25KHz)
- Three color back light can be selectable .
- 1200mAh Li-ion battery and intelligent charge
- Frequency/Channel/Frequency+Channel display mode
- Multi scan mode(TO/CO/SE)
- Calling ring and ring overtime auto answer
- Multi silent mode(QT/QTADT/QTXDT)
- Alarm/Emergency calling
- Keyboard lock(Auto/Manual)
- Talk around function
- Busy channel lockout
- Programmable by computer
- Menu/Channel reset
- FM radio function
|
General
|
|
Frequency Range
|
136-174Mhz
|
| Channels |
128
|
| Channel Steps |
5k,10k,6.25k,12.5k,25k
|
| Power Supply |
7.2V1200MAh Li-ion
|
| Operating Temperature |
-20°C ~ +60°C
|
| Communication Range |
3 ~6km
|
| Dimension (H x W x D) |
100 x 55.5 x 31mm
|
| Weight |
236g
|
|
RX
|
| Sensitivity |
<0.20µV
|
| Selectivity |
65dB
|
| Intermodulation Rejection |
60dB
|
| AF Output |
500mW
|
| Standby Current |
35mA
|
|
|
| Power Output |
4W
|
| Modulation Type |
F3E
|
| Spurious Emission |
< -65dB
|
| Transmit Current |
700mA/350mA
|
| Max. Deviation |
±5kHz
|
| Modulation Distortion |
< 5%
|
| Frequency Stability |
±2.5ppm
|
Specifications from WOUXUN company
P.S. This model (KG-669) without Scrambler set
"Scrambler set Please Use KG-669plus"
Free For Adaptor
|
Free For
-

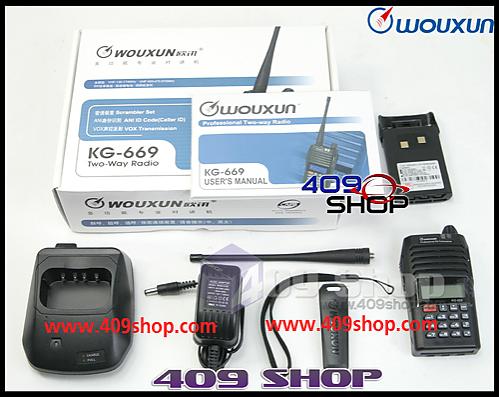

1x KG-669 (VHF 136-174Mhz)
-
1x 7.4v 1400mah Battery Pack
-
1x Antenna.
-
1x Wrist Strap
-
1x Belt Clip
-
1x English Manual
-
1x Earpiece
-
1x Desktop Charger *
*100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)
-
1x Adaptor
|
|
|
|
|
