Built-in 50 Groups of CTCSS and 104 Groups of DCS ,
High QUANTITY,100% brand new.
One year warranty !
128 Groups of memory channels
Built-in 50 Groups of CTCSS and 104 Groups of DCS
Wide(25kHz) and Narrow(12.5kHz) available
Come with 1200mAh Li-ion battery
Input Freq. By using keypad Display Tag funtion
VOX built-in
Scan function
Three color LCD backlight display
Emergency Alarm
Programmable by PC (interface cable is not include)
Bell ring when receiving signal
Priority Scan Function
Adjust RF output power Hi/Lo
Switching between Channel/Freq.
Adjust squelch level(0-9)
Busy channel lockout
Keypad lock ,TAG funtion
P.S. This model without ANI &Scrambler.
General
Frequency Range
VEV-3288s(U)400-470MHz
Channels
128
Channel Steps
5k,10k,6.25k,12.5k,25k
Power Supply
7.2V 1200mah LI-ion
Operating Temperature
-20°C ~ +60°C
Communication Range
3 ~6km
Dimension (H x W x D)
100 x 55.5 x 31mm
Weight
225g
Receiver RX
Sensitivity
<0.20µV
Selectivity
65dB
Intermodulation Rejection
60dB
AF Output
500mW
Standby Current
35mA
Transmitter TX
Power Output
5W
Modulation Type
F3E
Spurious Emission
< -65dB
Transmit Current
1300mA/750mA
Max. Deviation
±5kHz
Modulation Distortion
< 5%
Frequency Stability
±2.5ppm
Free for Battery

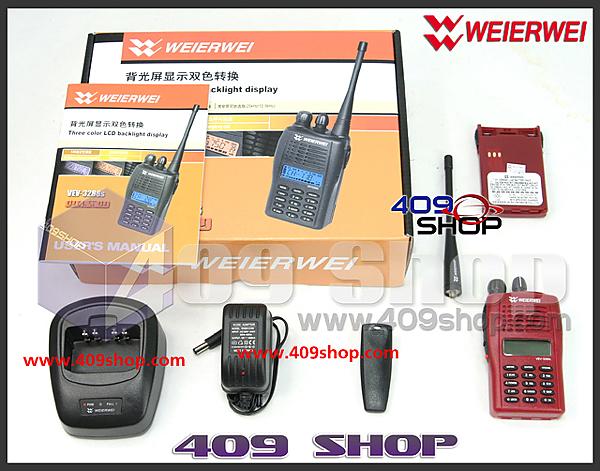

Each Set PACKAGE CONTAIN
1 x Weierwei VEV3288S (UHF, Colour :Red)

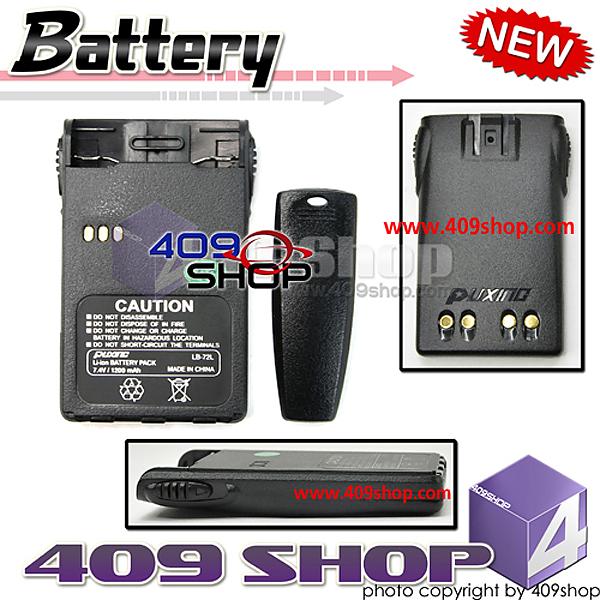

2 x 7.2V 1200Mah rechargeable lithium ion Pack
1 x SMA UHF Antenna.
1 x Belt Clip.
1 x ENG Manual
1 x Desktop Charger (100V ~ 240V).Power transformer Plug suit your country (2pin USA or 3ping UK or 2pin Euro)
1 x Earpiece
