VEV3288S VHF +2-061

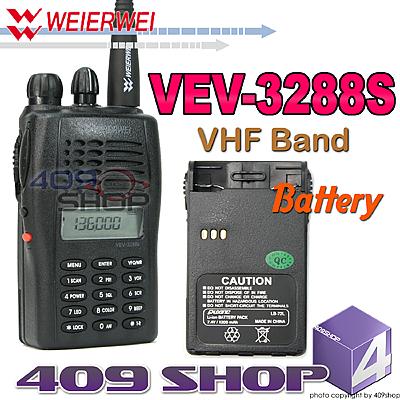

WEIERWEI VEV-3288S 136-174Mhz VHF RADIO+Earpiece+Battery
Professional Ham Radio
Built-in 50 Groups of CTCSS and 104 Groups of DCS ,
Li-ion Battery.Deskcharger:(AC:100V~240V power in)
High QUANTITY,100% brand new.
One year warranty !
- 118 Groups of memory channels
- Built-in 50 Groups of CTCSS and 104 Groups of DCS
- Wide(25kHz) and Narrow(12.5kHz) available
- Come with 1200mAh Li-ion battery
- Input Freq. By using keypad Display Tag funtion
- VOX built-in
- Scan function
- Three color LCD backlight display
- Emergency Alarm
- Programmable by PC (interface cable is not include)
- Bell ring when receiving signal
- Priority Scan Function
- Adjust RF output power Hi/Lo
- Switching between Channel/Freq.
- Adjust squelch level(0-9)
- Busy channel lockout
- Keypad lock ,TAG funtion
P.S. This model without ANI &Scrambler.
|
General
|
|
Frequency Range
|
VEV-3288s(V)136~174MHz
|
| Channels |
118
|
| Channel Steps |
5k,10k,6.25k,12.5k,25k
|
| Power Supply |
7.2V 1200mah LI-ion
|
| Operating Temperature |
-20°C ~ +60°C
|
| Communication Range |
3 ~6km
|
| Dimension (H x W x D) |
100 x 55.5 x 31mm
|
| Weight |
225g
|
|
Receiver RX
|
| Sensitivity |
<0.20µV
|
| Selectivity |
65dB
|
| Intermodulation Rejection |
60dB
|
| AF Output |
500mW
|
| Standby Current |
35mA
|
|
Transmitter TX
|
| Power Output |
5W
|
| Modulation Type |
F3E
|
| Spurious Emission |
< -65dB
|
| Transmit Current |
1300mA/750mA
|
| Max. Deviation |
±5kHz
|
| Modulation Distortion |
< 5%
|
| Frequency Stability |
±2.5ppm
|
Specifications by WEIERWEI factory
This mode without ANI code & Scramber
Free for Battery
Free for
-

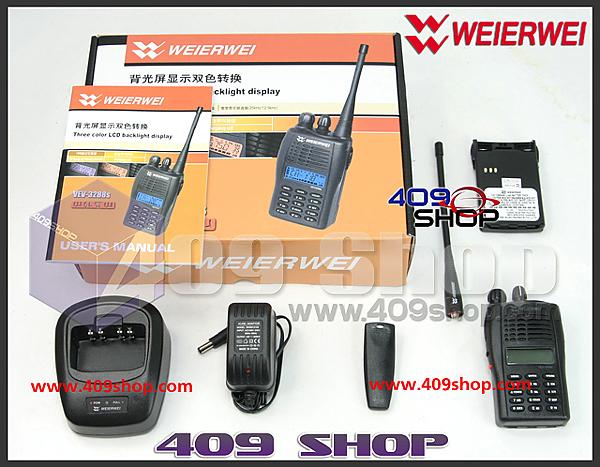

1x VEV 3288S (VHF Free band version)
-

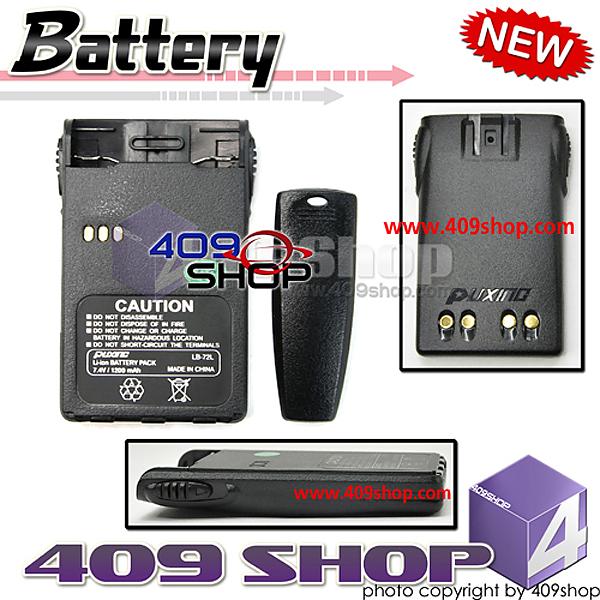

2x 7.2v rechargeable lithium ion Pack
-
1x SMA Antenna.
-
1x Belt Clip.
-
1x ENG Manual
-
1x Desktop Charger ( 100V ~ 240V ) Power transformer (2pin USA or 3pinUK or 2pin EURO
-
1x Earpiece
|
|
|
|
