FD460 UH+4-001M+41-27M

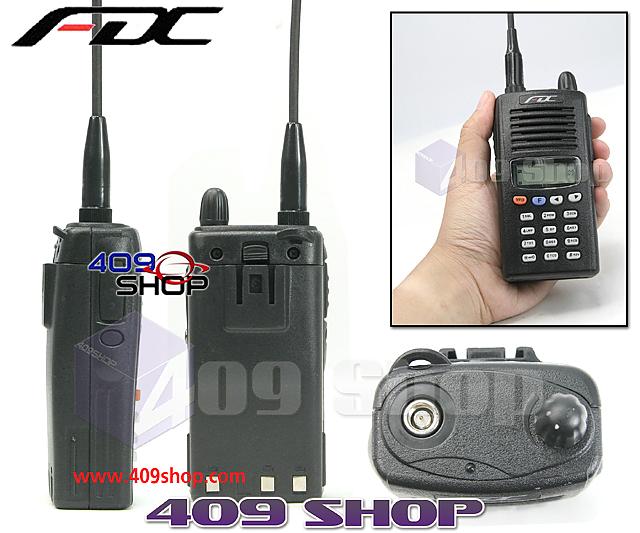

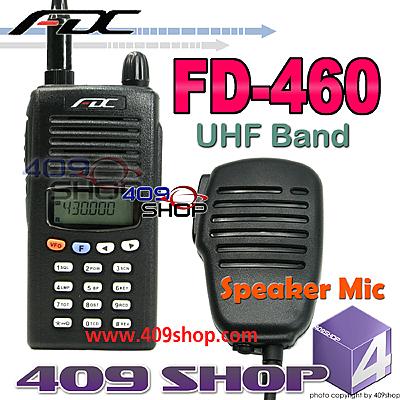

FDC FD-460 UHF410-480MHz + Earpiece + speaker mic
All radio with One-year warranty.
Built-in 50groups of CTCSS and 104 groups of DCS
-
LCD&keypad backlit display ,blue digital keyboard
-
Standby time:120hours
-
Scan function,keypad lock
-
Rainproof
-
Hi/Lo power select(1W-5W)
-
Programming method:computer/manual
-
Charger LED indicator(red-charging;green-fully chaged)
-
Signal strength indicator
-
Key sound
-
Battery indicator
-
Semi-duplex operation
-
Reverse Frequency
-
Adjustable squelch
Technical Specifications:
|
FDC Radio Model No.
|
FD-460UH
|
|
General
|
|
Frequency Band
|
UHF
|
|
Frequency Range
|
410 - 480 MHz
|
|
Channel Capacity
|
99
|
|
Operating Voltage
|
6V DC ± 15%
|
|
Antenna Impedance
|
50ohms
|
|
Channel Spacing
|
25KHz
|
|
Working Temperature
|
-30°C ~ +60°C
|
|
Frequency Stability
|
± 2.5ppm
|
|
Size (without antenna)
|
56(W) x 106(L) x 32mm(D)
|
|
Weight (with battery)
|
About 250g
|
|
Battery
|
1,200mAh(Ni-Mh)
|
|
Compatible with American Military Standard
(MIL-STD-810C/D/E)
|
|
Transmitter (EIA-RS 316B Standard)
|
|
RF Power Output
|
4W / 5W
|
|
Modulation Type
|
F3E
|
|
Modulation Distortion
|
<5% (300 - 3,000Hz)
|
|
Maximum Frequency Deviation
|
<5KHz (1,000KHz when 100%)
|
|
FM Noise
|
<= -45dB
|
|
Receiver
|
|
Sensitivity (12Db SINAD)
|
0.16μV
|
|
Selectivity
|
55dB
|
|
Adjacent Channel Selectivity
|
>= 70dB
|
|
Noise Respond
|
>= 60dB
|
|
|
|
|
FM Noise
|
45dB / 40dB
|
|
Modulation Type
|
16KOF3E
|
|
Audio Power Output
|
500mW when distortion less than 10%
|
|
Audio Distortion
|
<5%
|
|
Operating Bandwidth
|
± 7KHz
|
|
Standby Current
|
<10mA
|
Free for

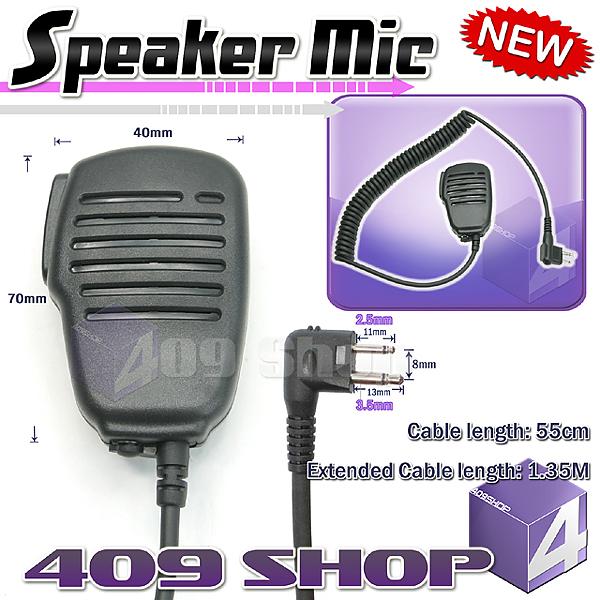

Speaker Microphone
Free for
|
|

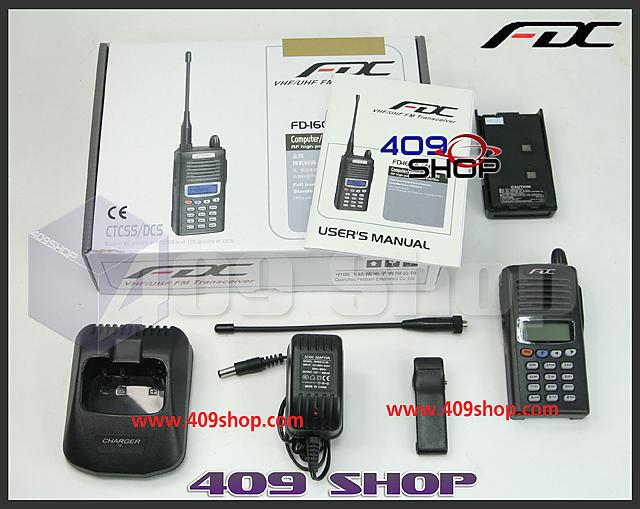

- 1 x FDC FD-460UH (UHF 410-480Mhz)
- 1 x 6V 1200mah Battery Pack.
- 1 x UHF Antenna.
- 1 x Belt Clip.
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V ) + PSU (2pin USA or 3pinUK or 2pin EURO)
|
|
|
|
