編號: FD-460AU+41-27M
名稱: FDC FD-460A UHF 400-470Mhz + Earpiece + speaker mic

優惠價: HKD 480.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


FD460A +41-27M

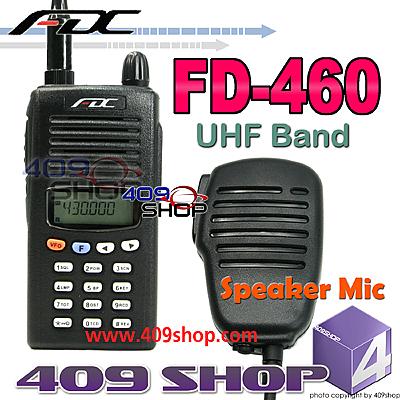

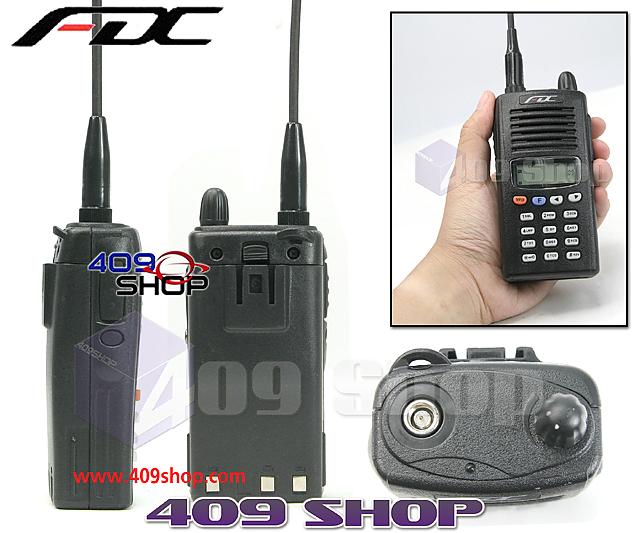

FDC FD-460A UHF 400-470Mhz + Earpiece + speaker mic

Free Speaker Mic

Professional Ham Radio

Built-in 50groups of CTCSS and 104 groups of DCS

  • LCD&keypad backlit display ,blue digital keyboard
  • Standby time:120hours
  • Scan function,keypad lock
  • Rainproof
  • Hi/Lo power select(1W-5W)
  • Programming method:computer/manual
  • Charger LED indicator(red-charging;green-fully chaged)
  • Signal strength indicator
  • Key sound
  • Battery indicator
  • Semi-duplex operation
  • Reverse Frequency
  • Adjustable squelch





FD-160A Technical Specifications:
Model NO. FD-460A
General
Frequency Band UHF
Frequency Range 400-470MHz
Channel Capacity 99
Operating Voltage 6V DC ±15%
Antenna Impedance 50Ω
Channel Spacing 25kHz
Working Temperature  -30 - 60
Frequency Stability ±2.5 ppm
Size (Without Antenna) 56(W)mmx106(L)mmx32mm(D)
Weight(With Battery) About 250g
Battery 1200 mAh(Ni-Mh)
Compatible With American Military Standard(MIL-STD-810C/D/E)
TransmitterEIA-RS 316B STANDARD
RF Power Output 5W/4W
Modulation Type F3E
Modulation Distortion < 5%(300-3000Hz)
Max Freq Deviation < 5kHz(1000kHz When 100%)
FM Noise <=-45dB
Receiver
Sensitivity(12Db SINAD) 0.16μV
Selectivity 55dB
Adjacent Channel Selecivity >=70dB
Noise Respond >=60dB
Communication Range 3-5km(Downtown),6-20km(In the Open Area)
FM Noise 45dB/40dB
Modulation Type 16KOF3E
Audio Power Output 500mW When Distortion Less Than 10%
Audio Distortion < 5%
Operating Bandwidth ±7kHz
Standby current <10mA

Free for

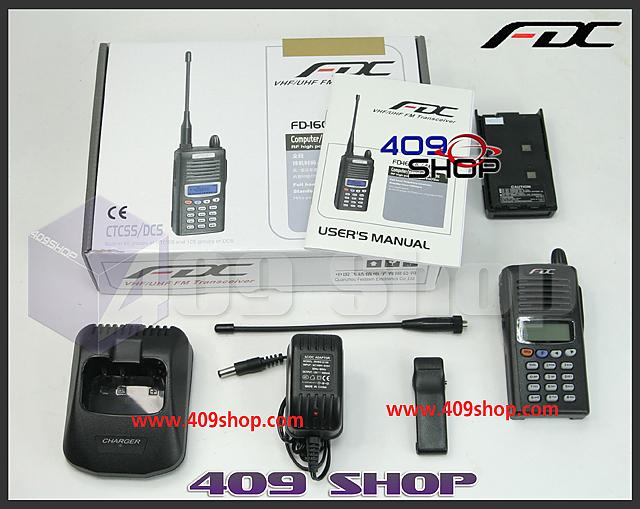

Each Set Package Contain

  • 1x FDC FD-460A (UHF 400-470Mhz)
  • 1x 6V 1200mah Battery Pack
  • 1x UHF Antenna.
  • 1x Belt Clip.
  • 1x ENG Manual
  • 1x Desktop Charger ( 100V ~ 240V ) + PSU (2pin USA or 3pinUK or 2pin EURO)
  • 1x Earpiece

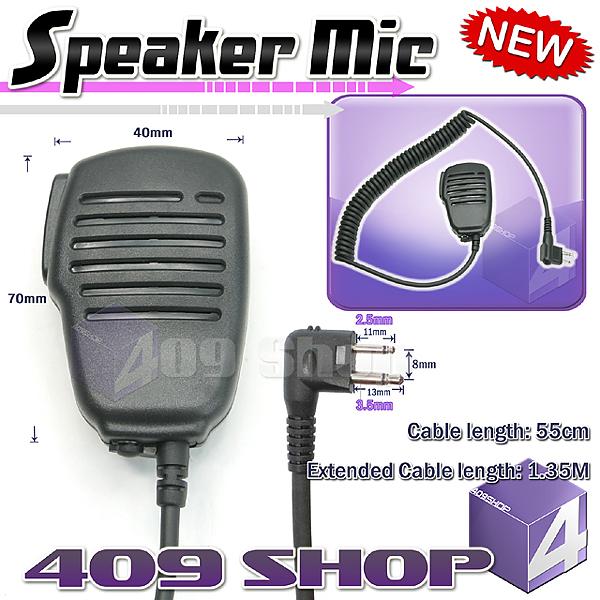

  • 1x Speaker mic



   Optional accessory
