編號: UT232
名稱: UNI-T UT232 Digital Power Clamp Meters
優惠價: HKD 980.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了 0

詳情

UT232

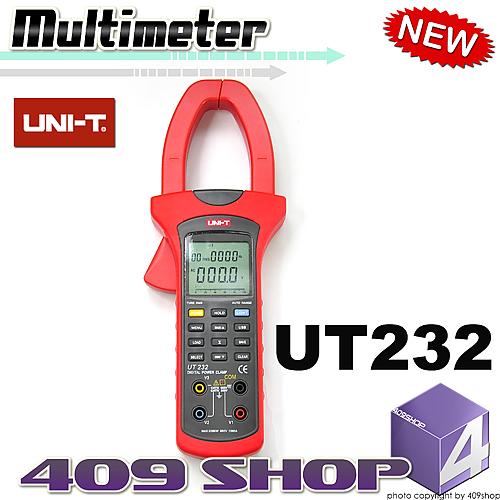

UNI-T UT232 Digital Power Clamp Meters

UT232

Digital Power Clamp Meters

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
AC Voltage	15V/100V/300V/600V	(1.2%+5)
AC Current	40A/100A/400A/1000A	(2%+5)
Active Power	0.01kW-600kW	(3%+5)
Apparent Power	0.01kVA-600kVA	(3%+5)
Reactive Power	0.01kVAr-600kVAr	(4%+5)
Power Factor	0.3~1(Capacitive or Inductive )	(0.02+2)
Phase Angle	0°C~360°C	1°
Frequency	20Hz-500Hz
Active Energy	1~9999 kWh	(3%+2)
Special Functions
Auto Ranging
Single-phase 2-wire
3-phase 3-wire
3-phase 4-wire
True RMS	AC Voltage or Current
Calibration Feature
Data Logging	99
Data Recall
Max/Min Mode
Data Hold
USB
Display Backlight
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for AC Voltage Measurement	≥10MW
Max. Display	9999
Analogue Bar Graph

GENERAL CHARACTERISTICS

Power	1.5V Battery (LR6) x 4 ( NOT include Battery)**
LCD Size	46 x 42mm
Product Color	Red and Grey
Product Net Weight	601g
Product Size	303 x 112 x 39mm

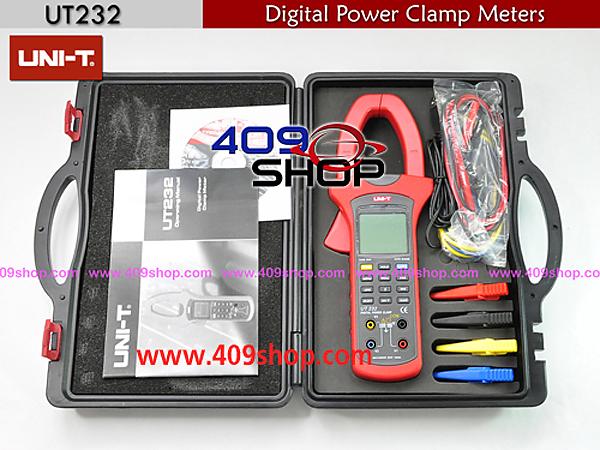

Standard Accessories	4pcs of Test Lead, English Manual, 4pcs of Alligator Clips, USB Interface Cable, Software, Tool Box
