編號: FD-880UH+41-07K
名稱: FDC FD-880 UH Dual Band Radio+Rain proof Speaker Mic

優惠價: HKD 638.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


FD-880UH+41-07K

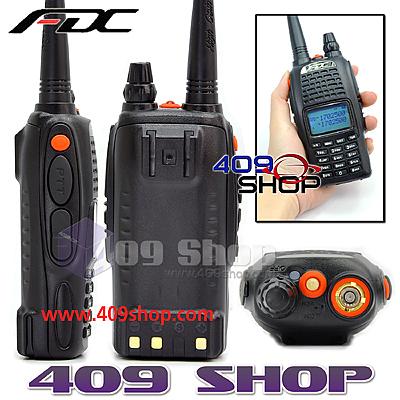

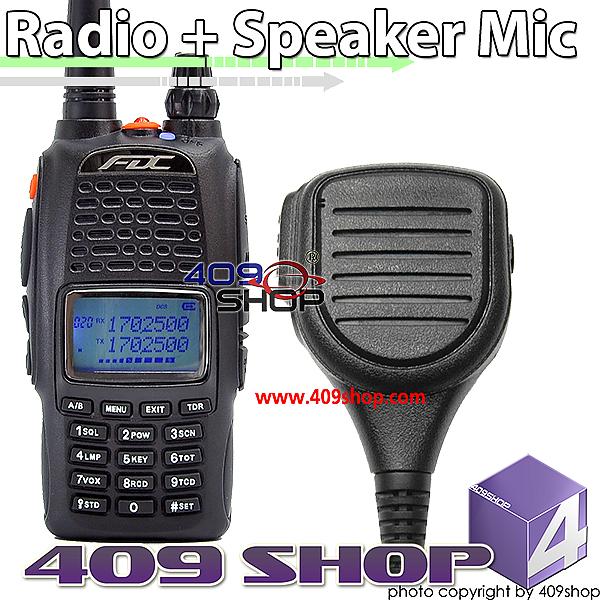

FDC FD-880 UH Dual Band Radio+Rain proof Speaker Mic

Special features



Dual band,dual Freq.,dual display and dual standby

Working Mode:U-V,U-U,V-V can be set freely.

Band can be set freely on the same channel:VHF TX-UHF RX or UHF TX-VHF RX.

DTMF function

Offset Freq and Freq.shift direction can be set.

Keypad lock (Auto/Manual);Busy channel lockout

Water-proof;Wired clone function

Built-in FM radio;Led flashlight

3 displaying modes selectable(CH,FREQ,CH Name)

VOX function;Stopwatch function

Priority Scan;Multiple Scan modes;Adding channel scan

Emergency Alarm function;Wired clone function

Reverse freq.function

Multipe Step frequency(5/6.25/10/12.5/25/50/100KHz)

Charging directly from the power supply.You can also charge your radio by connecting the supplied ac adapter directly to your radio.




Technical specifications



Model NO. FD-880(Dual-band)

General

Frequency Band

VHF

UHF

Frequency Range

136-174MHz

400-480MHz

Channel Capacity

128

Operating Voltage

7.2V DC ±15%

Antenna Impedance

50Ω

Channel Spacing

12.5kHz/25kHz

Working Temperature

-30 ℃ - +60 ℃

Frequency Stability

±2.5 ppm

Size (Without Antenna)

104(W)mmx62(L)mmx36mm(D)

Weight(With Battery)

about 250g

Battery

1500 mAh(Li-ion)

Transmitter

RF Power Output

5W/4W

Modulation Type

F3E

Modulation Distortion

< 5%(300-3000Hz)

Max Freq Deviation

< 5kHz(1000Hz When 100%)

FM Noise

<=-45dB

Receiver

Sensitivity(12Db SINAD)

0.16μV

Selectivity

55dB

Adjacent Channel Selecivity

>=70dB

Noise Respond

>=60dB

Communication Range

3-5km(Downtown),6-20km(In the Open Area)

FM Noise

30dB/40dB

Modulation Type

8K/16KF3E

Audio Power Output

500mW When Distortion Less Than 10%

Audio Distortion

< 5%

Operating Bandwidth

±3.5kHz/3.75kHz

Standby Current

< 12mA







Photo will have chromatic aberration compared with the product

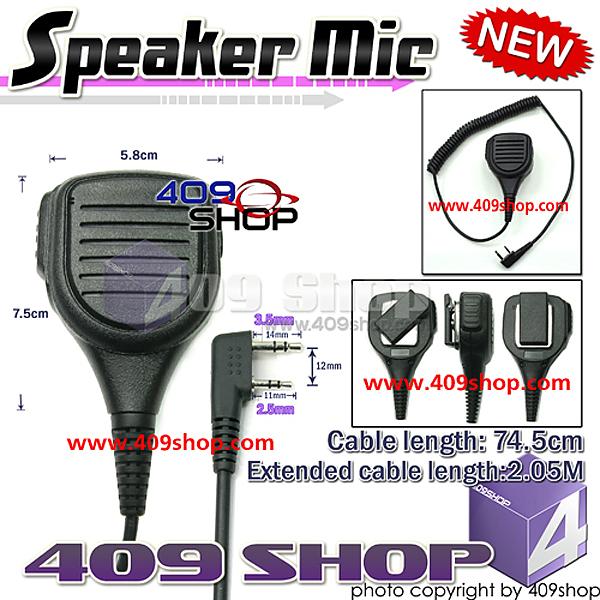

FREE FOR Rain Proof Speaker Mic

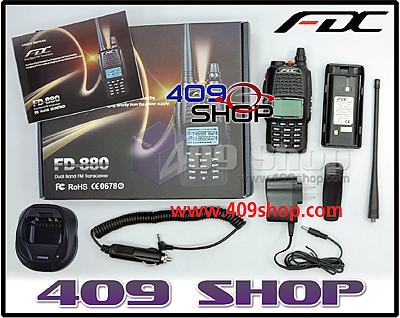

Each Set PACKAGE CONTAIN
  • 1 x FDC FD-880 (VHF136-174 / UHF 400-480Mhz Dual Band)
  • 1 x 7.4v 1600mAh Li-ion Battery
  • 1 x Dual band Antenna.
  • 1 x Belt Clip.
  • 1 x ENG Manual
  • 1 x Wall Charger PSU (Provide PSU plug for your Country)
  • 1 x 12V Car Charger Cable
  • 1 x PTT Earpiece for free
  • 1 x 41-07K Rain proof Speaker Mic
