編號: SR-112 +46-S2
名稱: SURECOM SR-112 單工中轉台 附送 MIDLAND 寫頻線

優惠價: HKD 495.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


SR-112 Radio record simplex repeater Controller with MIDLAND Cable

SR-112 Radio voice Repeater




SR-112 Radio record simplex repeater Controller


The SR-112 is a multi-function voice recorder device that connects to virtually any handheld, base, or mobile radio. It features exceptional voice recording quality and higher capacity than any other comparable device on the market.

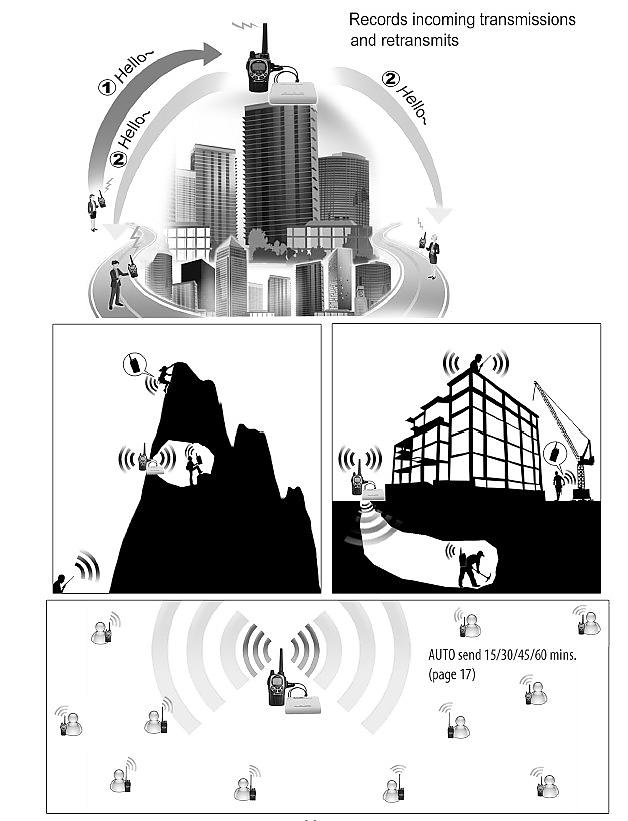

Simplex Repeater
A simplex repeater records incoming transmissions and retransmits them on the same frequency. This has the effect of doubling the time required to transmit a message, but while a traditional repeater typically costs thousands of dollars and might be semi-portable at best, a simplex repeater can be set up with a single handheld radio and operated from batteries. This makes it perfect for disaster response, home or campground use, and any place where radio range needs to be extended but the cost and complexity of a traditional repeater can’t be justified.

Voice Mail
The SR-112 s voice mail function operates like a telephone answering machine,
allowing users to record messages for later retrieval.
Up to 3 incoming messages can be recorded, total recording  message  up to 180sec

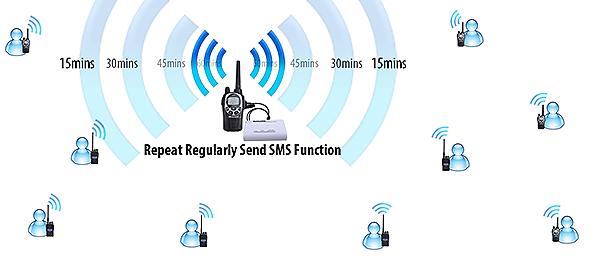

Auto message send system
15/30/45 minutes  setting

Major Features
- 3 of message box for record
- Auto Message send out at 15/30/45mins
-Up to 180 seconds total recording time
-DTMF remote control for all functions
-19.2 KHz sample rate for excellent voice clarity
-Operates from 14500 3.7V Li-ion or external 5-24 V DC supply
-build-in rechargeable Lithium-ion battery support 72 hours long life operation
-User to change the DTMF remote control password by radio
-User set the Repeater Operates On/Off by DTMF
-Audio output adjustable in hardware and by remote command
-Audio in Level display
-Auto Battery level display (20%~100%)
-Provides audio Input  level display  ( for adj. best sound )
-Provides signal roger beep setting
-DTMF signal display
-Works with most popular CB,FRS, PMR, Amateur radios, Mobile Radio (optional of Cable)
-1 year warranty on complete unit, 5 years on flash memory

Features:





 Message Recording time:   180sec
 Build in 3.7V Li-ion Battery:   900MAH
 Ext.DC Jack 5.5/2.1mm:   DC5V~24V
 Standby Time:  180hours
 Standby current:   4mA
Work current: 20-30mA
 SIZE:   110×80×25mm

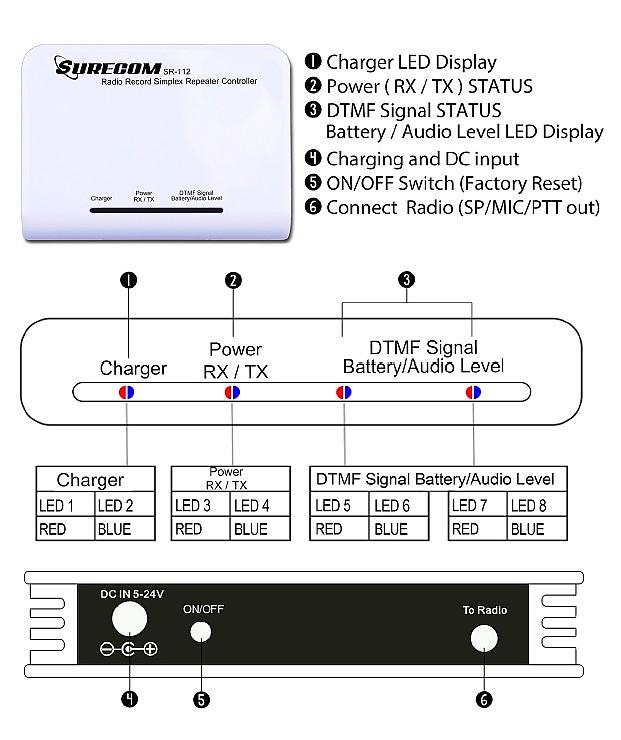

LED DISPLAY
Charge  Red Charge/ DC in
 Blue Full
Power  Red    flash Power on
 Blue flash  Sleep mode
Status  Red

 RX  Recording

 Blue

 TX   send

Build in

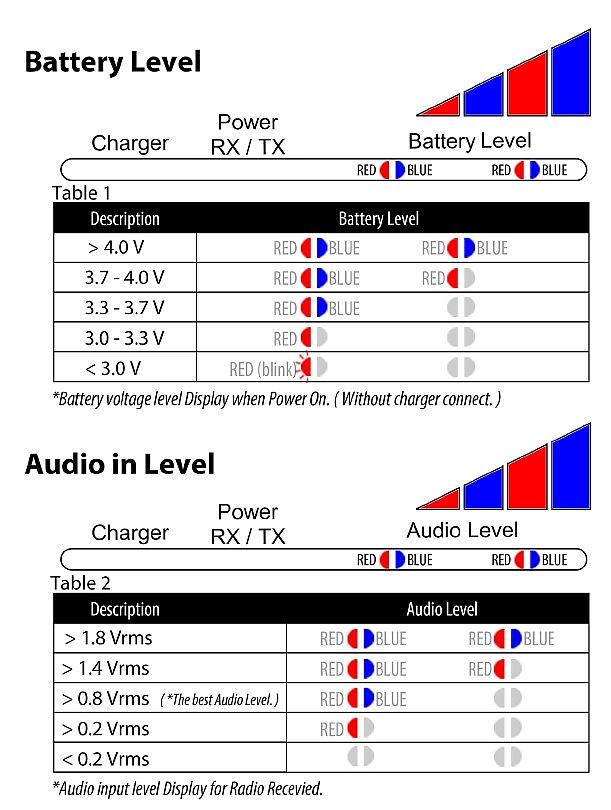

Battery Life
 Red +Blue 100%
 Red 80%
 Blue 50%
 Red +blue Flash 40%
 Red Flash 30%
 Blue Flash 20%




S2
Plug

Compatible Radio Models

Maxon SP14, SP130, SP120, SP130, SPI140, SP300,
SP310, SP320, SP330, SP340, SL25, SL55, SL55+, SL100K
Midland -
All 2-Pin
75-785, 75440, GTX-200, GTX-250, GTX-300,
GTX-325, GTX-400, GTX-444, GTX-450,
G-225, G-227, G-300, GXT500VP

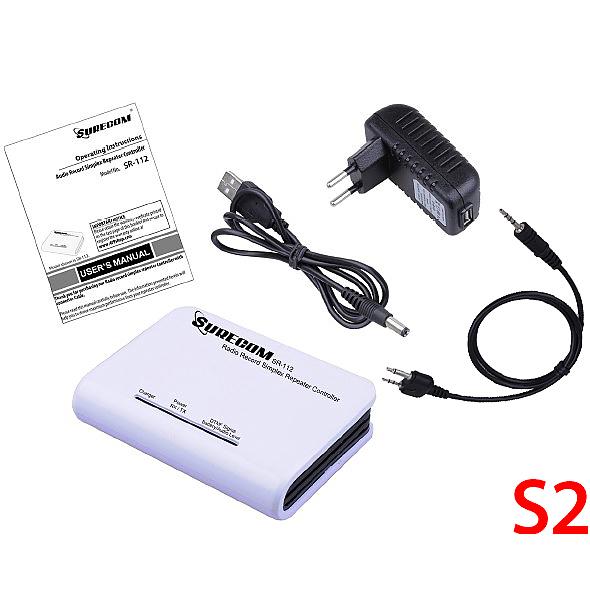

PACKAGE CONTAIN

1 x SR112 Radio record simplex repeater Controller
1 x 100-240V power supply unit or ( DC Cable W/PSU)
1 x Radio connect cable(46- S2 Cable)
1 x English Manual














 SR-112 simplex repeater

 SR-328 Duplex Repeater






Fit For Model
MOTOROLA
GP-68 GP-88...
Fit For Model
3.5mmMOTOROLA Talkabout
Fit For Model
KENWOOD
CHINA Radio
Fit For Model
ICOM
Fit For Model
MIDLAND
Fit For Model
YAESU FT-60R
Fit For Model
YAESU VX-7R
Fit For Model

 SURECOM SR-112 with Cable
Motoroal 2pin Motorola 2.5mm Kenwood
China
ICOM 2 pin MIDLAND

YAESU VX-3R FT-60R YAESU VX-7R VX-6R







 SR series Radio connect cable
Motoroal 2pin Motorola 2.5mm Kenwood
China
ICOM 2 pin MIDLAND

 YAESU VX-3R YAESU VX-7R




Attenuator

Duplexer  20W / 35W / 50W

( Request High and Low frequency for Factory testing.
Please mark on paypal payment note )



 PCB for MOTOROLA GM300 Repeater Cable:

 Linear Power Amp:
 Frequency Counter :

Frequency Counter  With Power Meter

Frequency Counter  With CTCSS / DCS SCAN

  Battery for Frequency Counter :

 Lightning Arrester :

 SWR meter :

Splitter :
