編號: 1 x PX680D
名稱: 1 x PUXING PX-680D UHF 400~470MHZ Digital Radio Transceiver

優惠價: HKD 953.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


PX680D

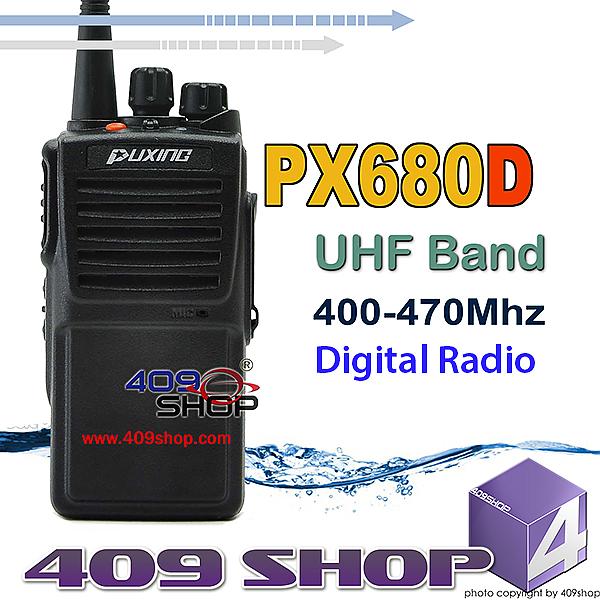

PUXING PX-680D UHF 400~470MHZ Digital Radio Transceiver

Keys defined Voice function prompt,channel dial keys alarm(4 types alarm modes) high performance fast priority scan(TO/CO/SE) Whisper High performance DSP voice companding Scrambler Battery capacity measure and voice notice

  • Man down alarm
  • Voice function prompt,channel dial
  • Keys alarm
  • Whisper
  • PTT ID
  • Commercial 16CH

GENERAL

Frequency Range

400-470Mhz

Operating Voltage

-20~+50

Operate Mode

Simplex or Semi-duplex

Dimension

132mm x 63mm x 33mm(Not included antenna)

Weight

263g(Including battery)

Antenna Impedance

50 Ω

TRANSMITTER

Frequency Stability

±2.5PPM

Output Power

≤5W

Max Frequency Deviation

≤5KHz

Audio Distortion

≤5%

Modulation Character

+3dB~-3dB

Adjacent Channel Power

≥65dB

Spurious Radiation

≤7.5uW

Occupied Bandwidth

≤16KHz

RECEIVER

Sensitivity

-120.0dBm

Audio Distortion

≤5%

Audio Response

+2dB~-10dB

Co-Channel Rejection

≥-8dB

Adjacent Channel Selectivity

≥55dB

Intermodulation Rejection

≥55dB

Spurious Response

≥55dB

Blocking

≥85dB

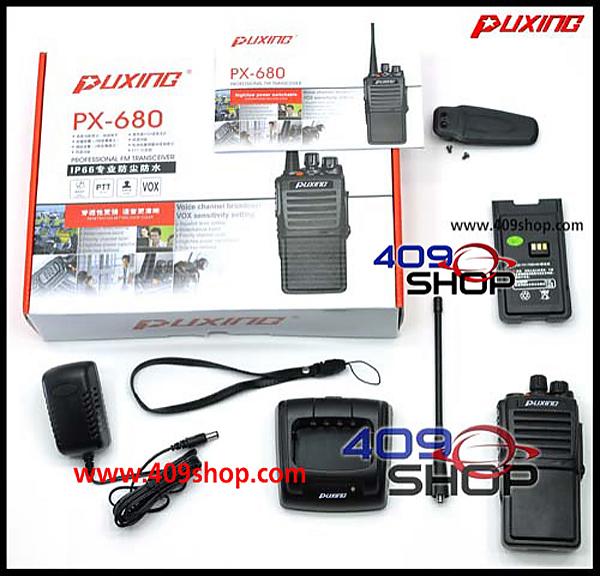

Each Set PACKAGE CONTAIN
  • 1 x PUXING PX680D (UHF 400-470MHZ) Digital Radio Transceiver

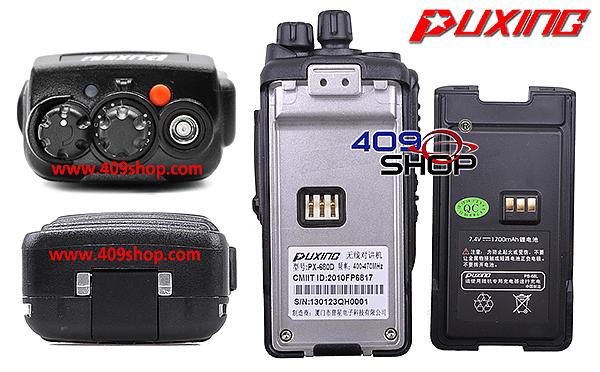

  • 1 x 7.4V 1700mah Li-ion Battery Pack
  • 1 x UHF Antenna
  • 1 x Belt Clip
  • 1 x ENG Manual
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x PTT Earpiece for free







PUXING PX-680

PUXING PX-680 Antenna
