Item number
|

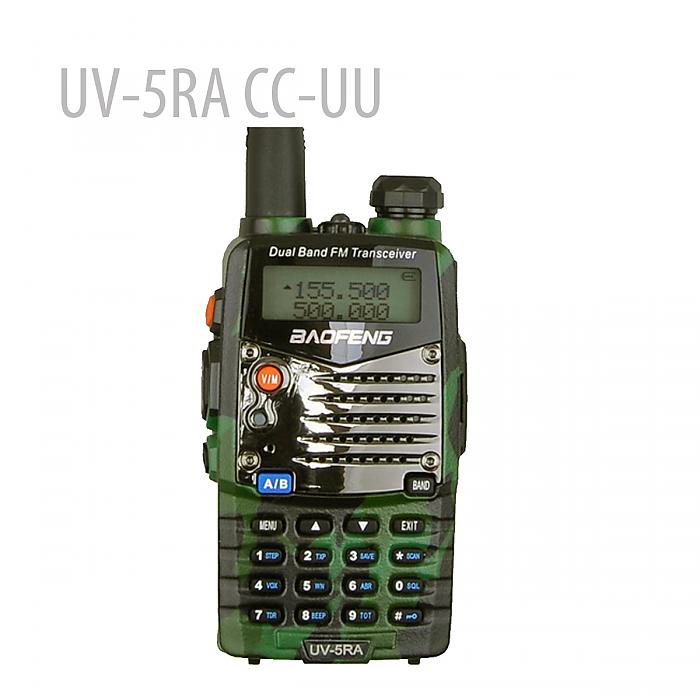

UV5RA-CC-UU
|
|
General
|
|
Frequency Range
|
65-108MHz(FM Receive only)
|
|
136-174MHZ and 400-520MHZ (TX/RX)
|
|
Channel No.
|
128
|
|
Frequency Stability
|
±2.5ppm
|
|
Antenna
|
High gain DualBand antenna
|
|
Antenna Impedance
|
50Ω
|
|
Operating Voltage
|
DC 7.4V
|
|
Mode of operation
|
Simple or semi-duplex
|
|
Dimension（W x H x D）
|
58 x 110 x 32 mm
|
|
Weight
|
250g（including battery, antenna）
|
|
Transmitter
|
|
Output power
|
4W / 1W (Max 5W)
|
|
Modulation Mode
|
16kΦF3E / 11kΦF3E
|
|
Maximum deviation
|
＜5kHz(Wide) / ＜2.5kHz(Narrow)
|
|
Spurious Radiation
|
＜7μW
|
|
Adjacent Ch. power
|
≤-65dB(Wide) / ≤-60dB(Narrow)
|
|
Pre-emphasis characteristics
|
6dB
|
|
Current
|
≤1.6A(5W)
|
|
CTCSS/DCS deviation
|
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
|
|
Intermediation sensitivity
|
8-12mv
|
|
Intermediation distortion
|
＜10%
|
