編號: 1 x MYT-DP201U
名稱: 1 x MYT MYT-DP201U 400-470MHZ TWO-WAY RADIO

優惠價: HKD 773.00
貨幣單位:: HKD
數量: 0
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


 MYT-DP201U

1 x MYT MYTDP201U 400-470MHZ TWO-WAY RADIO



Features

CTCSS/DCS
Scan
Backlight
FM radio
Keypad lockout
High/low power selective
BCL function
Chinese and English voice prompt
VOX function
TOT function

Specifications



model

MYT-DP201U

General Specifications

Power Supply

7.4V DC ±20%

Operating Temperature

-30℃~ + 60℃

Number of Channels

128

Dimensions

125*60*37mm

Weight

230g

Transmitter Specifications

Frequencies - Full Band Split

UHF: 400MHz~470MHz

Frequency Stability(-25 to 55, 25 Ref)

2.5ppm

Power Output

5W

Modulation Limiting

±≤5KHz@25KHz

FM Hum & Noise

45dB@25KHz,

Conducted/Radiated Emission

-36dBm < 1GHz, -30dBm > 1GHz

Adjacent Channel Power

-65dB @ 25KHz,

Audio Response (300-3000Hz)

+3 ~ -3 dB

Audio Distortion

< 5%

Receiver Specifications

Frequencies - Full Bandsplit

UHF: 400MHz~470MHz

Sensitivity(12 dB SINAD)EIA

0.25μV@12.5KHz/25KHz typical

Intermodulation EIA

60 dB

Adjacent Channel Selectivity

65 dB@20/25KHz

Spurious Rejection

70 dB

Rated Audio

1W

Audio Distortion @ Rated Audio

5%

Audio Response (300-3000Hz)

+3 ~ -3 dB

Conducted Spurious Emission

-58 dBm<1 GHz, -47 dBm>1GHz



Earpiece / mic type : MT Plug type
Antenna : SMA -Female

Photo will have chromatic aberration compared with the product

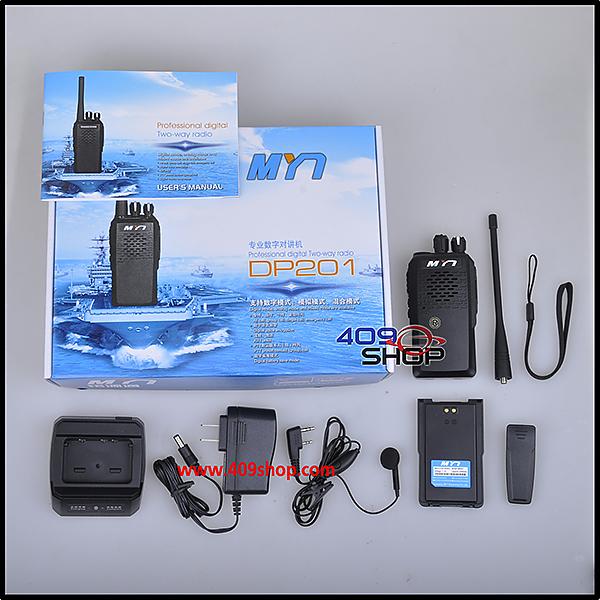

Each Set PACKAGE CONTAIN
  • 1 x MYT MYT-DP201U UHF 400-470Mhz Radio
  • 1 x 7.4V 1800mah Li-ion Battery Pack.
  • 1 x Sma-Female 400-470Mhz Antenna
  • 1 x Wrist Strap
  • 1 x Belt Clip
  • 1 x English Manual
  • 1 x Earpiece
  • 1 x Desktop Charger *
    *100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)

CD
