編號: 1x UV-8R W/3800
名稱: 1x RONSON UV-8R UH Radio Upgrade 3800mah Battery

優惠價: HKD 484.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


UV-8R W/3800

RONSON UV8R BLACK 5W Dual Band 136-174/400-480MHZ

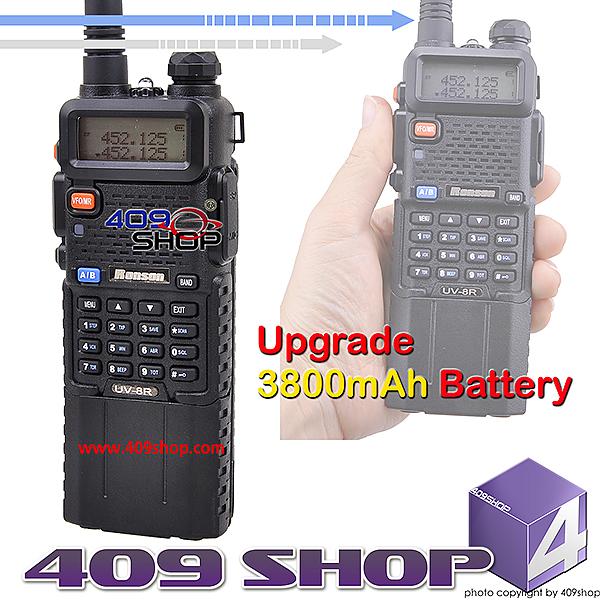

(with Upgrade Version 3800Mah Battery)

VHF/ UHF DUAL-BAND TWO WAY RADIO

  • Frequency Range: 136-174 / 400-480MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 5Watts
  • 128 Channels
    50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • Hight /Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET

Dual band, dual display, dual standby A/B band independent operation
128 groups channels storage Shortcut menu operation mode
VFO & Memory channels scan Emergency Alarm
Tri-color background light selectable 0~9 grades VOX selectable
PTT & ANI ID FM radio and 25 stations storage
Voice companding 50 CTCSS/104 DCS
PC programmable
Wide/Narrow Band(25kHz/12.5kHz) Transmitter time-out timer(TOT)
High/Low TX power selectable Busy channel lock-out(BCLO)

Specifications:

Item number UV-8R
General
Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-480HZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
DimensionW x H x D 100 x 52 x 32 mm
Weight 250gincluding battery, antenna
Transmitter
Output power 5W
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation 5kHz(Wide) / 2.5kHz(Narrow)
Spurious Radiation 7μW
Adjacent Ch. power -65dB(Wide) / -60dB(Narrow)
Pre-emphasis characteristics 6dB
Current 1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion 10%

Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female

Photo will have chromatic aberration compared with the product

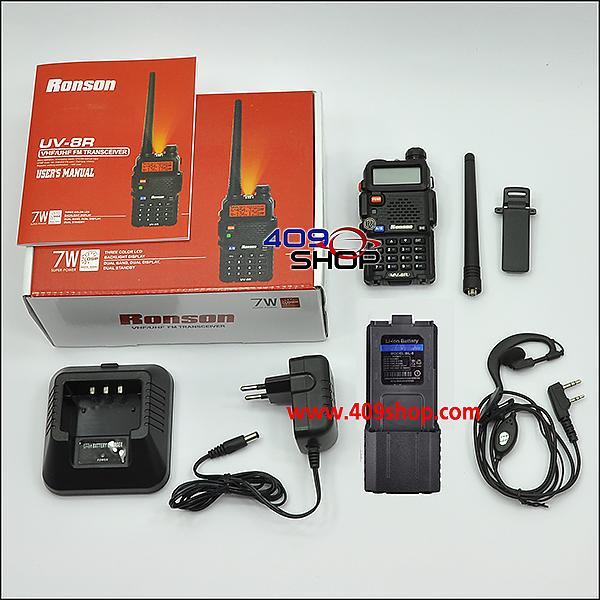

Each Set PACKAGE CONTAIN
  • 1 x RONSON UV-8R 5W (VHF 136-174Mhz and UHF 400-480Mhz)
  • 1 x 7.4V 3800mah Li-ion Battery Pack
  • 1 x Antenna
  • 1 x Belt Clip
  • 1 x ENG Manual
  • 1 x Desktop Charger (100V ~ 240V)2 pin for USA & EURO or 3 pin for UK
  • 1 x Earpiece
