HT910U+4-001K

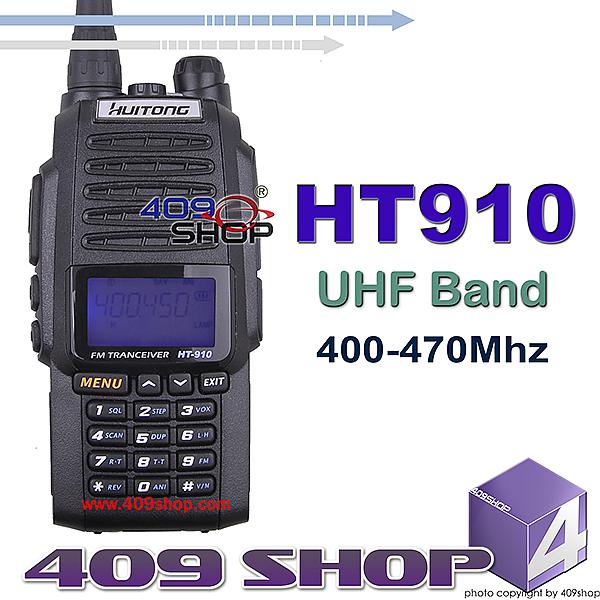

HUITONG HT910 UHF 400-470MHZ RADIO
Description:
HT-910 Frequency modulation hand held intercom. The machine is in novel design, stable behavior, exploit the product to satisfy the functions: portable equipment, easily operate and vari-fine-functions.
Features:
Frequency Range: UHF 400-470MHZ
199 Channels
VOX Sonic emission function
FM Transceiver
Emergency alarm function
Built-in CTCSS / DCS functions
LED Light flashlight function
LCD Colorful screen backlight
Voice prompts (Chinese / English)
Specifications:
|
Item name
|
HT910U
|
|
General
|
|
Frequency Range
|
400-470MHZ
|
|
Channel No.
|
199
|
|
Operating temp.
|
-20℃- +50℃
|
|
Operating Voltage
|
DC7.4 V
|
|
Working manner
|
Same frequency simplex operation or different frequency simplex operation
|
|
Antenna Impedance
|
50Ω
|
|
Volume
|
126X59X34 mm
|
|
Launching parts
|
|
Output power
|
5W/1W
|
|
Modulation
|
F3E
|
|
Modulation Limiting
|
≤±5KHz(N) / 2.5 KHz(W)
|
|
Spurious Emission
|
<-60dB
|
|
Adjacent channel power
|
>/ 65 dB
|
|
Receiving parts
|
|
Sensitivity
|
＜0.2μV (12 dB SINAD)
|
|
Adjacent channel selectivity
|
>/60dB
|
|
Intermodulation
|
>/65dB
|
|
Audio Power Output
|
500mW
|
|
Audio Distortion
|
<3%
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
Photo will have chromatic aberration compared with the product

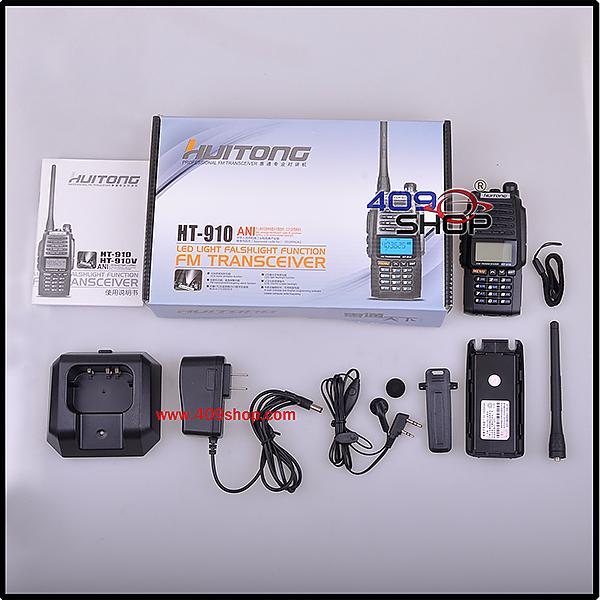

- 1 x NEW HUITONG HT910 UHF 400-470MHZ RADIO
- 1 x 7.4V 1500mAh Battery Li-ion Battery Pack
- 1 x SMA-Female Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free
