HT222U

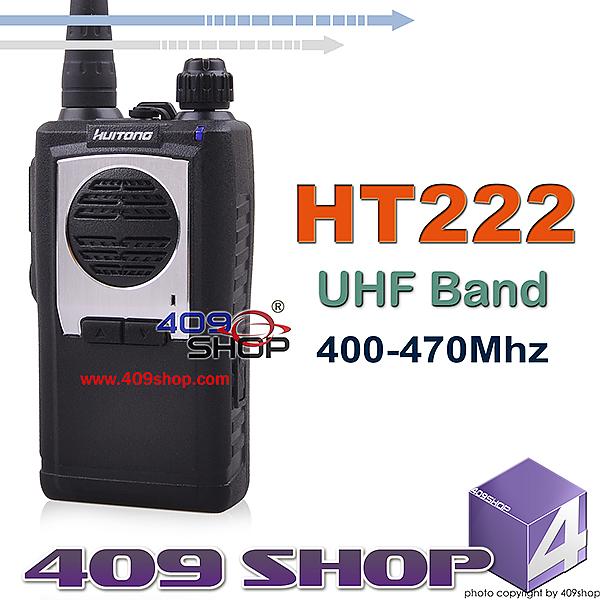

HUITONG HT-222 UHF 400-470MHZ RADIO
Description:
HT-222 Frequency modulation hand held intercom. The machine is in novel design, stable behavior, exploit the product to satisfy the functions: portable equipment, easily operate and vari-fine-functions.
Features:
- Frequency Range: UHF 400-470MHZ
- 16 Memory Channels
- Power ≤5W
- Built-in CTCSS / DCS functions
- Low voltage indication
- Voice prompts (Chinese / English)
Specifications:
|
Item name
|
HT222 U
|
|
General
|
|
Frequency Range
|
400-470MHZ
|
|
Rated Voltage(DC)
|
DC3.7V (Chargeable LI-ION Battery)
|
|
Channel No.
|
16 channels
|
|
Antenna
|
Inductively loaded antenna
|
|
Antenna Impedance
|
50Ω
|
|
Working manner
|
Same frequency simplex operation or different frequency simplex operation
|
|
Ground method
|
Negative pole
|
|
Volume
|
105X54X28
|
|
Launching parts
|
|
Output power
|
≤5W
|
|
Modulation mode
|
Frequency modulation
|
|
Maximum frequency deviation
|
≤5KHz
|
|
Repand radiation
|
<-60dB
|
|
Preemphasis character
|
Per fold frequency patch 6dB
|
|
Emission current
|
≤ 1200mA
|
|
Receiving parts
|
|
Sensitivity
|
＜0.16μV (12 dB SINAD)
|
|
Silent Sensitivity
|
＜0.2μV
|
|
Inter modulation interference resistance
|
>/50dB
|
|
Sound frequency power
|
500mW
|
|
Receiving current
|
≤ 100mA
|
|
Silent waiting
|
20 mA
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
Photo will have chromatic aberration compared with the product

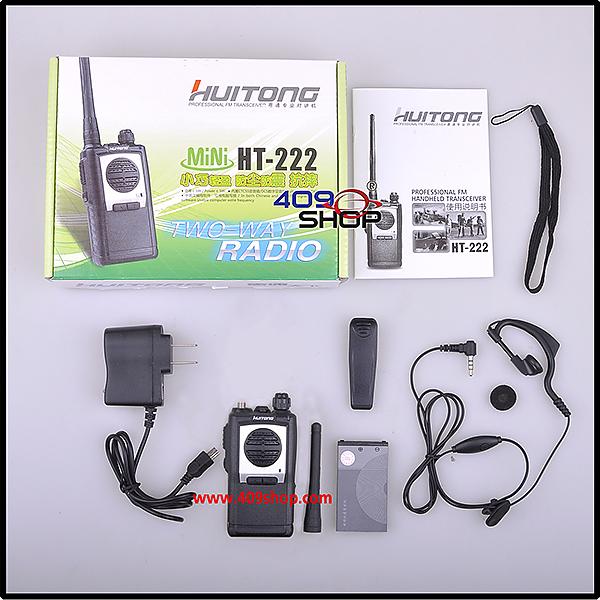

- 1 x NEW HUITONG HT222 UHF 400-470MHZ RADIO
- 1 x 3.7V 2500mAh Battery Li-ion Battery Pack
- 1 x SMA-Male Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Wall PSU (2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free
