編號: 1x THUVF8D-UU+4-001K
名稱: 1x TYT THUVF8D-UU 136-174/400-520MHZ Scrambler Radio對講機

優惠價: HKD 390.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


THUVF8D-UU+4-001K

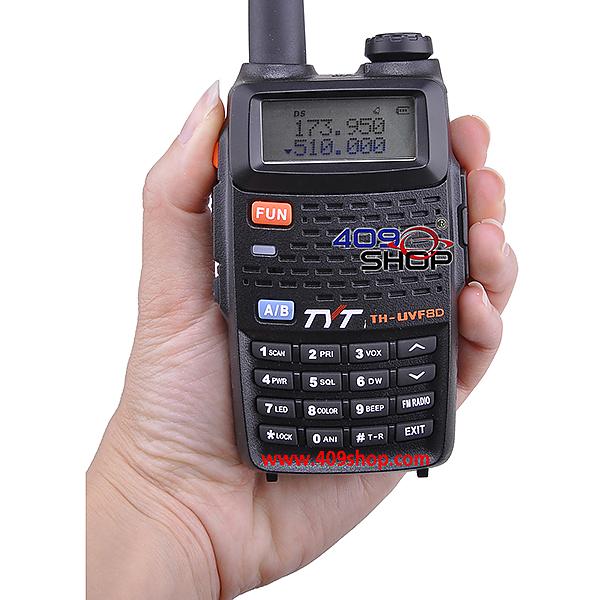

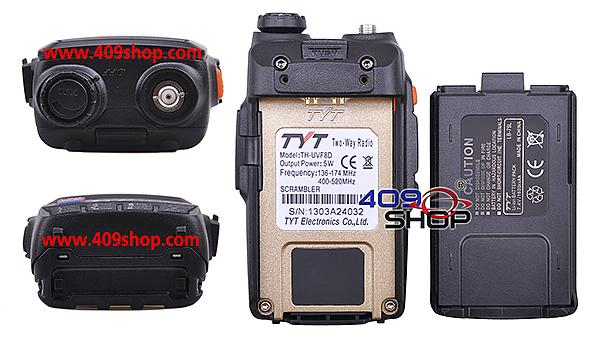

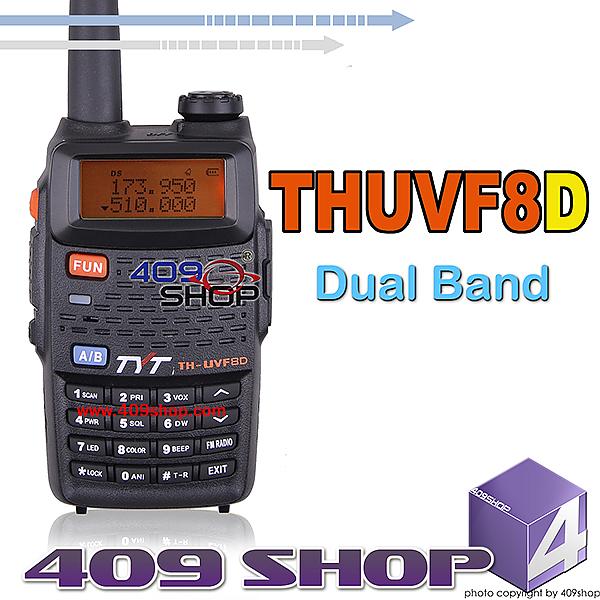

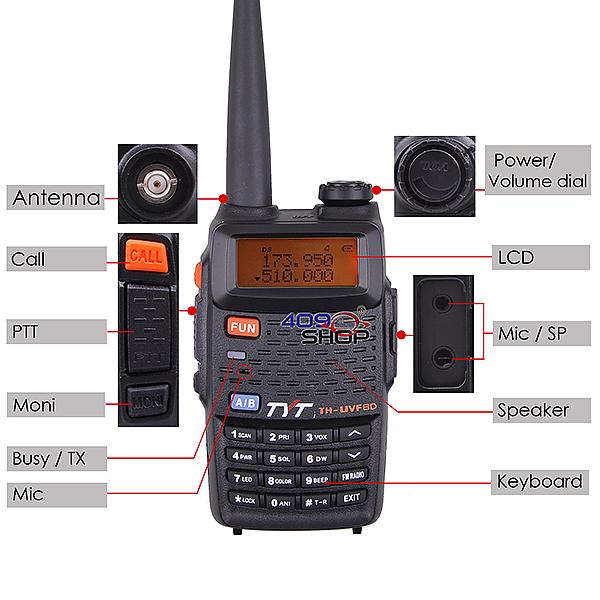

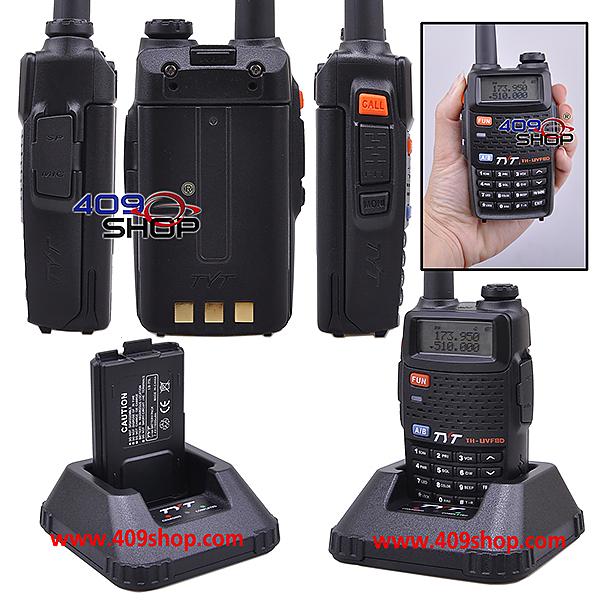

TYT THUVF8D-UU 136-174/400-520MHZ Dual Band Radio

Features:



VHF/UHF Dual Band, Dual Display, Dual Standby


Dual Band, Dual display, dual standby


2 x 128 channels to store


FM Radio receiver and 20 channels


Channel spacing selectable (25/12.5 kHz)


Handsfree VOX function


 50 CTCSS tones and 210 DCS codes


 Scan of frequencies with CTCSS/DCS


 Low battery vocal indication


 SOS emergency function


 Shift repeater function


 ANI Function


 DTMF & Remote kill/stun function


 Talkaround function


 Reverse frequency function


 Compander & 8 groups Scrambler







Item number

THUVF8D-UU

General

Frequency Range

136-174MHz

400-520MHz

Channel No.

2 x 128

Frequency Stability

±2.5ppm

Antenna

High gain antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.2V (Rechargeable LI-ion Battery)

Mode of operation

Simple or semi-duplex

DimensionW x H x D

110 x 58 x 32 mm

Weight

633gincluding battery, antenna

Transmitter

Output power

VHF:5W/1W UHF:4W:0.5W

Modulation Mode

16kΦF3E / 11kΦF3E

Maximum deviation

5kHz / 2.5kHz

Spurious Radiation

7.5μW

Adjacent Ch. power

≤-65dB/ ≤-60dB

Pre-emphasis characteristics

6dB

Current

≤1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz / 0.4±0.1kHz

Intermediation sensitivity

8-12mv

Intermediation distortion

5%

Receiver

RF Sensitivity

-122dBm(12 dB SINAD)

Audio power

1W

Audio Distortion

<10%

Intermediation

>/60 dB >/55 dB

Selectivity

>/65 dB >/60 dB

Spurious Rejection

>/65 dB

Blocking

>/85 dB
































































































**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.







































 Photo will have chromatic aberration compared with the product

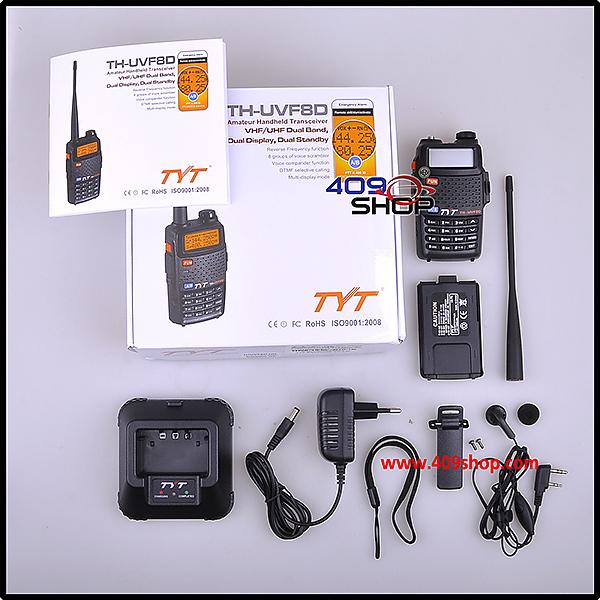

Each Set PACKAGE CONTAIN
  • 1 x NEW TYT THUVF8D-UU Dual Band Radio (136-174/400-520MHZ)
  • 1 x 7.4V 1600mAh Battery Li-ion Battery Pack
  • 1 x Dual Band SMA-Male Antenna
  • 1 x Belt Clip
  • 1 x ENG Manual
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x PTT Earpiece for free
