UV-9A-UU

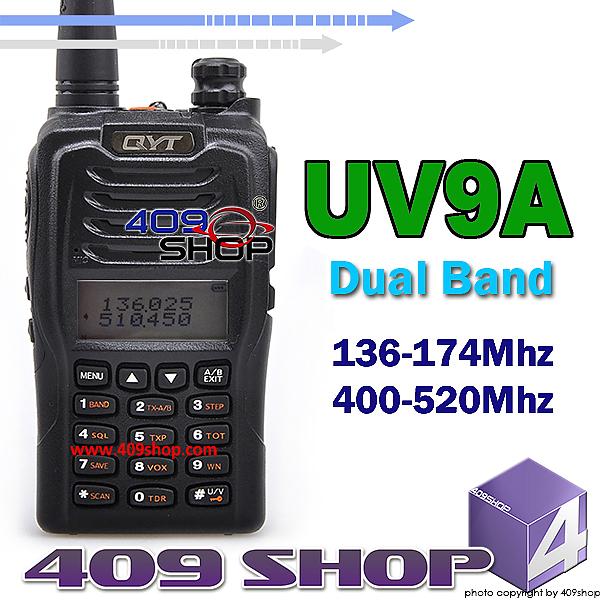

QYT UV9A-UU 136-174/400-520MHZ Dual Band Radio
Description:
- DUAL BAND, DUAL DISPLAY, DUAL STANDBY
- VFO/Channel MODE Switch
- 65-108Mhz FM RADIO
-Emergency Alarm
-Ani Code
-Call Tone 1750Hz
-Dtmf Code
-Repeater Working
-Confirmation
-CTCSS Manual INPUT
Specifications:
|
Item name
|
UV9A-UU
|
|
General
|
|
Frequency Range
|
65-108MHZ (ONLY commercial FM RADIO Reception
|
|
136-174MHZ / 400-520MHZ(RX/TX)
|
|
Channel No.
|
UP to 128 channels
|
|
Frequency stability
|
2.5ppm
|
|
Frequency step
|
5kHz/6.25 kHz/10 kHz/12.5 kHz/25 kHz
|
|
Antenna Impedance
|
50Ω
|
|
Operating Temperature
|
-20 ℃ ~ +6 0 ℃
|
|
Supply Voltage
|
Rechargeable Lithium-Ion mAh7.4V/1500
|
|
Consumption in standby
|
≤75mA
|
|
Consumption in reception
|
380mA
|
|
Consumption in transmission
|
≤1.4A
|
|
Mode of Operation
|
Simplex or semi-duplex
|
|
Duty cycle
|
03/03/54 min.(RX/TX/Standby)
|
|
Dimensions
|
58 x 17 x 36 mm
|
|
Weight
|
569g (including battery, antenna)
|
|
Transmitter
|
|
Output power
|
VHF:5W/1W UHF:5W/1W
|
|
Type of modulation
|
FM
|
|
Emission class
|
16K F3E/11K F3E (W/N)
|
|
Maximum deviation
|
≤±5KHz /≤±2.5 KHz (W/N)
|
|
Spurious emission
|
< -60dB
|
|
Receiver
|
|
Sensitivity
|
0.2Μv (at 12 dB SUNAD)
|
|
Intermodulation
|
60dB
|
|
Audio output
|
500mW
|
|
Adjacent channel selectivity
|
65/60dB
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
Photo will have chromatic aberration compared with the product

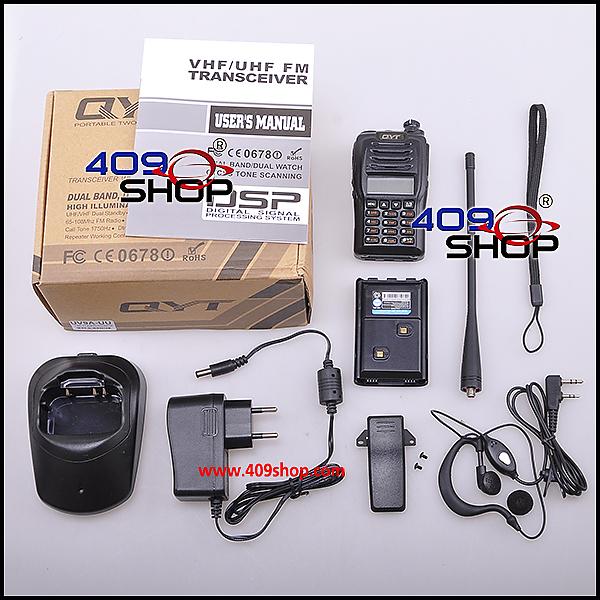

- 1 x QYT UV9A-UU Dual Band Radio (VHF 136-174Mhz and UHF 400-520MHZ )
- 1 x 7.4V 1500mah Li-ion Battery Pack
- 1 x Dual band Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x Earpiece with PTT
