NKT-R5+4-002R
NKT NKTR5 Dual Band FM 136-174/400-470Mhz Transceiver
Description:
·Full Range Design /Keypad Operation
·Dual Display, Dual Standby
·Professional Quality, Built Solid
·Handsfree VOX/CTCSS/DSC Tone
·Low Voltage Alarm/ Battery Save
·Priority Channel Scan
·Emergency Alarm
·FM Radio
·Keypad Lock
·Busy Channel Lockout
·Lamp Function
·Dual-band
·Self-switch off Function
Specifications:
|
Item name
|
NKT-R5
|
|
General
|
|
Frequency Range
|
136-174MHZ
|
| 400-470HZ (TX/RX) |
|
Channel No.
|
100
|
|
Battery Capacity
|
1200 mAh/ Li-ion battery
|
|
Operating voltage
|
7.4V
|
|
Antenna Impedance
|
50Ω
|
|
Speaker Impedance
|
8Ω
|
|
Frequency stability (-20℃-+60℃)
|
± 2.5ppm
|
|
Distortion
|
<3%
|
|
Dimension（H x W x D）
|
115 X 58 X 35.5mm
|
|
Weight
|
407g（including battery, antenna）
|
|
RF Power Output
|
VHF 5W/UHF 4W
|
|
Modulation Mode
|
F3E
|
|
Residual Wave Radiation
|
60dB
|
|
Channel Power
|
70dB
|
|
Audio distortion
|
≤ 5%
|
|
Receive Sensitivity
|
0.18μV
|
|
S/N
|
42dB
|
|
Audio Output Power
|
500mW
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
Photo will have chromatic aberration compared with the product

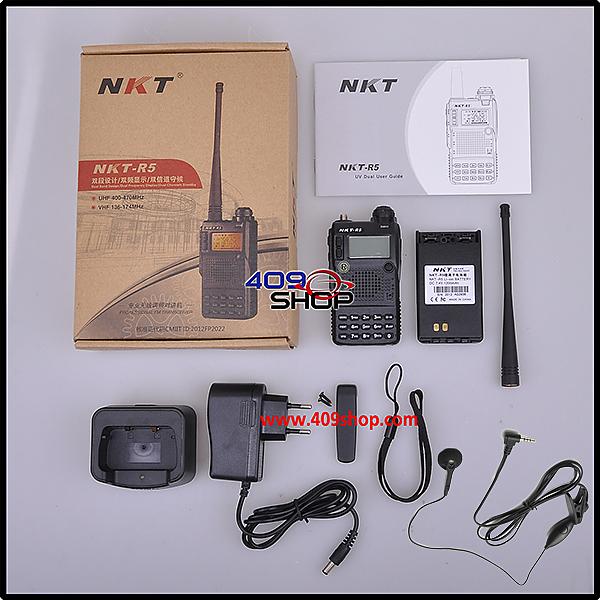

- 1 x NKT NKT-R5 Dual Band FM Transceiver (VHF 136-174/UHF 400-470Mhz )
- 1 x 7.4V 1200mah Li-ion Battery Pack
- 1 x Dual band Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x Earpiece with PTT
