HR79DV

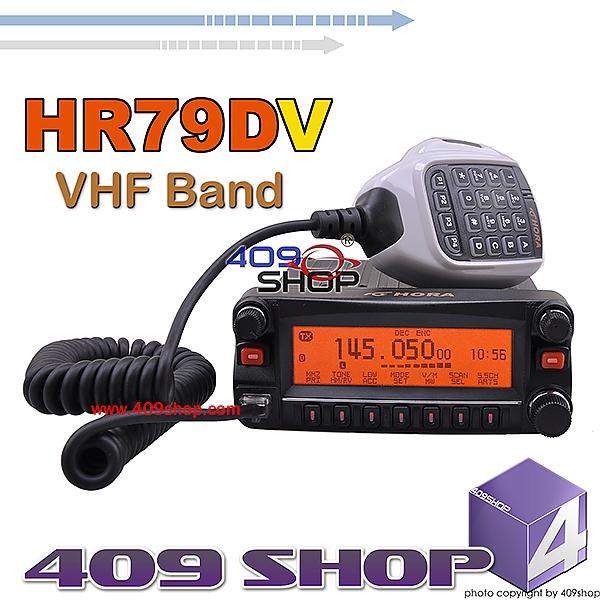

HORA HR-79D VHF 136-174MHZ MOBILE RADIO
Analog mode, digital mde,
mixed analog/
digital mode.
Description:
FDMA modulation with 6.25K channels
Super High security
999 channels with 20 Zones, each Zone with 50 channels
More than 7 codes ID number

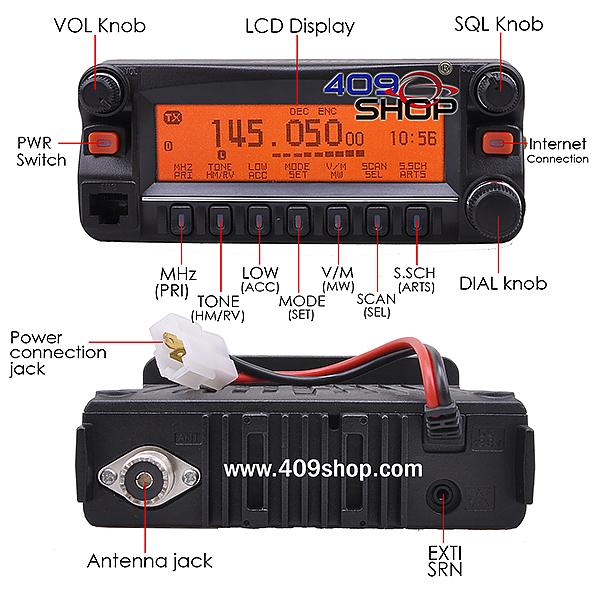

Large programmable buttons
Powerful, front-facing speaker
Specifications:
|
Item name
|
HR79DV
|
|
General
|
|
Frequency Range
|
TX: 136-174MHZ
|
|
RX:136-174MHX
|
|
Channel steps
|
5/6.25/10/12.5/20/25/50/100 KHZ
|
|
Channel
|
999
|
|
Antenna Impedance
|
50Ω
|
|
Supply Voltage
|
DC 13.8V (±15%)
|
|
Current Consumption: (DC 13.8V)
|
TX: 50W ≤10A
|
|
|
RX: ≤0.7A
|
|
Standby
|
300mA
|
|
Temperature
|
-20℃ ~ + 60℃
|
|
Dimension（W x D x H）
|
205 X 142 X 56mm
|
|
Weight
|
1375g（including battery, antenna）
|
|
Transmitter
|
|
Output power
|
5W/15W/10W/5W
|
|
Frequency Stability Factor
|
±2.5ppm
|
|
Maximum Frequency Deviation
|
≤±5KHz
|
|
Spurious Emissions
|
65dB
|
|
Audio Distortion
|
3%
|
|
Receiver
|
|
Intermediate Frequencies
|
46.35MHZ/450kHz (1st/2nd)
|
|
Sensitivity
|
FM 0.2Uv MORE THAN 12dB
|
|
|
DATA 0.25Uv MORE THAN 3%
|
|
Clutter response
|
70 dB
|
|
Intermodulation
|
70 dB
|
|
Audio Output Power
|
4W / 8Ω (less than 3% distortion)
|
Photo will have chromatic aberration compared with the product
|
|

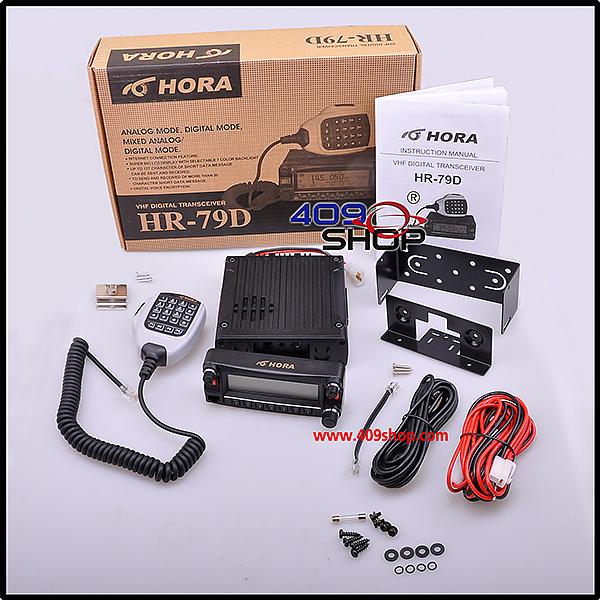

- 1 x HORA HR-79D VHF 136-174MHZ MOBILE RADIO
