TGK4ATUV+4-001K
手機版購買: https://409mall.com/product/jcCbJSGXVb9Vuao4

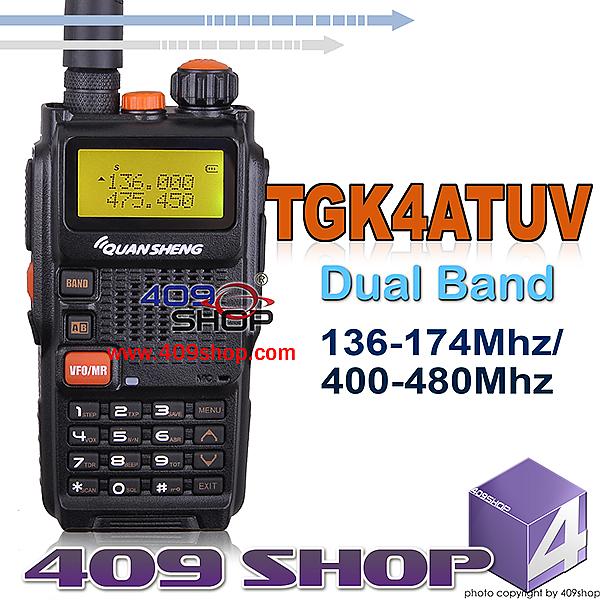

QUANSHENG TGK4ATUV DUAL BAND 136~174MHZ/400-480MHZ RADIO
Description:
- Same / different frequency
- Computer Programming
- Initialization
- Stepping frequency 5k/10k/12.5k/25k
- CTCSS/DCS function
- Language voice (chinese on/off)
- Keyboard manually enter the frequency
- Channel frequency dual display mode
- Monitor scan function
- Level of power conversion
- Automatic power saving features to extend battery life
- Low power alarm function
- Distance calls generally 5KM affected by the environment
- Scan function: frequency and channel scan
- Clear memory function
Specifications:
|
Item name
|
TGK4ATUV
|
|
General
|
|
Frequency Range
|
136-174MHZ / 400-480MHZ (TX/RX)
|
|
|
|
Channel No.
|
128
|
|
Channel spacing
|
25 / 12.5KHz
|
|
Operating voltage
|
7.2V
|
|
Antenna Impedance
|
50Ω
|
|
Operating Temperature Range
|
25 ℃ ~ +65 ℃
|
|
Frequency stability
|
± 2.5ppm
|
|
Dimension（H x W x D）
|
115 X 58 X 35.5mm
|
|
Weight
|
658g（including battery, antenna）
|
|
Transmitter
|
|
Output power
|
4-5W
|
|
Modulation Mode
|
16KΦF3E/11KΦF3E
|
|
Maximum deviation
|
≤5.0KHz (broadband)
|
|
Spurious emission
|
≤65dB
|
|
Audio distortion
|
≤ 5%
|
|
Receiver
|
|
Sensitivity
|
≤ 0.25/0.28μV
|
|
Adjacent Channel Selectivity
|
70/50dB
|
|
Intermodulation
|
60dB
|
|
Spurious Response Rejection
|
70dB
|
|
Signal-to-noise ratio
|
43/38dB
|
|
Rated audio output power
|
≤0.5W
|
|
Rated Audio Distortion
|
≤ 5%
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
Photo will have chromatic aberration compared with the product

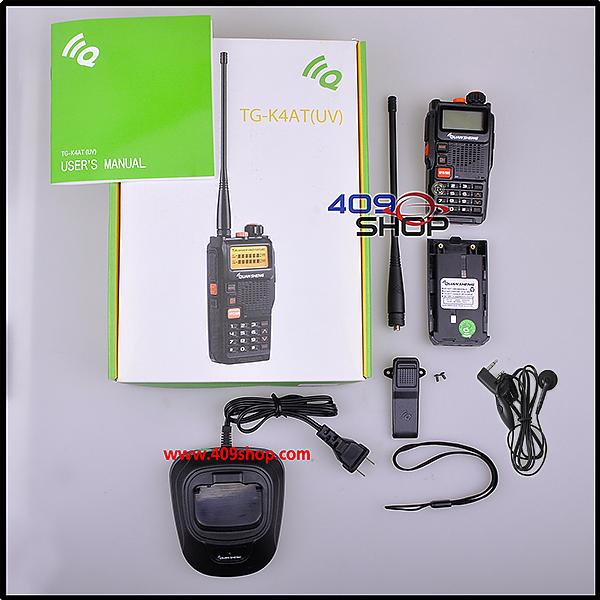

- 1 x Quansheng TGK4ATUV Radio (VHF 136-174Mhz and UHF 400-480MHZ)
- 1 x 7.4V 2000mah Li-ion Battery Pack
- 1 x Dual band Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x Earpiece with PTT
