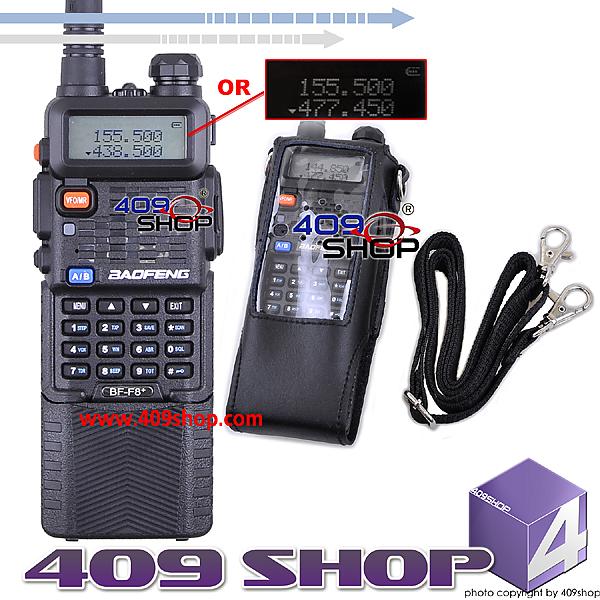

BFF8-PLUS w/2-123+SC38
BAOFENG BFF8PLUS 136-174/400-480Mhz RADIO
(with Upgrade Version 3800Mah Battery)
(Extended soft case with belt)
BAOFENG BFF8-PLUS The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
VHF/ UHF DUAL-BAND TWO WAY RADIO
- Frequency Range: 136-174 / 400-480MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 4 /1Watts
- 128 Channels
50 CTCSS and 104 CDCSS
- Built-in VOX Function
- 1750Hz Brust Tone
- FM Radio (65.0MHz-108.0MHz)
- LED Flashlight
- Large LCD Display
- High/Low RF Power Switchable
- 25KHz/12.5KHz Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 2.5/5/6.25/10/12.5/25KHz
- ROGER SET
|
BAOFENG BF-F8-PLUS Compare Products |
|
|
■ Dual band, dual display, dual standby |
■ A/B band independent operation |
|
■ 128 groups channels storage |
■ Shortcut menu operation mode |
|
■ VFO & Memory channels scan |
■ Emergency Alarm |
|
■ Tri-color background light selectable |
■ 0~9 grades VOX selectable |
|
■ PTT & ANI ID |
■ FM radio |
|
■ Voice companding |
■ 50 CTCSS/104 DCS |
|
■ |
■ PC programmable |
|
■ Wide/Narrow Band(25kHz/12.5kHz) |
■ Transmitter time-out timer(TOT) |
|
■ High/Low TX power selectable |
■ Busy channel lock-out(BCLO) |
|
■ |
■ |
|
■ |
■ |
Specifications:
|
Item number |
BFF8-PLUS |
|
General |
|
Frequency Range |
65-108MHz(FM Receive only) |
|
136-174MHZ and 400-480HZ (TX/RX) |
|
Channel No. |
128 |
|
Frequency Stability |
±2.5ppm |
|
Antenna |
High gain DualBand antenna |
|
Antenna Impedance |
50Ω |
|
Operating Voltage |
DC 7.4V |
|
Mode of operation |
Simple or semi-duplex |
|
Dimension（W x H x D） |
100 x 52 x 32 mm |
|
Weight |
250g（including battery, antenna） |
|
Transmitter |
|
Output power |
4W / 1W (Max 5W) |
|
Modulation Mode |
16kΦF3E / 11kΦF3E |
|
Maximum deviation |
＜5kHz(Wide) / ＜2.5kHz(Narrow) |
|
Spurious Radiation |
＜7μW |
|
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
|
Pre-emphasis characteristics |
6dB |
|
Current |
≤1.6A(5W) |
|
CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
|
Intermediation sensitivity |
8-12mv |
|
Intermediation distortion |
＜10% |
Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female
|
- 1 x BFF8-PLUS (VHF136-174Mhz UHF 400-480Mhz)
- 1 x 7.4V 3800mah Li-ion Battery Pack
- 1 X SC38 Soft Case
- 1 x DUAL BAND SMA-FEMALE Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
- 1 x PTT Earpiece for free
