FD-850PLUS + 4-001K
FDC FD850PLUS 400-470MHZ FM Transceiver w/ Earpiece
Features:
|
3500mAh high-capacity lithium polymer battery
|
Low battery alarm function, the boot battery indication function
|
Broadband and narrowband selection
|
|
0.5W/5W/10W high and low power adjustable
|
Limited launch function
|
Key-lock function
|
|
Built-in 50 groups of CTCSS and 104 +1 groups of DCS
|
Alarm calls function
|
Flashlight function
|
|
Speech noise reduction
|
Voice reporting frequency
|
AC adapter directly into the walkie-talkie charge
|
Specification:
|
Model NO.
|
FD-850 Plus
|
|
Frequency Band
|
UHF
|
|
Frequency Range
|
400-470 MHz
|
|
Channel Capacity
|
99
|
|
Operating Voltage
|
7.4V DC ±15%
|
|
Antenna Impedance
|
50Ω
|
|
Channel Spacing
|
12.5KHz/25KHz
|
|
Working Temperature
|
-30 ℃ - +60 ℃
|
|
Frequency Stability
|
±2.5 ppm
|
|
Size (Without Antenna)
|
120(L)X60(W)X40 (D) mm
|
|
Weight(With Battery)
|
About 260g
|
|
Battery
|
3500mAh(Li-ion)
|
|
Transmitter
|
|
RF Power Output
|
0.5-10W
|
|
Modulation Type
|
F3E
|
|
Modulation Distortion
|
< 5%(300-3000Hz)
|
|
Max Freq Deviation
|
< 5kHz(1000kHz When 100%)
|
|
FM Noise
|
<=-45dB
|
|
Receiver
|
|
Sensitivity
|
0.16μV
|
|
Adjacent Channel Selectivity
|
55dB
|
|
Adjacent Channel Selecivity
|
>=70dB
|
|
Noise Respond
|
>=60dB
|
|
Communication Range
|
3-5km(Downtown),6-20km(In the Open Area)
|
|
FM Noise
|
30dB/40dB
|
|
Modulation Type
|
8K/16KF3E
|
|
Audio Power Output
|
500mW When Distortion Less Than 10%
|
|
Audio Distortion
|
< 5%
|
|
Operating Bandwidth
|
±3.75kHz/7.5kHz
|
**本機語言是英語設定，無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.

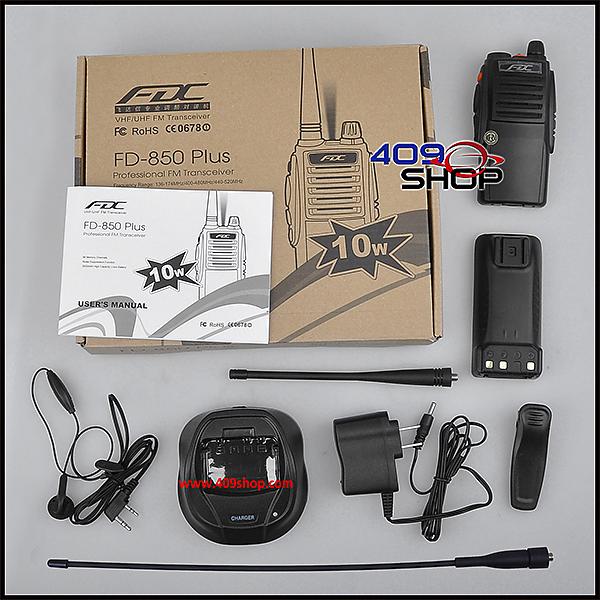

- 1 x FDC FD-850PLUS ( UHF 400-470Mhz)
- 1 x 7.4v 3500mAh Li-ion Battery
- 1 x UHF Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Wall Charger PSU (Provide PSU plug for your Country)
- 1 x PTT Earpiece for free
