編號: UV-5RD
名稱: 寶鋒UV-5RD雙頻對講機VHF136-174Mhz UHF 400-480Mhz

優惠價: HKD 200.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情

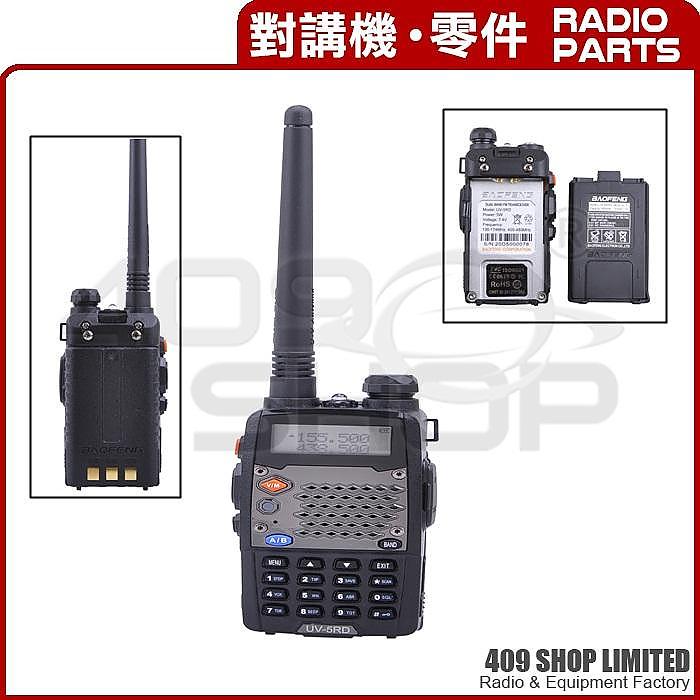

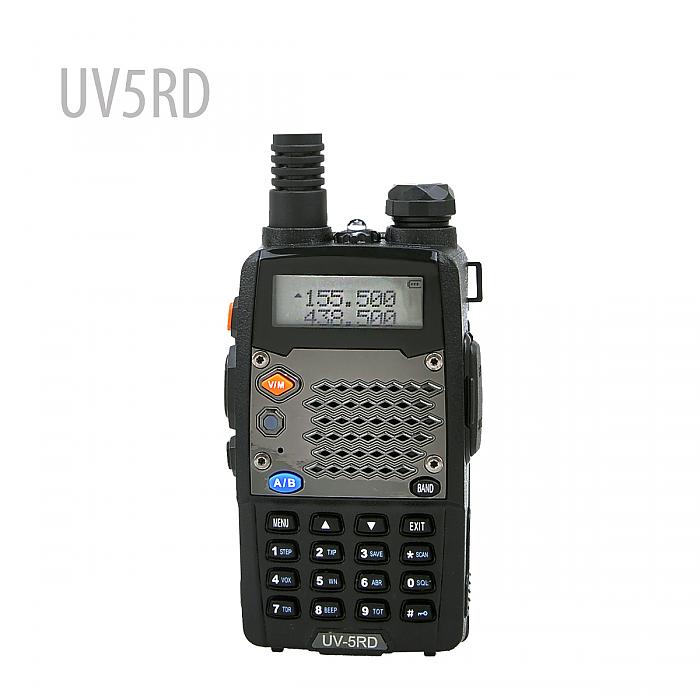

UV-5RD

寶鋒UV-5RD雙頻對講機VHF136-174Mhz UHF 400-480Mhz

BAOFENG UV-5R The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability

VHF/ UHF DUAL-BAND TWO WAY RADIO

  • Frequency Range: 136-174 / 400-480MHz
  • Dual-Band Display, Dual Freq. Display, Dual-Standby
  • Output Power: 4 /1Watts
  • 128 Channels
    50 CTCSS and 104 CDCSS
  • Built-in VOX Function
  • 1750Hz Brust Tone
  • FM Radio (65.0MHz-108.0MHz)
  • LED Flashlight
  • Large LCD Display
  • High/Low RF Power Switchable
  • 25KHz/12.5KHz Switchable
  • Emergency Alert
  • Low Battery Alert
  • Battery Saver
  • Time-out Timer
  • Keypad Lock
  • Monitor Channel
  • Channel Step: 2.5/5/6.25/10/12.5/25KHz
  • ROGER SET



■ Dual band, dual display, dual standby ■ A/B band independent operation
■ 128 groups channels storage ■ Shortcut menu operation mode
■ VFO & Memory channels scan ■ Emergency Alarm
■ Tri-color background light selectable ■ 0~9 grades VOX selectable
■ PTT & ANI ID ■ FM radio
■ Voice companding ■ 50 CTCSS/104 DCS
■ PC programmable
■ Wide/Narrow Band(25kHz/12.5kHz) ■ Transmitter time-out timer(TOT)
■ High/Low TX power selectable ■ Busy channel lock-out(BCLO)

Specifications:

Item number UV5RD
General
Frequency Range 65-108MHz(FM Receive only)
136-174MHZ and 400-480MHZ (TX/RX)
Channel No. 128
Frequency Stability ±2.5ppm
Antenna High gain DualBand antenna
Antenna Impedance 50Ω
Operating Voltage DC 7.4V
Mode of operation Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm
Weight 250g(including battery, antenna)
Transmitter
Output power 4W / 1W (Max 5W)
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation <7μW
Adjacent Ch. power ≤-65dB(Wide) / ≤-60dB(Narrow)
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity 8-12mv
Intermediation distortion <10%
Earpiece / mic type : Kenwood Plug type
Antenna : SMA -Female

PACKAGE CONTAIN
  • 1 x 寶豐UV-5RD雙頻UHF / VHF對講機 (VHF136-174Mhz UHF 400-480Mhz)
  • 1 x 7.4V 1800mah 鋰電池
  • 1 x SMA-FEMALE 天線
  • 1 x 背夾
  • 1 x 英語手冊
  • 1 x 充電器(100V~240V)+(2PIN美國或英國3PIN或2PIN歐元或2PIN澳洲)

1 x PTT聽筒免費

**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
