UVB6
寶豐UV-B6136-174/400-480Mhz FM對講機

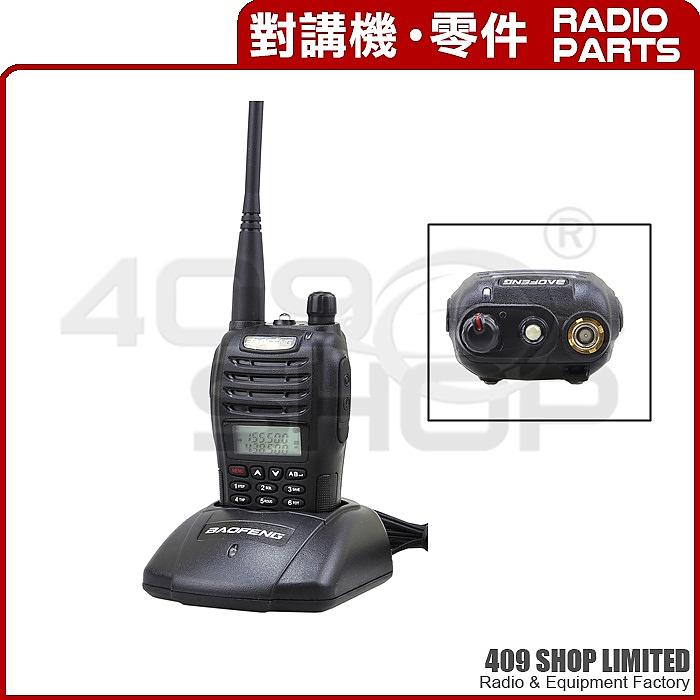

BAOFENG UV-B6 The transceiver is a micro-miniature multiband
FM transceiver with extensive receive frequency coverage,
providing local-area two-way amateur communications along with unmatched monitoring capability
|
Specifications:
- Frequency Range: 136-174 / 400-480MHz
- Dual-Band Display, Dual Freq. Display, Dual-Standby
- Output Power: 4 /1Watts
- 99 Channels
- LED Flashlight
- Large LCD Display
- High/Low RF Power Switchable
- Emergency Alert
- Low Battery Alert
- Battery Saver
- Time-out Timer
- Keypad Lock
- Monitor Channel
- Channel Step: 5/6.25/10/12.5/20/25KHz
|
Item number
|
UV-B6
|
|
General
|
|
Frequency Range
|
65-108MHz(only commercial FM radio reception)
|
|
VHF:136-174MHZ, UHF 400-480HZ (TX/RX)
|
|
Memory channels:
|
Up to 99 channels
|
|
Frequency Stability
|
±2.5ppm
|
|
Frequency Step:
|
5kHz/6.25kHz/10kHz/12.5kHz/20kHz/25kHz
|
|
Antenna Impedance
|
50Ω
|
|
Operating Temperature
|
-20 to +60 ‘C
|
|
Supply voltage
|
Rechargeable Lithium-lon mAh 7.4V/1800
|
|
Mode of operation
|
Simple or semi-duplex
|
|
Dimension（W x H x D）
|
116.2 x 57.9 x 35.7 mm
|
|
Weight
|
549g（including battery, antenna）
|
|
Transmitter
|
|
Output power
|
5W / 1W
|
|
Adjacent Channel Power
|
45dB/42dB
|
|
Maximum deviation
|
＜±5kHz(Wide) / ＜±2.5kHz(Narrow)
|
|
Spurious Radiation
|
＜7.5μW
|
|
Adjacent Ch. power
|
≤-65dB / ≤-60dB
|
|
Receiver
|
|
|
Receiver sensitivity
|
-122dBm(at 12 dB SINAD)
|
|
Intermediation
|
65dB
|
|
Audio output
|
1W
|
|
Adjacent channel selectivity
|
65dB/60dB
|
|
Spurious response
|
65dB
|
|
Receiving current
|
≤380mA
|
Earpiece / mic type :K Plug type
Antenna : SMA -Female
Photo will have chromatic aberration compared with the product
|
- 1 x 寶豐UV-B6136-174/400-480Mhz FM對講機
- 1 x 7.4V 2000MAh 鋰電池
- 1 x 天線。
- 1 x 背夾
- 1 x 英語手冊
- 1 x 充電器，有線/電源（PSU提供插件為你的國家）
- 1 x PTT聽筒免費
- 1 x 腕帶
|
|
|
|
