UVB5

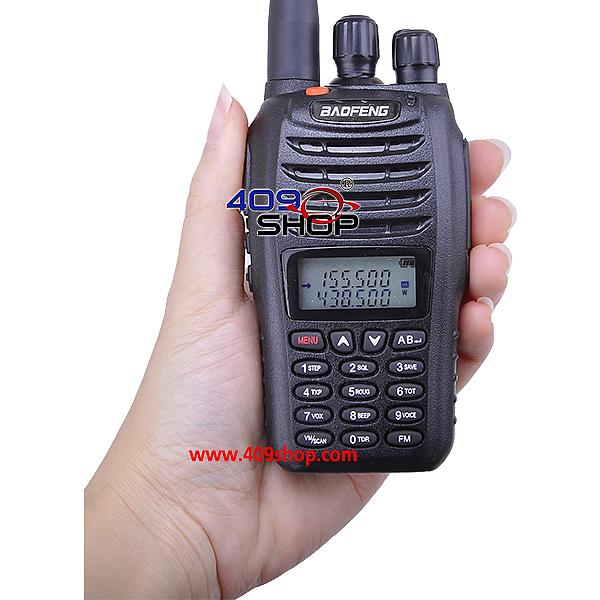

BAOFENG UV-B5  BLACK Dual Band Radio
136-174/400-480Mhz VHF/ UHF DUAL-BAND TWO WAY RADIO

Description:

• Frequency Range: 136-174 / 400-480MHz
• Dual-Band Display, Dual Freq. Display, Dual-Standby
• Output Power: 5/1Watts
• Priority Channel Scanning
• DTMF Encoded
• FM Radio Built=in
• Emergency Alarm
• Noise Reduction
• 1750HZ Relay Forwarding Confirmed


  Specifications:

  Item number	UV-B5
  General
  Frequency Range	65-108MHz(only commercial FM radio reception)
  	VHF:136-174MHZ, UHF 400-480HZ (TX/RX)
  Memory channels:	Up to 99 channels
  Frequency Stability	±2.5ppm
  Frequency Step:	5kHz/6.25kHz/10kHz/12.5kHz/20kHz/25kHz
  Antenna Impedance	50Ω
  Operating Temperature	-20 to +60 ‘C
  Supply voltage	Rechargeable Lithium-lon mAh 7.4V/1800
  Mode of operation	Simple or semi-duplex
  Dimension（W x H x D）	116.2 x 57.9 x 35.7 mm
  Weight	553g（including battery, antenna）
  Transmitter
  Output power	5W / 1W
  Modulation Mode	F3E
  Maximum deviation	＜±5kHz(Wide) / ＜±2.5kHz(Narrow)
  Spurious Radiation	＜7.5μW
  Adjacent Ch. power	≤-65dB / ≤-60dB
  Receiver
  Receiver sensitivity	0.2 μ v (at 12 Db SINAD)
  Intermediation	65dB
  Audio output	1W
  Adjacent channel selectivity	65dB
  Spurious response	65dB
  Receiving current	≤380mA









•

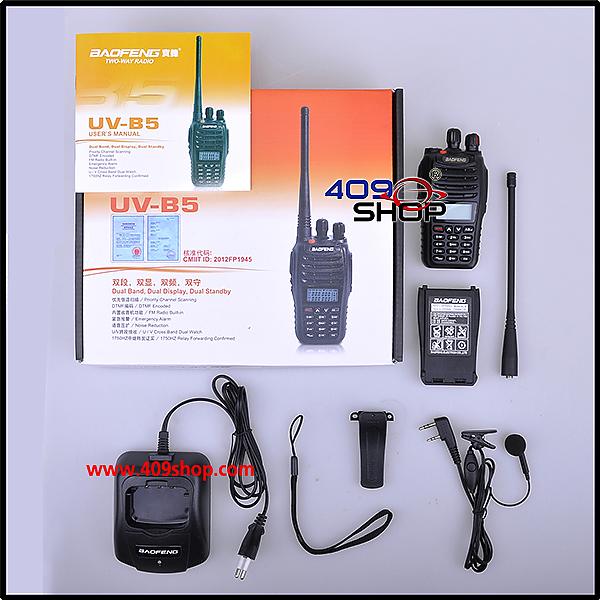

  Each Set PACKAGE CONTAIN 1 x BAOFENG UV-B5  BLACK Dual Band Radio (VHF136-174Mhz UHF 400-480Mhz) 1 x 7.4V 2000 mAh Li-ion Battery Pack 1 x SMA-F Antenna 1 x Belt Clip 1 x Handstrap 1 x ENG Manual 1 x Desktop Charger 1 x PTT Earpiece for free KI
