編號: MYTQ1V

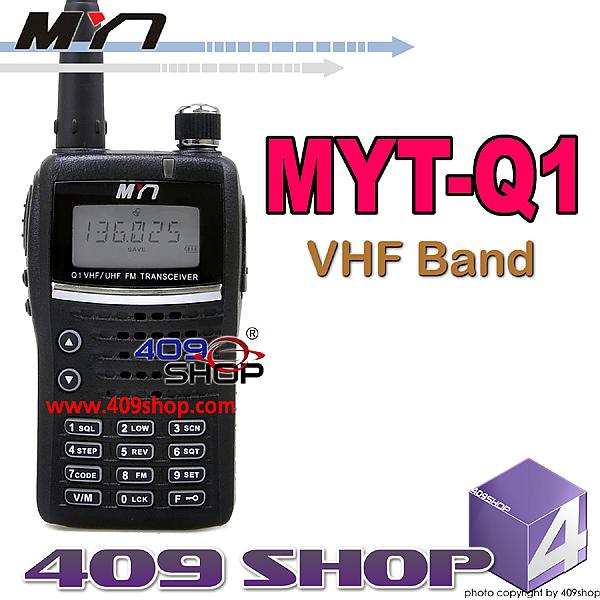

名稱: MYT MYT-Q1 (BLACK) VHF 136~174MHZ FM radio + Earpiece

優惠價: HKD 341.00
貨幣單位:: HKD
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了   0
  詳情


MYTQ1V



MYT MYT-Q1V (BLACK) VHF 136~174MHZ FM radio



Function :

  • CTCSS/DCS
  • Scan
  • Backlight
  • FM radio
  • Keypad lockout
  • High/low power selective
  • BCL function
  • Chinese and English voice prompt
  • FM radio
  • VOX function
  • TOT function

Technical specification :

model

MYT-Q1

General Specifications

Power Supply

7.5V DC ±20%

Operating Temperature

-25°C~ + 55°C

Number of Channels

128

Dimensions

120*57*30mm

Weight

215g



Transmitter Specifications

Frequencies - Full Band Split

VHF: 136MHz~174MHz

Frequency Stability(-25 to 55, 25 Ref)

2.5ppm

Power Output

5W

Modulation Limiting

±≤5KHz 25KHz

FM Hum & Noise

45dB 25KHz,

Conducted/Radiated Emission

-36dBm < 1GHz, -30dBm > 1GHz

Adjacent Channel Power

-65dB 25KHz,

Audio Response (300-3000Hz)

+3 ~ -3 dB

Audio Distortion

< 5%



Receiver Specifications

Frequencies - Full Bandsplit

VHF: 136MHz~174MHz

Sensitivity(12 dB SINAD)EIA

0.25μV 12.5KHz/25KHz typical

Intermodulation EIA

60 dB

Adjacent Channel Selectivity

65 dB 20/25KHz

Spurious Rejection

70 dB

Rated Audio

1W

Audio Distortion @ Rated Audio

5%

Audio Response (300-3000Hz)

+3 ~ -3 dB

Conducted Spurious Emission

-58 dBm<1 GHz, -47 dBm>1GHz

Photo will have chromatic aberration compared with the product



















Each Set PACKAGE CONTAIN

  • 1 x MYT MYT-Q1V (BLACK) VHF 136~174MHZ FM radio
  • 1 x 7.4V 1800mah Li-ion Battery Pack
  • 1 x VHF BAND SMA-Male Antenna
  • 1 x Belt Clip
  • 1 x ENG Manual
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x PTT Earpiece for free
  • 1 x WRIST STRAP
