編號: 1 x TH-UVF9UH
名稱: 1 x TYT TH-UVF9 Dual Band Radio 136-174/400-480Mhz對講機

優惠價: HKD 525.00
貨幣單位:: HKD
可以寄往: 香港

 0
  詳情


TH-UVF9UH

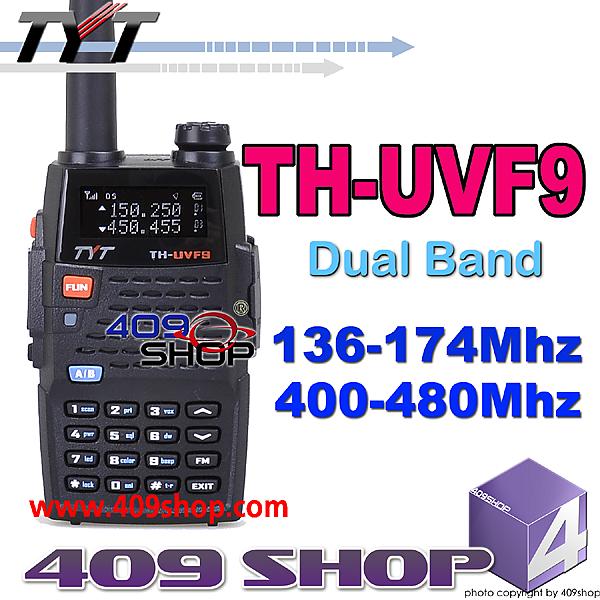

TYT TH-UVF9 Dual Band Radio 136-174/400-480Mhz

Main Feature:

  • Dual band, dual display, dual standby
  • A/B band independent operation
  • 2 x 128 channels storage and scanning
  • Shortcut menu operation mode
  • CTCSS/DCS and tone search scanning
  • Repeater shifts and ARS function
  • 25kHz/12.5kHz channel spacing switchable
  • High/middle/low TX power switchable
  • Multi working mode switchable
  • MSK/DTMF encode
  • FM radio and 25 stations storage
  • 0~9 grades VOX selectable
  • 1750Hz tone
  • PTT & ANI ID
  • Priority transmit selectable
  • 0~9 grades squelch level setting
  • LED display mode
  • Keypad beeper setting
  • Transmit over beeper
  • Dual watch/monitor
  • Receive saving function
  • Auto keypad lock
  • Power-on display
  • Battery power voltage
  • Power-on message
  • Repeater offset function
  • Channel name display and setting
  • VFO step function
  • Emergency Alarm
  • Busy channel lock-out(BCLO)
  • Transmitter time-out timer(TOT)
  • Voice companding

***This radio do not have SCR/2tone/5tone***

Specifications:



Item number THUVF9
General
Frequency Range 136-174MHz
400-480MHz
Channel No. 128 x 2
Frequency Stability ±2.5ppm
Antenna High gain antenna
Antenna Impedance 50Ω
Mode of operation Simple or semi-duplex
Dimension(W x H x D) 100 x 52 x 32 mm


Transmitter
Output power 4W / 0.5W
Modulation Mode 16kΦF3E / 11kΦF3E
Maximum deviation <5kHz / <2.5kHz
Spurious Radiation <7μW
Adjacent Ch. power ≤-65dB / ≤-60dB
Pre-emphasis characteristics 6dB
Current ≤1.6A(5W)
CTCSS/DCS deviation 0.5±0.1kHz / 0.3±0.1kHz
Intermediation sensitivity 8-12mv
Intermediation distortion <5%

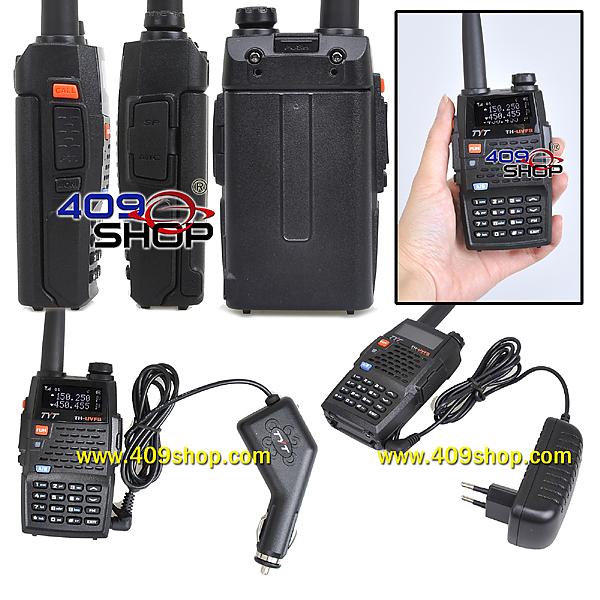

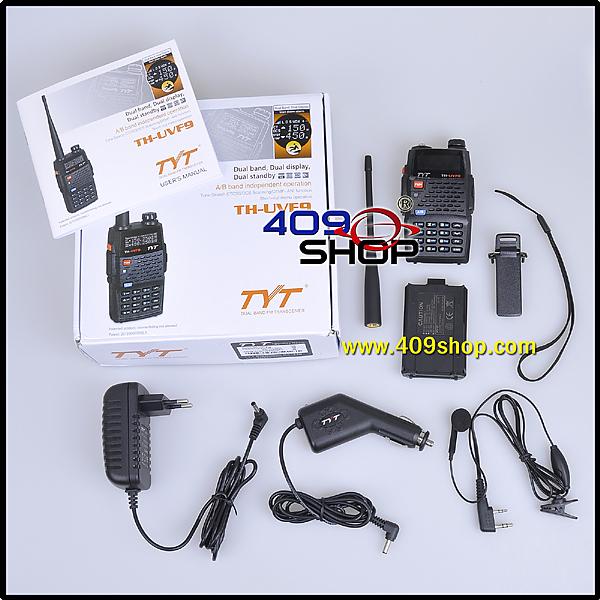

Each Set PACKAGE CONTAIN
  • 1 x TYT TH-UVF9 (136-174/400-480Mhz)
  • 1 x 7.4V 1600mah Li-ion Battery
  • 1 x SMA Dual Band Antenna
  • 1 x Belt Clip
  • 1 x ENG Manual
  • 1 x Car Charger
  • 1 x Wall PSU adaptor
  • 1 x PTT Earpiece for free
  • 1 x WRIST STRAP

KK


**本機語言是英語設定,無法轉為中文
***所有貨品更改規格,或與說明書不乎,不另外通知,以收貨標準為準.
