WM-9000V+

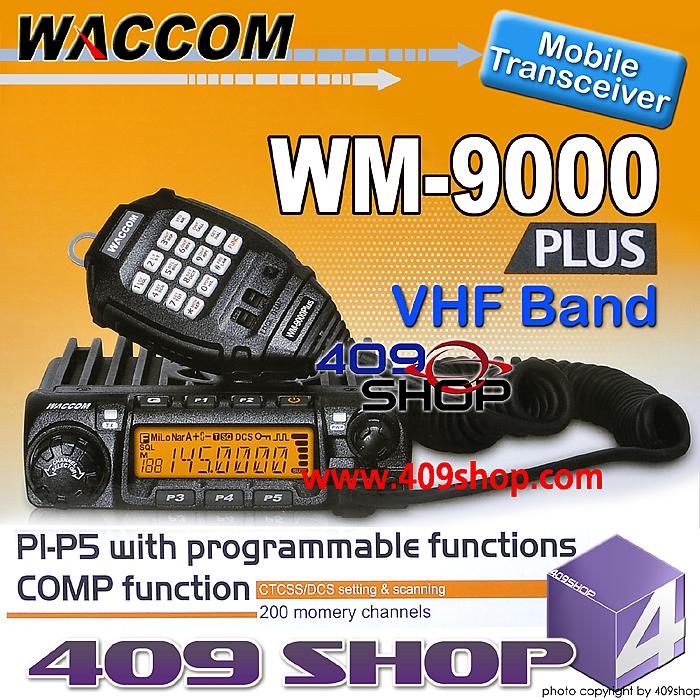

WACCOM WM9000PLUS VHF 136-174Mhz Mobile Radio with Scrambler

Main Funciton:

■ Frequency Range: VHF:136-174MHz
■ Output Power: VHF: 10W/25W/60W
■ 1750Hz Tone	■ CTCSS/DCS setting & scanning
■ 0-9 SQL grade setting	■ Frequency/Channel scanning
■ High/Mid/Low power selectable	■ Voice compander
■ Repeater offset shift	■ Keypad lock function
■ Contact book	■ Battery voltage display
■ DTMF/2 tone/5 tone	■ ANI ID
■ Remote kill/ stun/ activate/ revive	■ Emergency alarm
■ Wide/Narrow band setting	■ TX inhibit
■ Busy Channel Lock-Out	■ Channel name editing
■ Reverse frequency	■ Talk around
■ Scrambler (Optional)	■ Voice prompt
■ Time-out Timer	■ Auto Power off
■ VFO step setting:5/6.25/10/12.5/20/25/50kHz

Specifications:

Item Number	WM-9000
General
Frequency Range	136-174MHz
Channel Capacity	200
Channel Spacing	5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Frequency Stability	2.5ppm
Operating Temperature	-20℃ ~ + 60℃
Operating Voltage	13.8V DC ± 15%
Dimension(HxWxD)	145mm x190mm x47mm
Weight(with bracket)	1200g
Receiver
Reference Sensitivity	0.25V / 0.35V
Operating Bandwidth	60dB@12.5KHz /70dB@25KHz
Adjacent Channel Selectivity	60dB@12.5KHz 70dB@25KHz
Inter-modulation Rejection	≥60dB/ ≥65dB
Spurious Response Rejection	≥70dB
Rated Audio Response	+1-+3dB
Rated Audio Distortion	<5%
FM Hum&Noise	≥40dB@25KHz /≥45KHz @12.5KHz
Transmitter
RF Power	60W/25W/10W(VHF)
Frequency Modulation	11kΦF3E / 16kΦF3E
Modulation Distortion	<5%
FM Noise	≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power	≥60dB@12.5KHz /≥70KHz @25KHz
Audio Response	+1-+3dB
Audio Distortion	<5%
