所有商品 » 11.耳機-選類別 Type » -- 頭帶式降燥音 » MOTOROLA PIN M328+


編號: 4-083B+4-079+44-M328plus
名稱: Heavy duty Noise reduction Headset+Mini Din Plug 44-M328plus
優惠價: HKD 353.00
貨幣單位:: HKD
可以寄往: 香港
這拍賣已經不存在或者被管理員暫停了 0

詳情

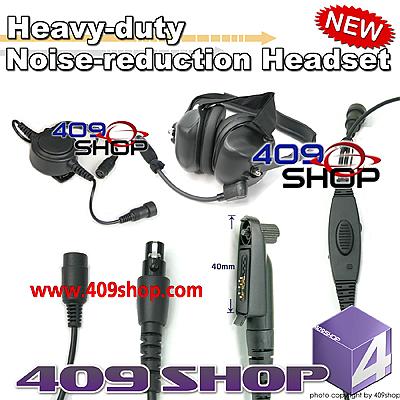

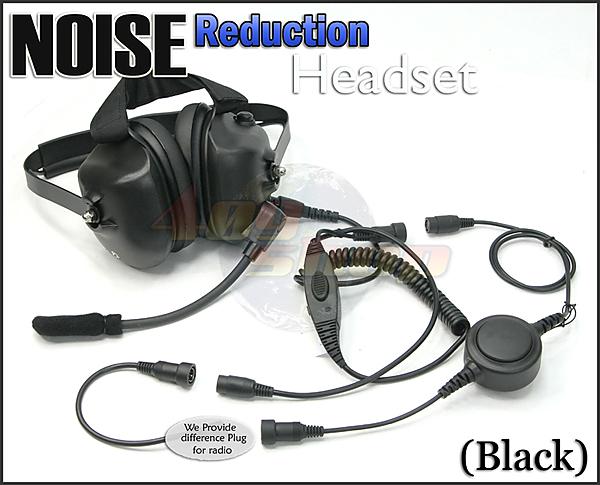

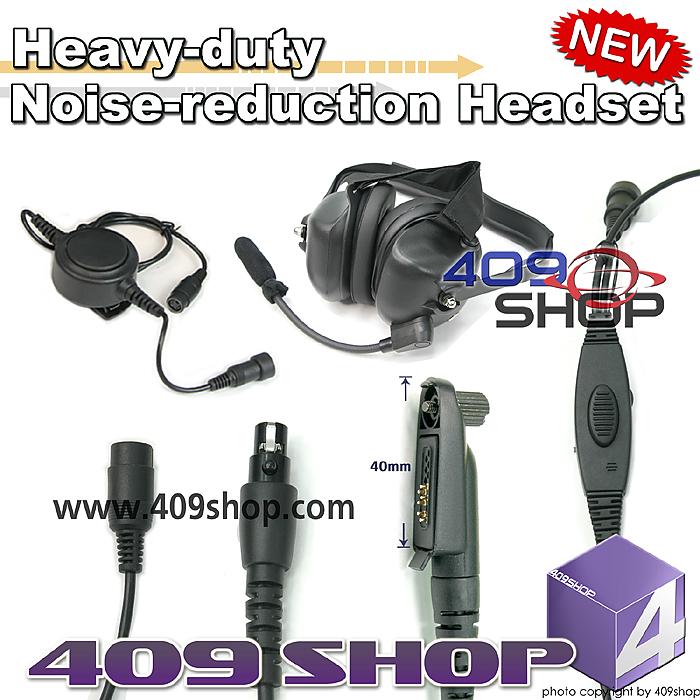

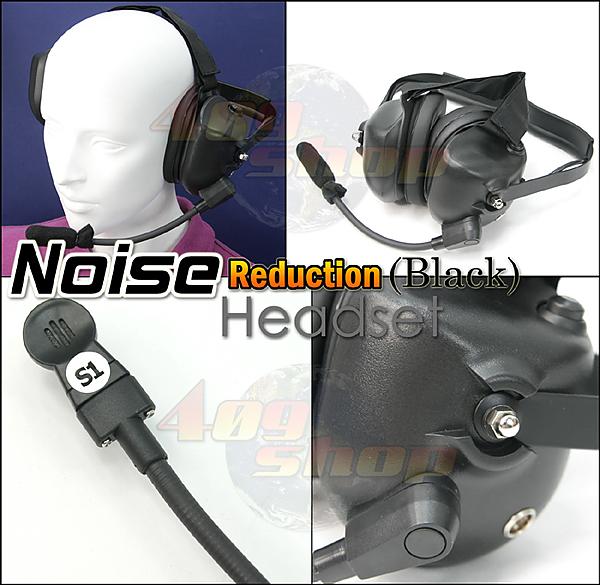

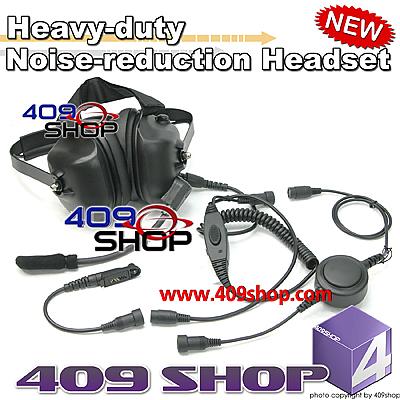

4-083B+4-079+44-M328plus :Heavy duty Noise reduction Headset (Black)
Fit for MOTOROLA GP328Plus GP338Plus GP344 GP388 (M328+ Plug)

This heavy-duty headset lives up to the demand under extremely high-noise environment in air-piloting and car-racing. It is best used in manufactory plants as well.

Built of Acrylonitrile Butadiene Styrene (ABS), the dome of the speaker is hard, durable and heat-resistant. Layers of sponge filter ensure high passive noise reduction level (NRR) of 24dB, which means a reduction of the amount of background noise reaching your ears. The three-layered thick earpad create a seal around each of your ear from the high noise environment.

The speakers are connected by a metal frame which crosses behind your head. Though the sturdy material of the speakers are a bit weighty, the Velcro taped headstraps with which you wear the headset relieves much of the weight and provides adjustable, comfortable wearing experience.

The electret microphone offers consistent and accurate transmission. It is connected to the headset with a strong metal frame which helps adjusting it to the most suitable position while not getting loose.

Here are some of the exceptional features of the heavy-duty headset:

Adjustable Velcro strap: the head strap is releasable and adjustable to different head sizes for comfortable wearing in long hour operations;
Fully tested under extreme environment: the headset has been tested in 50 degree Celsius and -25 degree Celsius; it has also passed through a humidity test under 95% humidity and 40 degree Celsius.
Super BIG PTT button: Easy to use when you are wearing hand gloves controlling aircraft or helicopter.

Specifications:

Technical Specifications of Speakers:
- Passive Noise Reduction Rating (NRR): 24dB;
- Impedance: 8Ω +/- 15% at 1.0v, 800Hz;
- Resonant Frequency: 200Hz +/- 20% (without baffle);
- Output SPL: 99dB +/- 3dB (at 1W Zxis Calculated);
- Frequency Response: 15kHz;
- Rated Frequency Range: 15kHz;
- Rated Power Input: 0.5W;
- Max Power Input: 0.6W;
- Distortion: 5% Max (rated power input 1000Hz);
- Load test: Noise 0.5W in 24 hours;
- Heat test: 50+/-2°C and 20-25% R.H. in 5 hours;
- Humidity test: 40+/-2°C and 90-95% R.H. in 5 hours;
- Cold test: -25 °C in 16 hours;
Technical Specifications of Microphone:
- Sensitivity: -43dB (f=1kHz, 0dB=1V/Par VS=4.5V, R=1.0kΩ);
- Output Impedance: 1.0 kΩ (f=1KHz);
- Current Consumption: 500μA (VS=4.5V, RL=1.0KΩ);
- Signal to Noise Ratio: 40dB;
- Decreasing Voltage: -3dB (VS=3.0V to 1.5V);
- Soldering heat shock: +/-3dB (350+/-5°C in 3 minutes);
- Storage temperature range: -40<°C~+80°C;
- Operation temperature range: -40<°C~+70°C;
- High temperature test: 55+/-2°C in 2 hours;
- Humidity test: 40+/-2°C and 93+2/-3% R.H. in 48 hours;
- Low temperature test: -20+/-3°C; Vibration test: requency range=10~30~10Hz; amplitude=0.55mm; time for each period=3 min.; total time=30min; frequency range=30~55~30Hz; amplitude=0.15mm; time for each period=3 min.; total time=30min

PACKAGE CONTAIN

1 x Heavy duty Noise reduction Headset (Black)
1 x Mini Din Plug for MOTOROLA GP328Plus GP338Plus GP344 GP388

M328+ Plug

- 適用於對講機型號:

For MOTOROLA : GP328Plus, GP338Plus, GP344, GP388,GL2000, EX500, EX600, EX600XLS.

For SURECOM / SURE : F22,F22+,F25 Zello PTT Walkie Talkie Mobile phone

For KIRISUN : PT567

All Plug detail
409shop-All-related-product

插頭選擇

BAOFENG 3.5mm	JINGTONG 2.5mm	KENWOOD/國產對講機	HYT

HYT	HYT	MOTOROLA	MOTOROLA

MOTOROLA	MOTOROLA	MOTOROLA	MOTOROLA

MOTOROLA	MOTOROLA	MOTOROLA	MOTOROLA

ICOM	ICOM	ICOM	ICOM

Maxon/Midland	Maxon/Midland	PUXING/NKT	Vertex Standard/YAESU

YAESU/Nanfone	YAESU	AHUAGO

類別選擇

類別PTT 按掣

對講機匹配型號

AW Plug

AW Plug

適用於對講機型號:

For AHUAGO : AW400W, GX-V10, GX-V5

B Plug

B Plug

適用於對講機型號::

For BAOFENG (3.5MM PIN) : UV-3R , UV-3R Mark II , UV-100 , UV-100 Mark II ,UV-200 ,UV-200 Mark II , BF-U3 , BF-U8

HT Plug

HT Plug

適用於對講機型號::

For MOTOROLA : HT-1000, HT-2000 and 8000/9000 Portable radios, HT1000, MTS2000, XTS2500, XTS3000, XTS3500,XTS5000, MT2000, JT1000, MTX8000, MTX9000, GP900, GP1200, MTX838

J Plug

J Plug

- 適用於對講機型號:

For JINGTONG : JT-208 JT-308 JT-2118 JT-3118

For Kington : KG-2118 KG-3118 KG-208 KG-308

For Kensung :KG-528 KG-628 KG-2118 KG-3118 KG-2288 KG-3288

K Plug

K Plug

適用於對講機型號::

For Baofeng : BF-490, BF-568,BF-666, BF-758S,BF-777S,BF-S88, BF-888S, BFF8-PLUS, BF-F9, BFK5,BF-UV82C,BF-V6,
BF-V85, BFUV-6 ,C150,GT-3, UV-3R PLUS, DM-5R,DM-5RPlus,UV-5111T,UV-5R, UV-5RA, UV-5RA-UU, UV-5RA-plus, UV-5RB, UV5RC, UV5RD, UV-5RE,UV-5RG, UV-5RQ , UV-5RT , UV-5S , UV-5RU, UV-B5, UV-B5PLUS,UV-B6,UV-82 ,UV82HP

For Baojie : BJ-UV88 , BJ-UV99

For Feidaxin : FD-A380, FD-55, FD-56, FD58, FD-68, FD-98, FD-278, FD-288, FD-289,FD-390, FD-760, FD-780 , FD-790, FD-850, FD-880, FD-890(FD-288, FD-268-Earpiece only)

For Galaxy : G6700, G-6800,

For HYT : TC-268, TC-268S, TC-270, TC-270S.,TC-368,TC-368S ,TC-268,TC-268S ,TC-510 ,TC-700 etc..

For Harico : GT-488 ,IC-7000,P8668,P-73

For Huitong : HT910 , HT911

FOR KIRISUN : PT558 , PT560

FOR JINGTONG : JT-988, JT-N98

FOR Kenwood : TK-240, TK-250, TK-255, TK-260, TK-260G, TK-270, TK-270G,TK-272G, TK-278, TK-278G, TK-340, TK-349, TK-350, TK-353,TK-360, TK-360G, TK-370, TK-370G, TK-373G, TK-378, TK-378G,TK-430, TK-431, TK-715, TK-2100, TK-2102, TK-2107,TK-2118, TK-2160, TK-31

For Linton : LT-2188, LT-2268, LT-2288, LT-3188,LT-3260, LT-3268,LT-3288,LT-5288,LT-6000, LT-6100,LT-6100plus,LT-6188, LT-6288, LT-6600, LT-9000, LT-9800

For MYT : MYTQ1V , MYTQ1U

For MIDLAND: CT 200,MIDLAND CT 210,MIDLAND CT 400,MIDLAND CT 410,MIDLAND CT 710,MIDLAND CT 790,MIDLAND CT 890,MIDLAND G 10,MIDLAND G 11S,MIDLAND G 11V,MIDLAND G 14

For NANFONE : NF-669

For PUXING : PX-325, PX-328, PX-333, PX-358, PX-555,PX-666, PX-728, PX-729, PX-777,PX-888, PX-888K, PX-V6

For RONGSHEUNG : RT-626,RS-958,RT-966, RS-999, UV-8R

For RONSON : RT-6000, RT-6100, RS-LY8, RS-H86

For SURECOM : S-UV-5R ,SJ-409

For TYT : TH-446, TYT-777, TYT-800, TYT-888, TYT-900, TH-F2, TH-F5, TH-F7, TH-F8,TH-UVF8D, TH-UVF1,TH-UVF9
MD-380,MD-380G,MD-446,MD-390

For QUANSHENG:TG-2AT, TG-22AT, TG-25AT, TG-42AT, TG-45AT, TG-46AT, TG-6A, TG-K4AT,TGK4ATUV,TG-UV2

For WEIERWEI : V-1000, VEV-3288, VEV-3288S, VEV-V16, V8

For WACCOM : WUV-5R, WUV5RE-PLUS , WUV5R-UU , WUV-6R

For WOUXUN : KG-659, KG-669, KG-679, KG-689, KG-699, KG-801, KG-816, KG-818, KG-819,KG-833, KG-889, KG-UV6D , KG-UVD1P,KG-UV8D ,KG-UV9D

For QYT : UV9A-UU

MT Plug

MT Plug

適用於對講機型號::

For HYT :TC-1688，TC-320，TC-310
For MOTOROLA TALKABOUT :
*TKLR Series: TKLR T3, TKLR T4, TLKR T5, TLKR T6, TLKR T7, TLKR T8 TLKR T9
*EM Series: EM1000, EM1000R, EM1020R,
*MR Series:MR350R,MR355R, MR356R
*MH Series: MH230R
*MB Series: MB140R
*MC Series: MC220R, MC225R, MH230R,
*MJ Series: MJ270R
*XTR446,XTL446,PMR446
*Spirit GT / GT plus, FR50, FR60,
*SX500, SX620R, SX700, SX709R, SX750, SX800, SX900, SX920R,
*FR50, F60, FV200,FV200R, FV200AA, FV300,FV500,FV500R, FV500AA , FV600, FV700, FV750, FV800, *T270, T280, T289, T4000, T4512,, T7000, T4800, T4800AA, T4900, T4900AA, T5000, T5100, T5000AA,T5146, T5200, T5300, T5320, T5400, T5410, T5412,
T5420, T5422, T5500, T5500AA,T5512, T5522, T5532, T5550, T5600, T5620, T5700, T5710, T5720, T5725, T5800, 20,T5822,T5900,
T5920, T5950, T5950AA , T6000,T6200, T6210, T6212,T6220, T6222, T6250, T6300,T6300AA,T6310, T6312,T6320,T6322,T6400,
T6412, T6500, T6510, T6550, T6512, T6552R,T6500AA, T7000,T7100R, T7150R, T7200, T7200AA, T7400R, T7400AA, T7450R, T7100, T7150, T7200, T7400, T7450, T8000, T8500, T8550, T9000,T9500, T9550, T9500R,
*T9500XLR, T9550XLR, T9580XLR, T9650, T9680 etc.
For MYT : MYTQ2V , MYTQ2U
For RONSON : RT-88
For TYT : TH-2R , TH-UV3R
For AMYTEL : AW1080T, AW1010T

M Plug

M Plug

適用於對講機型號:

Motorola mode:

CLS Series: CLS1110, CLS1410, CLS1413, CLS1450, CLS1450C, CLS1450CB, VL50

CP Series: CP88, CP040. CP100, CP110, CP125, CP150, CP200, CP250, CP300

DTR Series: DTR410, DTR550, DTR610, DTR650

GP Series:GP2000 , GP2100, GP300, GP308, GP68, GP88, GP88S

SP Series: SP10, SP21, SP50+, SP50

CT Series: CT150, CT250, CT450, CT450LS

XIR Series: XIRP3688

XTN Series: XTN446, XTN500, XTN600

XTN XV Series: XV1100, XV2100, XV2600, XV4100

XTN XU Series: XU1100, XU2100, XU2600, XU4100

XTN AX Series:AXV5100, AXU4100

Spirit Series: SV10, SV11, SV11D, SV21, SV12, SV22, SV22C, SU210, SU22, SU22C, SU220 VHF / UHF Spirit, Spirit Pro, Spirit Pro+, Spirit HP 10

Spirit MU Series: MU11, MU11C, MU11CV, MU12, MU12C, MU12CV, MU21C, MU21CV, MU22CVS, MU24CV, MU24CVS, MU24CVST

Spirit MV Series: MV11, MV11C, MV11CV, MV12, MV12CV, MV21C, MV21CV, MV22CV, MV24CVS

PRO Series: PRO1150, PRO2150, PRO3150

P Series: P040, P080, P1225, P1225LS

Other Series: GTI, GTX, LTS2000, VL130, PMR446, ECP100, Mag One BPR400, EP450, AU1200, AV1200

RDX Series: RDV-5100, RDV2020, RDU2020, RDU2080DD, RDU4100, RDU4160D, RDV2080D, RDV5100

AUDIO Adaptor :HLN9716, HLN9482A

Blackbox Series: Blackbox-V, Blackbox-U

FOR Feidaxin : FD-150A, FD-160A, FD-450A, FD-460A

FOR PUXING: PX-508U , PX-999

FOR KIRISUN : PT578U , S760U , S765U , S780U , S785U

M328

M328 Plug

- 適用於對講機型號:

FOR MOTOROLA :
GP140, GP320, GP328, GP329, GP338, GP339, GP340,GP360, GP380, GP640, GP680, GP1280,
MTX850,MTX850LS, MTX900, MTX950, MTX8250,MTX8250LS, MTX9250,
HT750, HT1250, HT1250LS, T1550XLS,
PR860, PRO5150, PRO5350, PRO5450, PRO5550, PRO5750, PRO7150, PRO.PTX700
MTP700 MTP750 PTX760 PTX780 Tetra MTP810EX

M328PLUS

M328+ Plug

- 適用於對講機型號:

For MOTOROLA : GP328Plus, GP338Plus, GP344, GP388,GL2000, EX500, EX600, EX600XLS.

For SURECOM / SURE : F22,F22+,F25 Zello PTT Walkie Talkie Mobile phone

For KIRISUN : PT567

M7 Plug

M7 Plug

- 適用於對講機型號:

Motorola MOTOTRBO Radio APX series:
APX 1000, APX 2000, APX 3000, APX 4000, APX 4000 P25, APX 4000XH, APX 6000, APX 6000 P25, APX 6000XE P25, APX 7000, APX 7000e, APX 7000L, APX 7000SE, APX 7000XE P25, APX 8000, APX 8000XE, SRX 2200 Combat Radio

Motorola MOTOTRBO Radio DGP Series:
DGP 4150, DGP 4150+, DGP 5050, DGP 5050e, DGP 5550, DGP 5550e, DGP 6150, DGP 6150+, DGP 8050, DGP 8050e, DGP 8050e ELITE, DGP 8550, DGP 8550e, DGP 8550EX

Motorola MOTOTRBO Radio DP Series:
DP 3400, DP 3401, DP 3600, DP 3601, DP 4400, DP 4400EX, DP4401, DP 4600, DP 4601, DP 4800, DP 4801

Motorola MTP Series:
MTP850 S, MTP830 S

Motorola MOTOTRBO Radio XiR Series:
XiR P8200, XiR P8208, XiR P8260, XiR P8268

Motorola MOTOTRBO Radio XPR Series:
XPR 4500, XPR 6000, XPR 6100, XPR 6300, XPR 6350, XPR 6380, XPR 6500, XPR 6550, XPR 6580, XPR 7350, XPR 7350e, XPR 7380, XPR 7380e, XPR 7550, XPR 7550e, XPR 7580, XPR 7580e

M8 Plug

M8Plug

- 適用於對講機型號:

Motorola MOTOTRBO DEP Portable Radio: DEP 550, DEP 570
Motorola MOTOTRBO DP2000 Digital Portable Radio: DP2400, DP2600, DP3441
Motorola XPR 3000/3000e Series: XPR 3000, XPR 3300, XPR 3500, XPR 3000e, XPR 3300e, XPR 3500e
Motorola TETRA Portable Terminals: MTP3100 TETRA, MTP3150 TETRA , MTP3200 TETRA , MTP3250 TETRA , MTP3500 TETRA, MTP3550 TETRA
Radio Portatil MOTOTRBO DEP 8050 Elite
Motorola MOTOTRBO XiR P6600, XiR P6600i, XiR P6608, XiR P6620, XiR P6628, XiR E8600, XiR 8608

MM/F2 Plug

MM/F2Plug

- 適用於對講機型號:

FOR Nextel (Motorola iDen) Falcon : i205, i265, i275, i305, i315, i325, i355, i530, i605, i710,i730, i733, i736, i830, i836, i850,i860, i930

M9 Plug

M9 Plug

- 適用於對講機型號:

Earphone Connection COUGAR Surveillance Earpiece for Motorola

Compatible with Motorola SL1K, SL4000, SL7550

MPD680 Plug

MMPlug

- 適用於對講機型號:

HYTERA :HYT PD600，PD680，X1E,X1

PD500

HYT TC-500PLUG 適用於對講機型號:

FOR HYT Hytera : TC300 ,TC-446S TC-500, TC-518, TC-600, TC-610, TC-618 ,TC-620, TC-700, TC-700ExPLUS,TC-900, TC-1600,TC-2110 , HYT850, HYT2100,TC-508 TC-505

MPD780 Plug

PD-780 PLUG - 適用於對講機型號:

Compatible with:

HYT (Hytera): PD700, PD700G, PD780, PD790, PD780G, PD782, PD790Ex, PT580, PT580H

PUXING R

R Plug - 適用於對講機型號:

FOR PUXING : PX-A6, PX-2R
FOR NKT : NKT-R3

Icom S

S Plug - 適用於對講機型號:

FOR ICOM : IC-T7H ,IC-W32A,IC-F3,IC- F3S,IC- F4, IC-F4S,IC- F4TR,IC-F10, IC-H2,IC- H6,IC- J12, IC-M5, IC-U12, IC-U16, IC-4008, IC-4088A

Cobra(All 2-Pin) FOR Motorola Talkabout : 200, 250 Distance, Distance DPS

FOR Ritron Patriots Series : RTX, SST, Jobcom, JMX, MBX, JMX-102,JMX-141, JMX-144,JMX-146,JMX-152,
JMX-441, JMX-444,JMX-446, JMX-452, Patriot SST plus

FOR Motorola : 5500

FOR Vertex : VX200-VX500- VX510-VX52OUD

ICOM SL

SL Plug - 適用於對講機型號:

FOR ICOM :
IC-F3G,IC- F3GS, IC-F4G, IC-F4GS, IC-F11, IC-F11S,IC- F14,
IC- F14 S, IC-F15, IC-F14/24, IC-F21, F21S, F22, F31, F33, F43 , ICOM IC-V8

ICOM S6

S6 Plug - 適用於對講機型號:

FOR ICOM :

F11, F21, F14, F14S, F24, F24S, F25, F33G, F3Gs,
F43G, F43TR, IC-F3000, F3001, F3002, IC3011, F3011,
F3021, F3021S, F3021T, IC F-3026 S / F-4000, F4001,
F4002, F4011, F4021, F3021S, F4021T, F-4026

ICOm S8

S8 Plug - 適用於對講機型號:

FOR ICOM :
IC-F30GT, IC-F30GS, IC-F31GT, IC-F31GS, IC-F40GT, IC-F40GS, IC-F41GT, IC-F41GS
IC-F50, IC-F51, IC-F60, IC-F61, IC-F70, IC-F80,IC-F4163T/S
IC-F3060, IC-F4060, IC-F3161T/S, IC-F4161T/S, IC-F3162T/S, IC-F4162T/S, IC-F3163T/S,
IC-M87, IC-M88

S2 Plug - 適用於對講機型號:

FOR Midland - All 2-Pin : 75-785, 75440, GTX-200, GTX-250, GTX-300,FOR Maxon : SP14, SP130, SP120, SP130, SPI140, SP300,
SP310, SP320, SP330, SP340, SL25, SL55, SL55+, SL100K

GTX-325, GTX-400, GTX-444, GTX-450,

S2 L

S2L Plug - 適用於對講機型號:

FOR Maxon : SP14, SP130, SP120, SP130, SPI140, SP300,
SP310, SP320, SP330, SP340, SL25, SL55, SL55+, SL100K

FOR Midland - All 2-Pin : 75-785, 75440, GTX-200, GTX-250, GTX-300,
GTX-325, GTX-400, GTX-444, GTX-450,

Motorola V

V Plug - 適用於對講機型號:

FOR MOTOROLA : Visar series

Y PLUG

Y Plug - 適用於對講機型號:

FOR YAESU VX : VX-1R, VX-2R, VX-3R, VX-5R VX-10, VX-14, VX-17 VX-110, VX-150, VX-130, VX-131, VX-132, VX-160,VX-168,VX-180, VX-210, VX-210A, VX-210, VX-210A, VX-300, VX-400, VX-410 VX-420, VX-351, VX-354, VX-410, VX-420, VX-427

FOR YAESU FT :FT-10R FT-11 FT-11R ,FT-50, FT-60, FT-10R, FT-40R, FT-50R,FT-51R, FT-60R

FOR YAESU VXF : VFX-1 VFX-2 VFX-20

FOR SCONOV : TM-800 , TM-810

FOR Motorola : 5500

FOR HUITONG : HT222 , HT333

FOR Nanfone : NF-6600 , NF-369

Y4 PLUG

Y4 Plug - 適用於對講機型號:

For Vertex Portables:

VX-110, VX-130, VX-131, VX-132, VX150, VX-160 VX-168 VX-180,
VX-210 VX210A VX-228 VX-230 VX-231 VX-298
VX-350 VX-351 VX-354
VX-400, VX-410, VX-420, VX-414, VX-418, VX-417, VX424, VX427, VX-428, VX-429,VX-450 series: VX451, VX454, VX459
EVX530 series: EVX531 EVX539 EVX534

Y7 PLug

Y7 Plug - 適用於對講機型號:

FOR YAESU :
FT-252,FT-257,FT-270 ,FT-277 ,HX-471,VX-120 ,
VX-120E,VX-127,VX-127E,VX-170 ,VX-170E,VX-177 ,
VX-177E,VX-220,VX-270,VX-300,VX-460,VX-6E ,VX-6R,
VX-6R,VX-7E,VX-7R,VXA-300,VXA-700,VXA-710
